$949.99
Code: GW-VW-2546B-01
MPN: 2546B-01

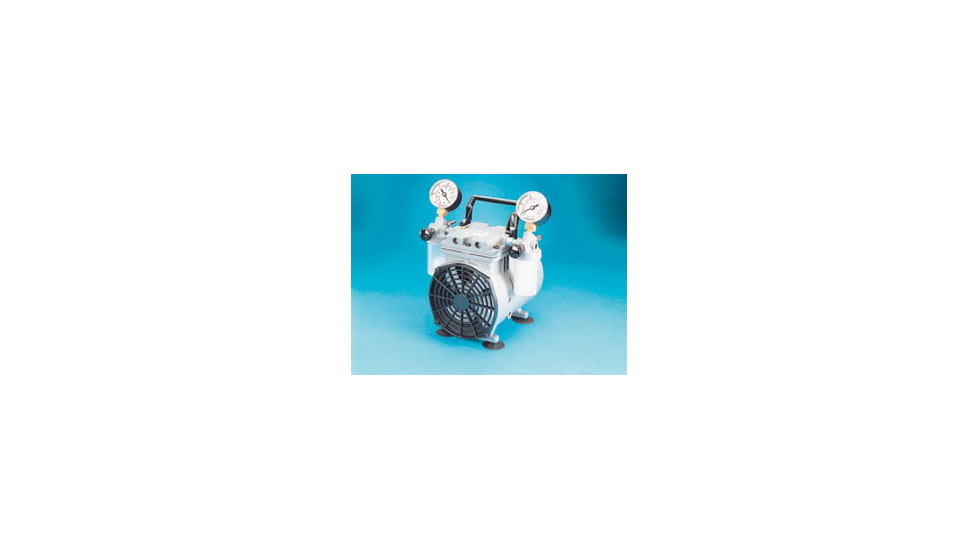

Gardner Denver Welch PUMP,DRY Vacuum Std Duty 2546B-01 Product Info

Gardner Denver Welch PUMP,DRY Vacuum Std Duty 2546B-01 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Gardner Denver Welch PUMP,DRY Vacuum Std Duty 2546B-01 / 80077-612 is part of a wide selection of Gardner Denver Welch Laboratory vacuum pumps. Combining excellent quality with an affordable price, the Gardner Denver Welch PUMP,DRY Vacuum Std Duty 2546B-01 / 80077-612 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Laboratory vacuum pumps please do not hesitate to contact our customer service for further guidance.

These oil-free pumps are ideal for filtering, desiccating, cell harvesting, vacuum blotting, aspirating, degassing, and distilling. They are suited for applications requiring a rough vacuum of 648 to 752mm Hg (251/2 to 2919/32" Hg) and free air displacement of up to 201L/min. (7.1cfm). They are available in standard and chemical-duty models to accommodate pumping of a variety of vapors and gases.

Standard-duty pumps are protected from moisture and corrosion and use a WOB-L piston pumping mechanism. A liquid trap attached to each pump traps water if it is accidentally drawn into the line. Discharge air noise is muffled with a silencer. Vacuum gauge included.

Chemical-duty pumps utilize corrosion-resistant PTFE on all wetted surfaces, allowing the pumps to withstand aggressive solvent, base, and acid vapors. Pumps also feature Kalrez*/Chemraz* elastomer valves. Discharge air noise is muffled with silencer.

The 115V, 60Hz maintained on/off foot switch (14233-684) allows hands-free operation of pumps. Made of durable black painted steel, the switch features a nonskid base and foot treadle pads to ensure secure footing during repeated operations. Comes with a 2.4m (8') cord.

Note: Standard-duty pumps are not recommended for pumping acid, base, or organic vapors.

Specifications for Gardner Denver Welch PUMP,DRY Vacuum Std Duty 2546B-01:

Free AirDisplacement,L/min. (cfm): 45 (1.6)
MaximumVacuum,mm Hg (in. Hg): 701 (27.6)
 Ultimate Pressure,mbar (Torr): 80 (60)
  HP: 1/4
 Tubing Needed,I.D., mm (in.): 7 (1/4)
 Dimensions,L x W x H, cm (in.): 25.4 x 19.1 x 22.9 (10 x 71/2 x 9)
ShippingWeight,kg (lbs.): 8.4 (18.5)
  Welch No.: 2546B-01
Unit: Each
Properties:
Electrical: 115V, 60Hz, 1Ph
