Code: AM-9HL-L3-M5
MPN: L3-M5
VWR SIEVE, PREC.FOR L3P, US#5, 5UM. L3-M5 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. VWR SIEVE, PREC.FOR L3P, US#5, 5UM. L3-M5 / 57333-786 is part of a wide selection of VWR Test sieves. Combining excellent quality with an affordable price, the VWR SIEVE, PREC.FOR L3P, US#5, 5UM. L3-M5 / 57333-786 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Test sieves please do not hesitate to contact our customer service for further guidance.

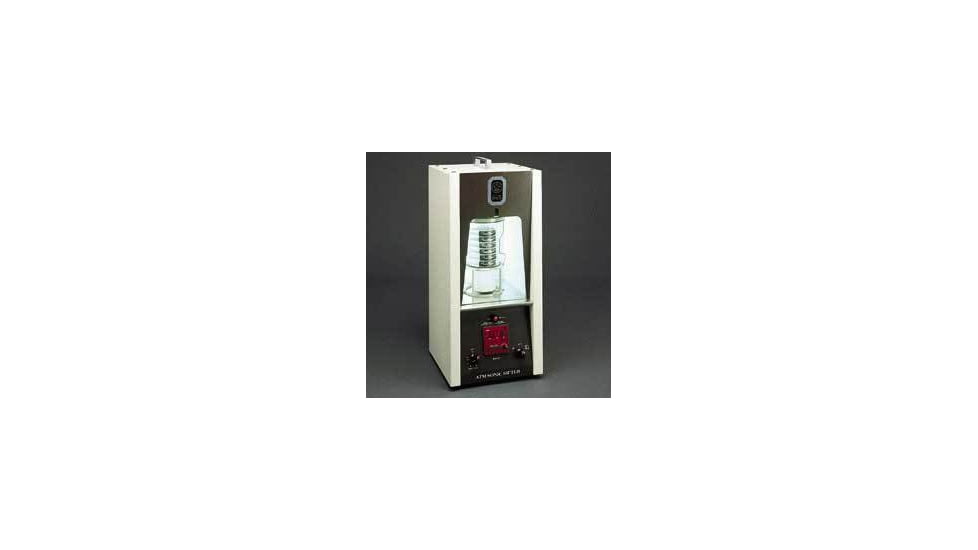

Versatile sieving instrument is designed for fast, accurate particle separations. Ideal for ultra-fine particle separation by the dry sieve method over a range of 5µm to 5.66mm. Typical materials for analysis include plastics, mineral products, chemicals, pharmaceuticals, cosmetics, seeds, forestry products, fertilizers, foods, powdered metals, detergents, sugar and cement.
Accommodates up to 6 U.S. standard sieves or 3 precision sieves (sold separately). Sieving action can be varied for different densities and textures of materials. Utilizes two sieving motions: a vertical oscillating column of air (which prevents particle attrition and screen wear), and a repetitive mechanical pulse (which helps reduce sieve binding and rearranges clustered particles formed by agglomeration).
Virtually noiseless in operation with a maximum of about 70dB at 6 feet. May be timed automatically to ensure repeatable results. Horizontal pulse accessory (57333-750) produces a tapping action to help obtain repeatable test results.
U.S. standard sieves have stainless steel mesh with a clear acrylic frame. Dimensions: 8.9O.D.x7.6I.D.x1.6H cm (31/2x3x5/8"). Precision sieves have electroformed nickel mesh with a clear acrylic frame. Dimensions: 8.9O.D.x7.6I.D.x3.2H cm (31/2x3x11/4"). All sieves meet current sieve specifications of ASTM and ISO.
Description: | - |
 : | 5 µm (0.0002") |
Advantech No.: | L3-M5 |
Unit: | Each |
Properties: | |
Operating Temperature: | -17 to 49°C (1 to 120°F) |
Operating Humidity: | 0-100% RH |
Electrical: | 120V, 60Hz, 100W |
Dimensions: | 25W x 31D x 61H cm |
Weight: | 20 kg (43 lbs.) |
