Code: VO9-9II-TYPE-G-HD
MPN: TYPE G-HD

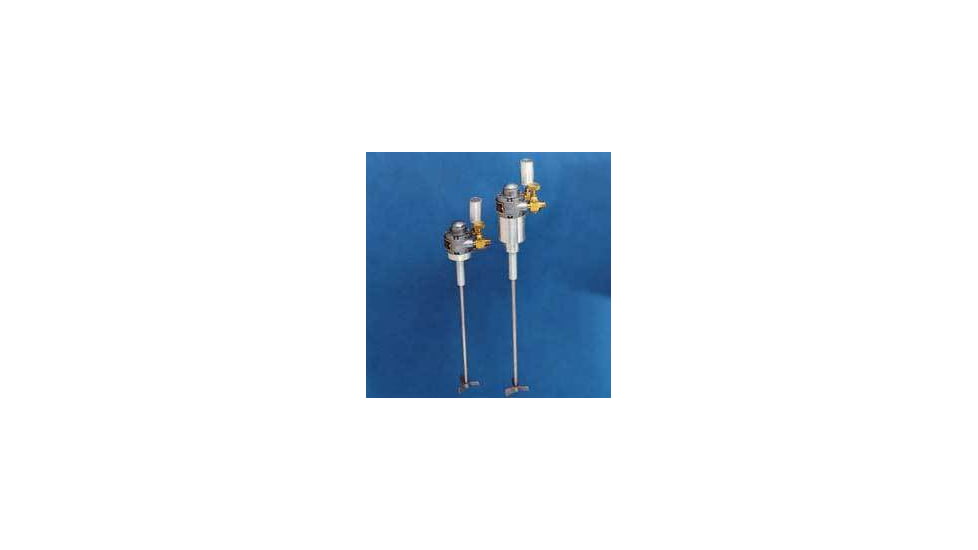

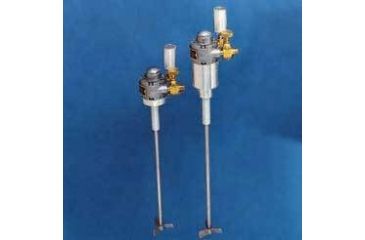

Arrow Engineering Stirrer Air 50-1200RPM Hvyduty TYPE G-HD is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Arrow Engineering Stirrer Air 50-1200RPM Hvyduty TYPE G-HD / 59025-104 is part of a wide selection of Arrow Engineering Overhead stirrers. Combining excellent quality with an affordable price, the Arrow Engineering Stirrer Air 50-1200RPM Hvyduty TYPE G-HD / 59025-104 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Overhead stirrers please do not hesitate to contact our customer service for further guidance.
Explosion-proof stirrers for safe mixing of all types of solvents, lacquers, and volatile chemicals. Needle valve allows user to vary mixing speed. A special muffler ensures quiet operation. A number of non-reversible models are available for high speed, general purpose, and high torque mixing applications.
Model A - Low-cost, light-duty stirrer ideal for stirring all types of solvents, lacquers, oils, synthetics, and chemicals. Temperature range: ambient to 120°C (250°F).
Model A-5 - Similar to Model A, but 1/2 hp motor provides more power and is recommended for larger batches. Temperature range: ambient to 120°C (250°F).
Model G - General purpose stirrer specially designed for use with more viscous materials. Provides speed with power. A more constant speed is attained through a 7 to 1 gear reduction, thus lowering speed fluctuations due to changes in air pressure.
Model G-HD - Similar to Model G but has as a heavy-duty gear reduction unit for continuous agitation of highly viscous materials.
Model G-5 - Similar to Model G but comes with heavy-duty gear reduction unit. The 1/2 hp motor provides added power for continuous agitation of highly viscous materials.
Model GG - A high torque, low rpm stirrer specifically designed to maintain constant low speed.
 Description: | Model G-HD, Heavy-Duty |
 Power: | 1/3 hp |
SpeedRange, rpm: | 50-1200 |
Batch Size,Water (L): | 50 |
Max. Torque,in.-lbs.: | 18 |
ShippingWt., kg (lbs.): | 2.7 (5.9) |
AirInput, psi: | 30 to 80 |
 Gear Ratio: | 7 to 1 |
Unit: | Each |
