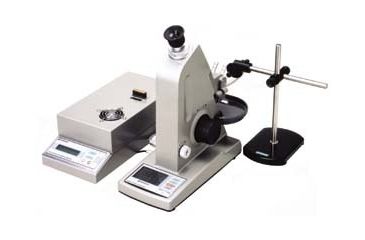

Atago Refractometer Digital Abbe 1414-DR-M4 w/ Free Shipping

Atago Refractometer Digital Abbe 1414-DR-M4
Atago Refractometer Digital Abbe 1414-DR-M4
1 of 1 images
Atago Refractometer Digital Abbe 1414-DR-M4

Tap Tap to Zoom

Code: W4-9JA-1414-DR-M4

MPN: 1414-DR-M4

$45,399.00

Product Info for Atago Refractometer Digital Abbe 1414-DR-M4

Atago Refractometer Digital Abbe 1414-DR-M4 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Atago Refractometer Digital Abbe 1414-DR-M4 / 47752-790 is part of a wide selection of Atago Bench refractometers or polarimeters. Combining excellent quality with an affordable price, the Atago Refractometer Digital Abbe 1414-DR-M4 / 47752-790 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Bench refractometers or polarimeters please do not hesitate to contact our customer service for further guidance.image

These refractometers measure refractive index or Abbe number (nud or nue) at different wavelengths ranging from 450-1100nm for model DR-M2 and DR-M4 and from 450-1550nm for model DR-M2/1550 and DR-M4/1550. The units display measurement results on the display.

For measurement at wavelengths ranging from 681-1100nm using models DR-M2 and DR-M4, the optional near infrared ray viewer is required. Contact your VWR representative for information.

DR-M2DR-M4DR-M2/1550DR-M4/1550
Measurement Range (nD),
Wavelength (nm),
450:1.3277-1.73791.5164-1.91641.3278-1.73791.5164-1.9164
589:1.3000-1.71001.4700-1.87001.3000-1.71001.4700-1.8700
680:1.2912-1.70111.4558-1.85571.2913-1.70111.4558-1.8557
1100:1.2746-1.68431.4304-1.83031.2746-1.68431.4304-1.8303
1550:--1.2594-1.66901.4215-1.8214
Minimum Indication:0.0001 in refractive index, 0.1 in Abbe number
Measurement Accuracy:±0.0002 in refractive index (with the attached test piece at 589 nm)
Wavelength Range:450 to 1100 nm (with interference filters)
Measurement Temperature Range:5 to 50°C (41 to 122°F)
Electrical:100-240V, 50/60Hz
Dimensions,
Refractometer:13W x 29D x 31H cm (51/8 x 117/16 x 121/4")
Light Source Unit:15W x 33D x 11H cm (515/16 x 13 x 45/16")
Weight,
Refractometer:6 kg (13.2 lbs.)
Light Source Unit:3 kg (6.6 lbs.)

Specifications for Atago Refractometer Digital Abbe 1414-DR-M4:

Model:DR-M4
Atago No.:1414-DR-M4
Unit:Each
