Code: B2-92C-EME60100CEBX
MPN: EME60100CEBX

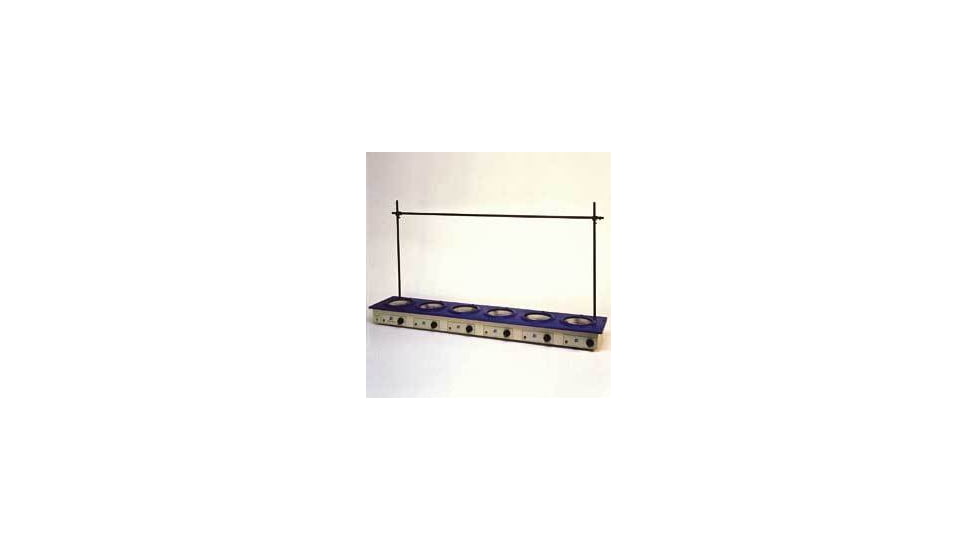

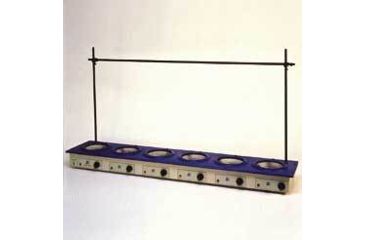

Barnstead Extraction APPARCSA6UNIT 100ML EME60100CEBX is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Barnstead Extraction APPARCSA6UNIT 100ML EME60100CEBX / 33749-299 is part of a wide selection of Barnstead Crude fiber extractors. Combining excellent quality with an affordable price, the Barnstead Extraction APPARCSA6UNIT 100ML EME60100CEBX / 33749-299 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Crude fiber extractors please do not hesitate to contact our customer service for further guidance.
Specially designed for Soxhlet and other extraction tests. Choose 3 or 6 recesses to accommodate four different sizes of glassware. Individual solid state heating control enables liquids with different boiling points to be heated in adjoining recesses. External surfaces are PTFE coated to provide easy cleaning and chemical resistance. A safety ground screen encloses each heater; heater cartridge can be easily replaced. Maximum element temperature: 450°C (840°F). With indicator lights for power and heater. Operates on 115V, 50/60Hz. Three 1.27cm (1/2") diameter support rods included; 6-recess units also have two connectors. Support rod clamps are built into each unit.
Some sizes also available with stirring module. Three-recess models have a single controller; 6-recess models have two controllers. Stirring speeds are continuously variable from 50-1000 rpm. A PTFE coated stirring bar is provided for each recess. With additional indicator light for stirrer. For 230V unit, contact your VWR representative.
CSA approved.
No. ofRecesses: | 6 |
Capacity,mL: | 100 |
 Watts: | 360 |
Dimensions,L x D x H, cm (in.): | 120 x 26 x 9 (471/4 x 101/4 x 31/2) |
 Thermo Scientific No.: | EME60100CEBX |
Unit: | Each (100 ML) |
