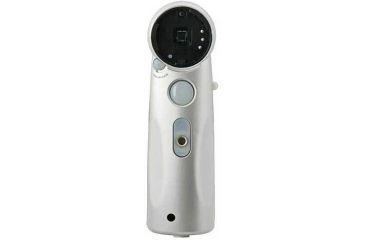

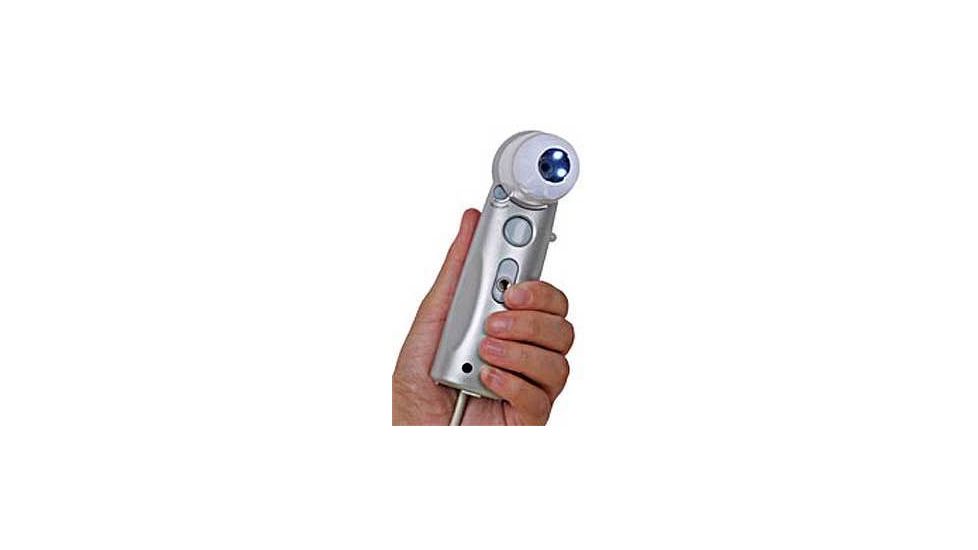

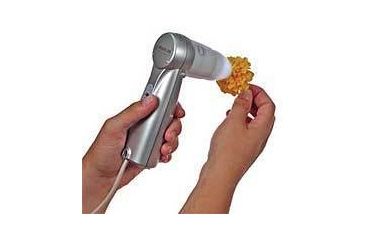

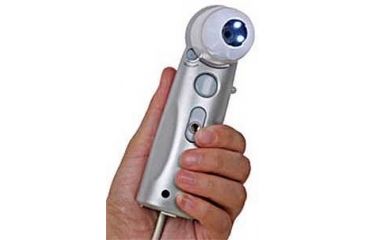

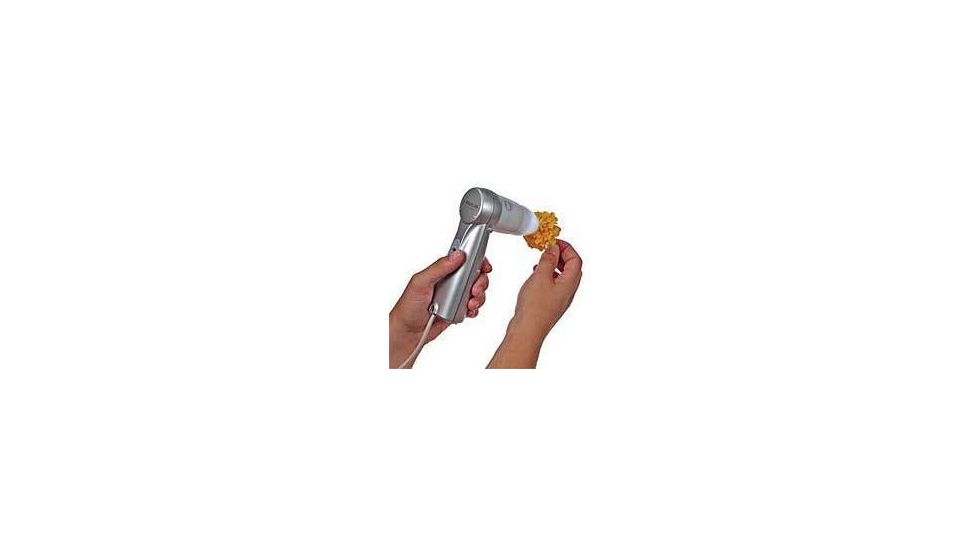

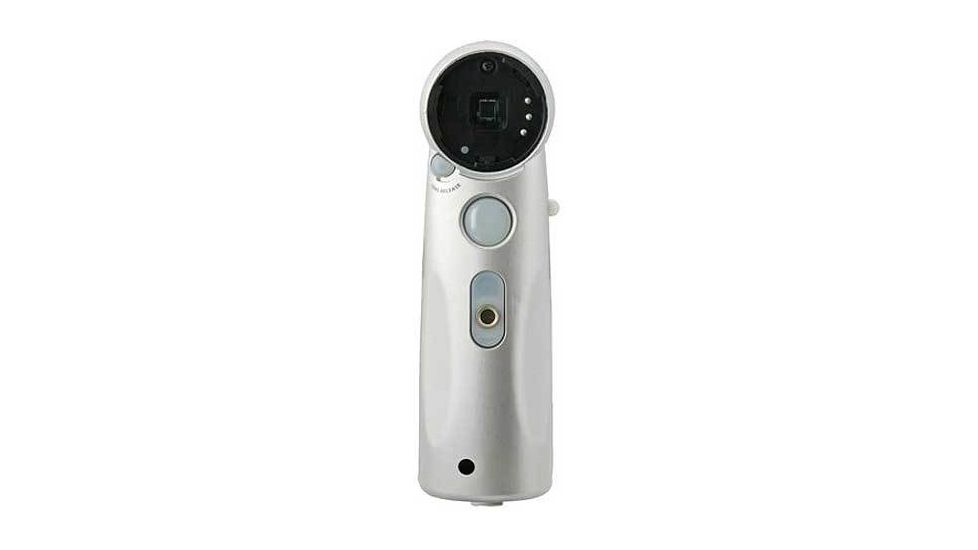

Bodelin ProScope HR USB Microscope Base Unit
Tap Tap to Zoom
Product No Longer Available
Unfortunately Bodelin ProScope HR USB Microscope Base Unit is not listed by LabPlanet.You can also explore other items in the Microscopes yourself to try and find the perfect replacement for you!
Product Info for Bodelin ProScope HR USB Microscope Base Unit
Bodelin ProScope HR USB Microscope Base Unit is the first high resolution USB 2.0 handheld Microscopes. The Bodelin ProScope HR Base Unit USB Microscope uses modular Microscopes so you can choose from a wider variety of lens magnifications for whatever you need, not limiting itself to the fixed magnification on traditional Microscopes. Increase your collection of lenses as they are developed and keep your Bodelin ProScope HR Base Unit USB Microscope working long into the future.

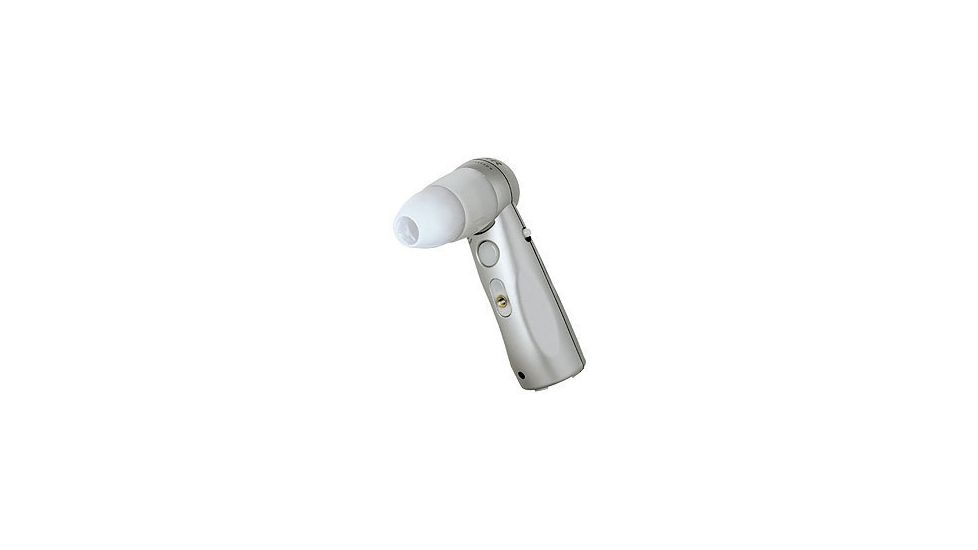

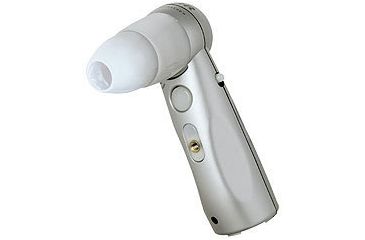

Bodelin ProScope HR USB Microscope Base Unit can be purchased with or without a lens - the Bodelin ProScope HR Base Unit w/o Lens and the Bodelin ProScope HR Base Unit w/ 50x Lens. The ProScope HR USB Microscope Base Unit w/ 50x Lens by Bodelin has a retractable cone so that you have an 1/2 inch working distance. The Bodelin ProScope HR 50x Lens is removable so that you can use any other Bodelin lens from 1-10x to 400x. The Bodelin ProScope HR USB Microscope Base Unit has 4 times the resolution of the original ProScope and the Bodelin lenses are interchangeable between the two units.
Bodelin ProScope HR Base USB Microscope Unit uses the native OS driver. Just load the basic software package or the more detailed LX-ProScope software on as many computers as needed and get to work, whether your Bodelin ProScope HR Microscope is connected or not. With its universal serial bus power capability (as long as the USB is connected to a computer, power is being stored for later use), the Bodelin ProScope HR USB Microscope is the perfect handheld microscope, from CSI personell to students, and ideal for individuals with issues looking through a lens with eyewear.
Available Models:
- PS-HR-BASE - Bodelin ProScope HR USB Microscope Base Unit w/o Lens, HR BASE

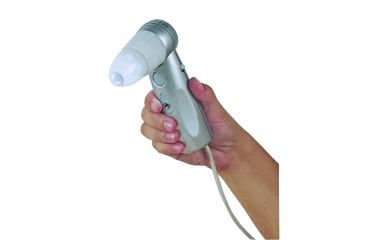

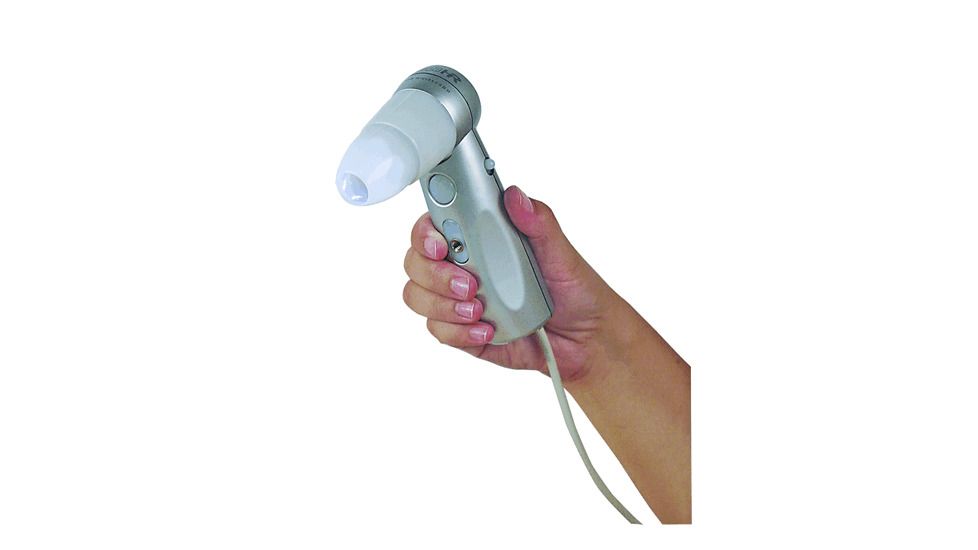

- PS-HR-50X - Bodelin ProScope HR USB Microscope Base Unit w/ 50X Lens, HR 50X
Bodelin ProScope HR Handheld USB Microscope Base Unit is included when purchasing Bodelin ProScope HR USB Microscope CSI Kits.
Hardware Specifications for Bodelin Proscope HR USB Microscope Base Unit:
| Available Lenses: | 1-10x, 30x polarizing, 50x, 100x, 200x, 400x, microscope adaptor, 55x-440x Super Zoom, all internally lit LED (except 1-10x, microscope adaptor) | |
| Image sensor: | 1/4" CCD | |
| Resolution: | 1.3 mega pixels (only with USB 2.0), 640 x 480 (USB 1.1) | |
| Output: | USB 2.0, USB 1.1 | |
| Cable length: | 6 feet or 1.8m | |
| Power source: | USB port powered | |
| Power consumption: | about 400mA | |
| White Balance: | Factory Preset with manual software controls | |
| Color Adjustments: | Factory Preset with manual software controls | |
| Operating Temperature Range: | 5 to 40 degrees Celsius | |
| Weight: | 6oz or 150g (Main unit with cable) | |
| Warranty: | 1 year | |
System Requirements for Bodelin Proscope HR USB Microscope Base Unit:
| Windows: | Windows XP service pack 2 or later, DirectX 9 or later, Quicktime 7 or later, factory installed USB 2.0 port (recommended) or USB 1.1 port (runs at lower resolution), P4 or equivalent | |
| Macintosh: | OS 10.4.8 or later, Quicktime 7 or later, factory installed USB 2.0 port (recommended) or USB 1.1 port (runs at lower resolution), G4, G5 or Intel Mac | |
Specs for Bodelin Proscope HR Base Unit USB Microscope Included Software:
| Resolution Setting Options: | 320 x 240 (30 fps), 640 x 480 (15 fps), 1280 x 1024 (1.3 mega pixel at 3.75 fps) with 640 x 480 live preview | |
| Still Image Capture: | jpeg, bmp (PC), pic (Mac) | |
| Movie Capture: | avi, manual setting clip length | |
| Time Lapse Movie Capture: | avi, manual setting parameters, Thumbnail Library for Image/Movie Viewing | |
| Site license: | for use on your local network | |
Features of Bodelin Proscope HR USB Microscope Base Unit:
- New software (included) for Mac and Windows.
- Capture stills, video and time lapse.
- Switch from 320 X 240 for higher frame rate video to 640 X 480 for live presentation and then switch to 1280 X 1024 to capture stills at high resolution.
- Interchangeable lens capability
Package Contents:
- Bodelin Proscope HR USB Microscope Base Unit
- Packaged Software (Windows & Mac OS compatible)
- 50x Lens (with purchase of Proscope HR Base Unit w/ 50x Lens)
