Code: 9B-9MB-044900
MPN: 44900

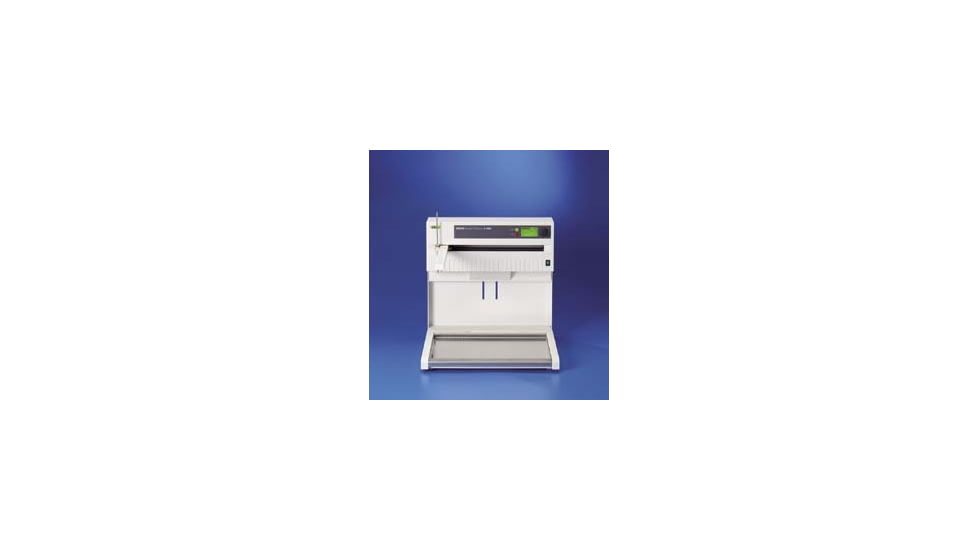

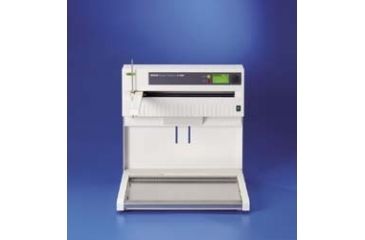

Buchi Fraction Collector C-660 044900 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Buchi Fraction Collector C-660 044900 / 80082-600 is part of a wide selection of Buchi Chromatography pumps. Combining excellent quality with an affordable price, the Buchi Fraction Collector C-660 044900 / 80082-600 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Chromatography pumps please do not hesitate to contact our customer service for further guidance.![]()
This height-adjustable fraction collector features dialog options for preparative chromatography. It can collect substances according to time, volume, or peak (only with UV detector). Up to 12L can be collected in a maximum of 240 glass tubes during each run. With the Teach-In function, customer designed racks can be programmed and checked using show mode. Internal timer runs from 1 second-100 hours. Features a backlit graphical LCD screen and an RS-232 interface for transferring data to a PC. Equipped with two detector inlets and two recorder outlets.
The chromatography table includes an RS-485 connector cable for space-saving installation on top of the fraction collector. The FC12 tube rack holds twelve 40mm diameter tubes; the FC30 tube rack holds thirty 26mm diameter tubes; and the FC60 tube rack holds sixty 17mm diameter tubes. Tubes are not included. The waste diverter valve is a dual-valve system used to divert flow during tube change and close outlet after each run.
CE marked. UL listed. CSA certified.
| Description: | C-660 Fraction Collector |
| Buchi No.: | 044900 |
| Unit: | Each |
| Properties: | |
| Dimensions: | 46.5W x 47D x 37-46H cm (185/16 x 181/2 x 149/16-181/8") |
| Collection Area: | 44W x 35D cm (175/16 x 133/4") |
| Collection Height: | Adjustable from 4-32 cm (19/16-125/8") |
| Electrical: | 120V, 50/60Hz, 25W |
