Product Info for Cold Chain Koolit Saddlebrick CS4 328FSB3
Cold Chain Koolit Saddlebrick CS4 328FSB3 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Cold Chain Koolit Saddlebrick CS4 328FSB3 / 89013-660 is part of a wide selection of Cold Chain Packaging pouches or bags. Combining excellent quality with an affordable price, the Cold Chain Koolit Saddlebrick CS4 328FSB3 / 89013-660 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Packaging pouches or bags please do not hesitate to contact our customer service for further guidance.![]()
Universal, prequalified systems can safely transport products within a temperature range of 2 to 8°C (36 to 46°F) for 48 hours. Shippers are prequalified for minimum and maximum loads, liquids, and lyophilized shipments. The GTS can also maintain product payload temperature at -20°C (-4°F) for 72 hours using dry ice. Lightweight while still offering a large payload, shippers are efficient and space-saving.

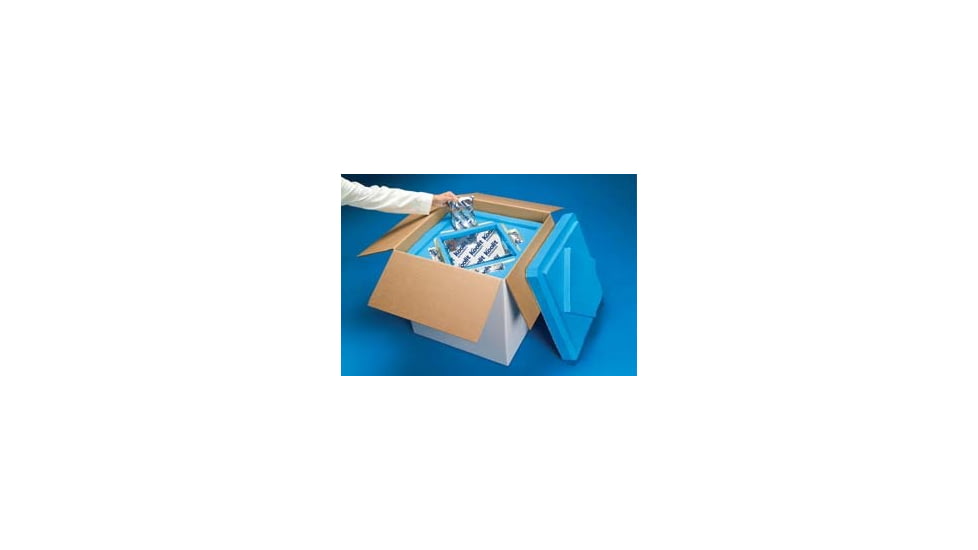

The simple packout uses only four components: a polyurethane insulated shipper with lid, an outer corrugated box, four Koolit* frozen bricks, and two Koolit refrigerated saddle bricks (included).
One-piece molded systems with a vapor-proof barrier enhance thermal effectiveness for a high R-value (measure of thermal resistance). Koolit refrigerated saddle bricks consist of three compartmentalized bricks with a puncture-resistant laminate foil film. They are nontoxic and remain uniform in shape whether frozen or thawed. Saddle brick dimensions: 90.2Lx24.4Hx2.5Wcm (351/2x95/8x1").
Qualified to ISTA 5B (thermal test) and ISTA 2A (integrity/physical test) profiles at minimum and maximum loads, using both liquid and lyophilized product, under both summer and winter conditions. Environmentally safe and recyclable. Contain no ozone-depleting chemicals.
Specifications for Cold Chain Koolit Saddlebrick CS4 328FSB3:
| Description: | Koolit Refrigerated Saddle Bricks |
| Cold Chain No.: | 328FSB3 |
| Unit: | Case of 4 |
| Properties: | |
| Dimensions | |
| Exterior: | 51 x 51 x 50.6 cm (203/32 x 203/32 x 197/8") |
| Interior: | 21.9 x 21.9 x 22.2 cm (85/8 x 85/8 x 83/4") |
| Unit Weight: | 16.3 kg (36 lbs.) |
