Code: VW-9MG-3460J
MPN: 3460

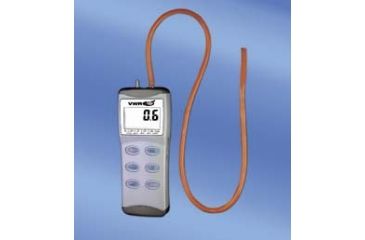

VWR Gauge MANOMTR/PRESSURE/VAC 3460 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. VWRÂ Gauge MANOMTR/PRESSURE/VAC 3460 / 33500-082 is part of a wide selection of Control Company Laboratory tools. Combining excellent quality with an affordable price, the VWRÂ Gauge MANOMTR/PRESSURE/VAC 3460 / 33500-082 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Laboratory tools please do not hesitate to contact our customer service for further guidance.
Manometers display differential pressure or vacuum readings in 11 different units: psi, mbar, bar, cm/H2O, in./H2O, ft./H2O, mm/Hg, in./Hg, kg/cm2, oz./in.2, and kPa, with a response time of 0.5 seconds. Simple hose fittings permit use of tubing with inside diameter from 0.63-1.9mm (1/16 to 3/16"). Large 6.3mm (5/8")-high digits are visible from 1.8m (6') away. Unit may be zeroed with the touch of a button. Differential feature registers the pressure or vacuum difference between two different sources, and memory feature recalls highest and lowest readings over any time period. Count-up timer displays times up to 99 hours, 59 minutes, 59 seconds. Data hold key freezes the display to capture readings.
Brilliant backlighting permits reading even in dark areas. ABS plastic case.
A serial numbered certificate is provided from an ISO 17025 calibration laboratory accredited by A2LA to indicate instrument traceability to standards provided by the National Institute of Standards and Technology.
PressureRange, mm Hg: | -259 to 259 |
 Resolution, mm: | 0.2 |
Unit: | Each |
Properties: | |
Accuracy: | ±0.3% of full scale at 25°C |
Dimensions: | 7W x 18.1H x 2.9D cm |
Unit Weight: | 141.8 g (5 oz.) |
