Code: YE-9JH-ET855
MPN: ET855

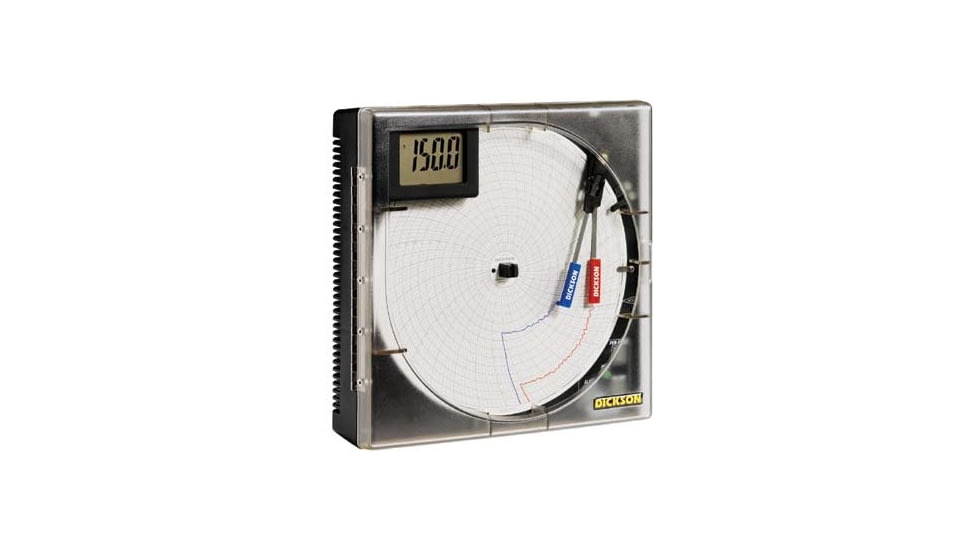

Dickson Universal Elec Chrt Recorder ET855 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Dickson Universal Elec Chrt Recorder ET855 / 14905-002 is part of a wide selection of Dickson Melting point recorders. Combining excellent quality with an affordable price, the Dickson Universal Elec Chrt Recorder ET855 / 14905-002 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Melting point recorders please do not hesitate to contact our customer service for further guidance.![]()
Designed for a wide variety of applications, this recorder features high/low audible alarm, user calibration, large display, user selectable output ranges and recording times, and two input channels. The high/low alarm displays minimum/maximum readings with no controller/relay functions. Unit uses 20.3cm (8") charts and has remote sensing capability with powered voltage or current transmitters. Two screw terminals on the back of the unit allow for easy connection of input transmitter. Free-standing or wall-mountable. (Dickson ET855)
| Description: | UNIVERSAL ELEC CHRT RECORDER |
| Unit: | Each |
| Properties: | |
| Input Ranges: | 0-20 mA, 4-20 mA, 0-5 Vdc, 1-5 Vdc |
| Output/Chart Ranges: | 000.0 to 100.0, 0000 to 1000, 00.00 to 14.00, 000.0 to 150.0, 000.0 to 200.0, |
| Accuracy: | 0.3% Full Scale, ±1 Digit |
| Resolution: | 0.001, 0.01, or 1 |
| Recording Time: | 24-hour or 7-day |
| Dimensions: | 23.4L x 23.4W x 7.9H cm (97/32 x 97/32 x 31/8") |
| Weight: | 1.8 kg (4 lbs.) |
