Product No Longer Available
Unfortunately Edwards Vacuum XDS10-C Dry Vacuum Pump 230V A72701903 is not listed by LabPlanet.You can also explore other items in the Laboratory vacuum pumps yourself to try and find the perfect replacement for you!

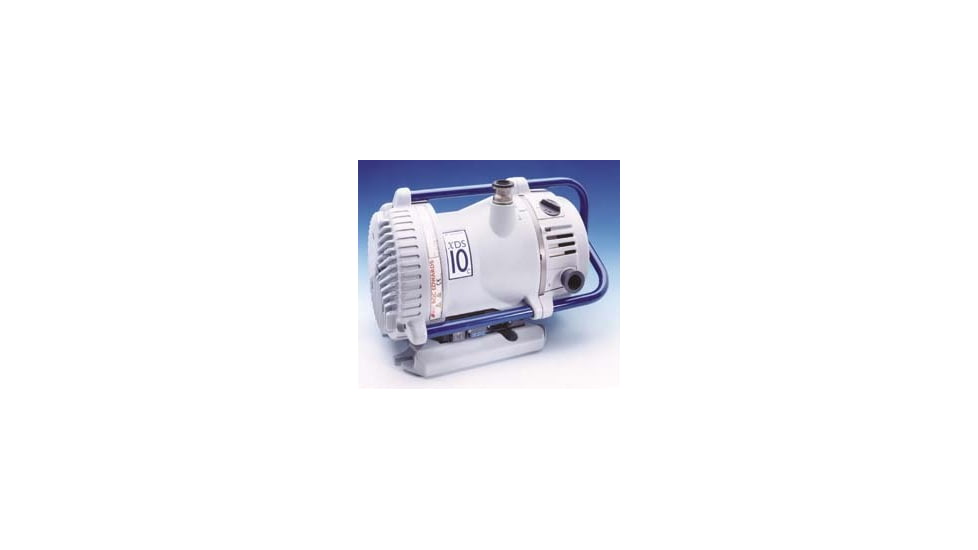

Product Info for Edwards Vacuum XDS10-C Dry Vacuum Pump 230V A72701903
Edwards Vacuum XDS10-C Dry Vacuum Pump 230V A72701903 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Edwards Vacuum XDS10-C Dry Vacuum Pump 230V A72701903 / EVA72701903 is part of a wide selection of Edwards Vacuum Laboratory vacuum pumps. Combining excellent quality with an affordable price, the Edwards Vacuum XDS10-C Dry Vacuum Pump 230V A72701903 / EVA72701903 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Laboratory vacuum pumps please do not hesitate to contact our customer service for further guidance.
Pumps are designed to provide vacuum totally free of lubricants. Ideal for use with scanning electron microscopes, ion implanters, turbomolecular pumps, loadlocks, leak detectors, and hermetic systems, and for sputtering, surface analysis, lamp/tube evacuation, and general-purpose laboratory dry vacuum applications. Bearings are completely isolated from the vacuum so lubrication fluid is not subject to attack by process vapors, with no risk of back migration of oil or fluid into the vacuum area. Controllable gas ballast makes pumps equal to rotary vane pumps in handling vapor loads.
Pumps are portable, air-cooled, and feature special seals to reduce wear, improve reliability, and extend life. Lightweight hard anodized aluminum construction. Low vibration and low noise levels, typically less than 55dBA, make pumps ideal for laboratory use.
Standard pumps feature a plastic outlet connection while chemical-resistant pumps come with a stainless steel outlet connection.
UL listed. CSA certified.
Specifications for Edwards Vacuum XDS10-C Dry Vacuum Pump 230V A72701903:
| Â Model: | XDS10-C |
| Displacement @ 60Hz,L/min. (cfm): | 224 (7.9) |
| Pumping Speed @ 60Hz,L/min. (cfm): | 185 (6.5) |
| Ultimate Vacuum,mbar (Torr): | 0.9 (0.675) |
| Â Electrical: | 230-240V, 60Hz, 300W |
| Weight,kg (lbs.): | 24.5 (54) |
| Â BOC Edwards No.: | A72701903 |
| Unit: | Each |
| Properties: | |
| Inlet/Outlet Connection: | NW25 |
| Maximum Inlet Pressure: | 0.5 bar gauge |
| Maximum Gas Ballast Inlet Pressure: | 0.5 bar gauge |
| Maximum Pumping Rate, | |
| Gas Ballast Low Flow: | 0.15 lb./hr. H2O Vapor |
| Gas Ballast High Flow: | >0.44 lb./hr. H2O Vapor |
| Operating Temperature: | 10 to 40°C (50 to 104°F) |
| Dimensions: | 42.7L x 24.9W x 28.8H cm (1613/16 x 913/16 x 1111/32") |
