Code: OB2-9SD-10555
MPN: 10555

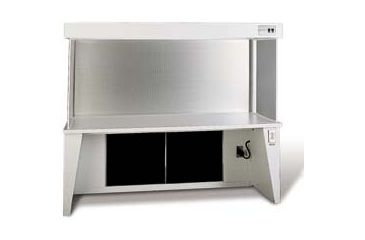

Envirco Corp HORIZ. Flow Bench W/TABLE 8FT 10555 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Envirco Corp HORIZ. Flow Bench W/TABLE 8FT 10555 / VF-10555 is part of a wide selection of Envirco Corp Furniture project administration or management. Combining excellent quality with an affordable price, the Envirco Corp HORIZ. Flow Bench W/TABLE 8FT 10555 / VF-10555 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Furniture project administration or management please do not hesitate to contact our customer service for further guidance.![]()
The two-piece design eliminates nearly all vibration transmission from filter/blower console to work surface. Benches feature HEPA filters to provide an ISO Class 5 (FED-STD-209E Class 100/M3.5) work environment. The HEPA filters have a minimum efficiency of 99.99% at 0.3µm or larger. A perforated aluminum diffuser screen protects the HEPA filter while maintaining uniform air velocity within the work area. A 30% ASHRAE washable prefilter is included to extend the life of the HEPA filter.
The workstation frame is made of welded steel with a corrosion-resistant polyurethane enamel finish. The work surface has a depth of 61cm (24") and is 76.2Hcm (30") from floor. Benches feature removable acrylic side panels and a convenient recessed knee space for operator comfort. A duplex receptacle is located on the front leg of the bench for easy access. The nonglare, plastic laminated work surface is easy to clean. A recessed fluorescent light fixture provides 150 foot-candles of illumination at the work surface.
Benches utilize a direct-drive continuous-duty 1/2hp motor with sealed-for-life bearings dynamically balanced and mounted on rubber-in-shear vibration isolators. The motor is designed to provide rated airflow through the filter loading in excess of 50% over initial static pressure. The motor features solid-state speed control with RFI suppression for adjusting airflow velocity.
Ordering Information: Manufacturer's one-year limited warranty on parts and labor. Include a three-wire cord with plug. Accessory items such as stainless steel work surfaces, lab service fixtures, and IV rods are available; contact your VWR sales representative for more information.
| Overall Width,cm (in.): | 259.1 (102) |
| Work SurfaceWidth, cm (in.): | 243.8 (96) |
| Avg. cfmat 90 fpm: | 1800 |
| Shipping Weight,kg (lbs.): | 476 (1049.4) |
| Unit: | Each |
| Properties: | |
| Overall Dimensions | |
| Clean Bench: | 111.8D x 165.1H cm (44 x 65") |
| Work Surface: | 61D x 76.2H cm (24 x 30") |
| Btu/Hour | |
| VF-10552, VF-10553, VF-10554: | 115V, 7.5A |
| VF-10555: | 115V, 15A |
| Electrical | |
