Code: OB2-9SD-10613
MPN: 10613
Envirco Corp Workdeck S.S.F/TT Series 4FT 10613 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Envirco Corp Workdeck S.S.F/TT Series 4FT 10613 / VF-10613 is part of a wide selection of Envirco Corp Furniture project administration or management. Combining excellent quality with an affordable price, the Envirco Corp Workdeck S.S.F/TT Series 4FT 10613 / VF-10613 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Furniture project administration or management please do not hesitate to contact our customer service for further guidance.![]()

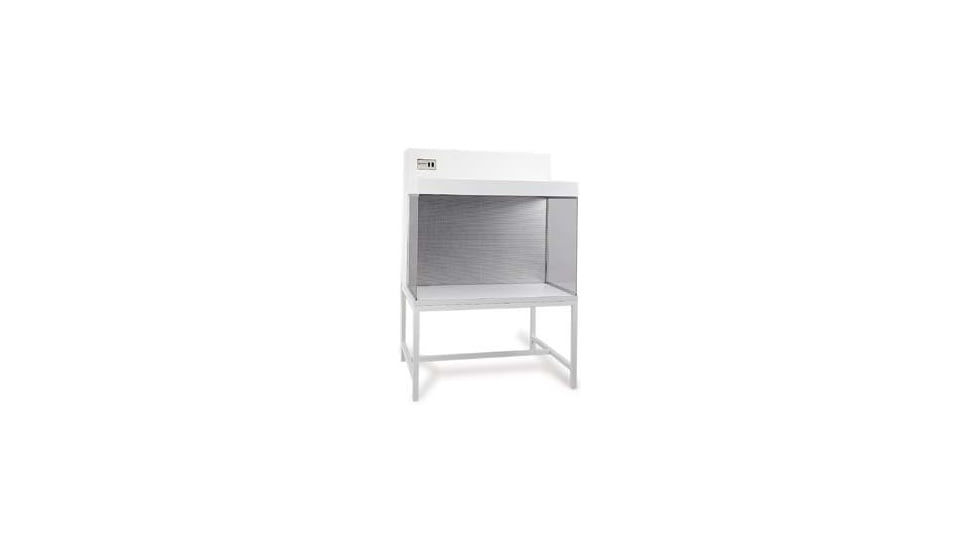

Self-contained multipurpose horizontal laminar flow workstations can be placed on an existing table, open bench, or support stand. Workstations feature HEPA filters that provide an ISO Class 5 (FED-STD-209E Class 100/M3.5) environment. The HEPA filters have a minimum efficiency of 99.99% at 0.3µm or larger. A perforated aluminum diffuser screen protects the HEPA filter while maintaining uniform air velocity within the work area. A 30% ASHRAE washable prefilter is included to extend the life of the HEPA filter.
The workstation exterior is constructed of welded aluminum with a corrosion-resistant polyurethane enamel finish, and it has removable clear acrylic side panels. The nonglare, plastic laminated work surface is easy to clean and stands 77.5cm (301/2") from the floor. A recessed fluorescent light fixture provides 150 foot-candles of illumination at the work surface.
Workstations utilize a direct-drive continuous-duty 1/3hp motor with sealed-for-life bearings dynamically balanced and mounted on rubber-in-shear vibration isolators. The motor is designed to provide rated airflow through filter loading in excess of 50% over initial static pressure. The motor features solid-state speed control with RFI suppression for adjusting airflow velocity.
Ordering Information: Manufacturer's one-year limited warranty. Workstations include a power cord with three-prong plug. Optional stainless steel work surfaces, lab service fixtures, and duplex electrical receptacles are available; contact your VWR sales representative for more information.
| Overall Width,cm (in.): | Stainless Steel Workdeck, 121.9 cm (48") Width |
| Average cfmat 90 fpm: | - |
| Â Btu/Hour: | - |
| Â Electrical: | - |
| Shipping Weight,kg (lbs.): | - |
| Unit: | Each |
| Properties: | |
| Overall Dimensions | |
| Workstation: | 96.5D x 119.4H cm (38 x 47") |
| Support Stand: | 96.5D x 81.3H cm (38 x 32") |
