Code: EP-9PC-022670506
MPN: 22670506
Eppendorf Thermoblk F/EPP Therm 24X0.5ML 022670506 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Eppendorf Thermoblk F/EPP Therm 24X0.5ML 022670506 / 21516-174 is part of a wide selection of Eppendorf Dry baths or heating blocks. Combining excellent quality with an affordable price, the Eppendorf Thermoblk F/EPP Therm 24X0.5ML 022670506 / 21516-174 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Dry baths or heating blocks please do not hesitate to contact our customer service for further guidance.![]()

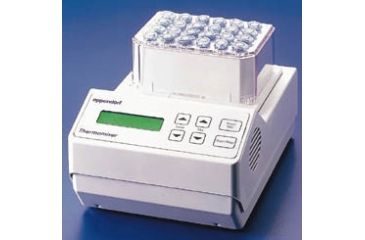

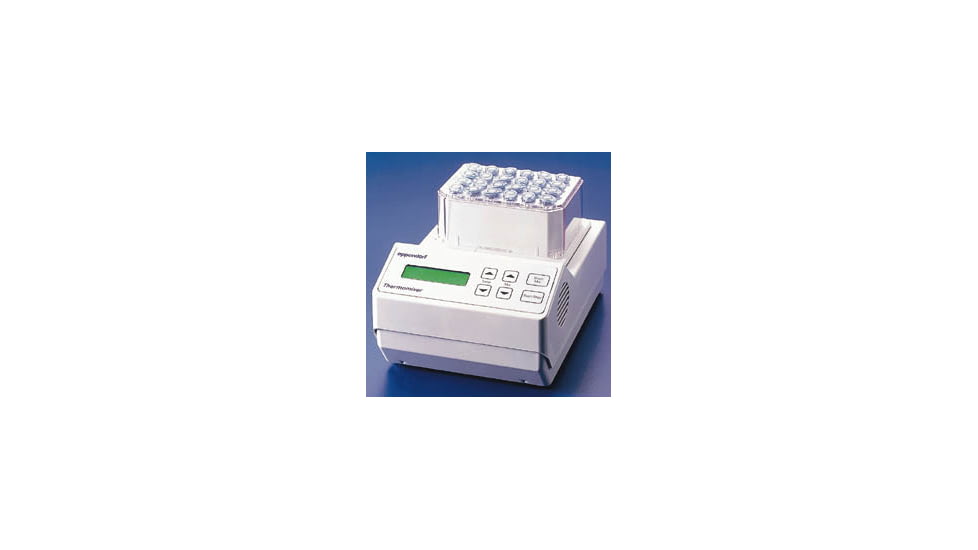

Thermomixer 21516-170 provides heating and shaking of 24x1.5mL sample tubes. Unit features a numbered rack for easy sample identification and transfer, and a short-mix function for vortex applications.
Thermomixer R mixers 21516-166 and -168 utilize interchangeable blocks to provide heating, cooling, and shaking of microplates, tubes, conical tubes, or cryotubes. The 24-position blocks are supplied with work rack and 0°C cooling pack to keep samples at 0°C on the bench for approximately three hours. Blocks are autoclavable and freezer-safe. Additional mixer features include an expanded temperature range, quick heat-up and cooling rates for increased throughput, digital display of all parameters, a short-mix function for vortex applications, and programmable intermittent mixing. RS-232 interface allows documentation of operating procedures.
| Thermomixer | Thermomixer R | ||
| Mixing Speed, | |||
| For 0.5 mL Block: | - | 300 to 1500 rpm | |
| For 1.5 mL Block: | 300 to 1400 rpm | 300 to 1400 rpm | |
| For 2, 5-7, 15, and 50 mL and Microplate Blocks: | - | 300 to 1400 rpm | |
| Mixing Stroke: | 3 mm | 3 mm | |
| Temperature Control Range | |||
| (to 99°C in 1°C increments): | 4°C above ambient | 13°C below ambient | |
| Temperature Accuracy, | |||
| 20 to 45°C: | ±1°C | ±0.5°C | |
| Below ambient: | - | ±2°C | |
| Above 45°C: | ±2°C | ±2°C | |
| Heating Rate: | Approx. 5°C/min. | Approx. 5°C/min. | |
| Cooling Rate, | |||
| Above Room Temperature: | - | 2 to 3°C/min. | |
| Below Room Temperature: | - | 0.5 to 1°C/min. | |
| Timer: | - | 1 min. to 99 hrs, 59 min., | |
| or continuous | |||
| Dimensions: | 16.5W x 24D x 13.5H cm | 22W x 25D x 12H cm | |
| (61/2 x 91/2 x 55/16") | (821/32 x 927/32 x 43/4") | ||
| Weight: | 2.72 kg (6 lbs.) | 3.17 kg (7 lbs.) |
| Description: | Block for 24 x 0.5 mL Tubes |
| Eppendorf No.: | 022670506 |
| Unit: | Each |
