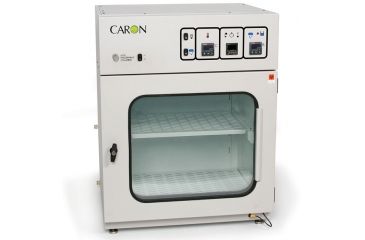

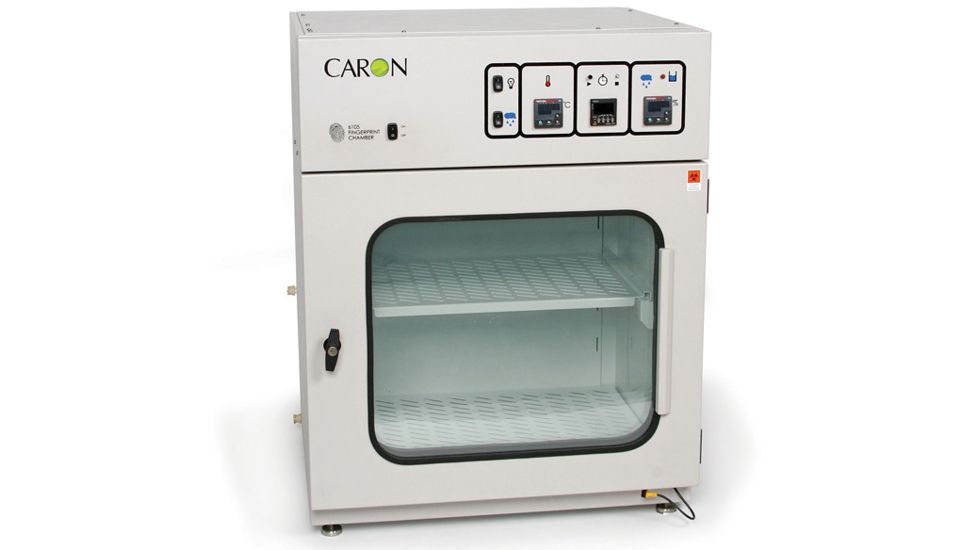

Forensics Source Caron DFO Ninhydrin Dev Chamber

The Forensics Source Caron Fingerprint Development Chamber 1-4835 has been developed to be the perfect way to accelerate the DFO, Ninhydrin and other fingerprint development processes. With the Forensics Source Caron Fingerprint Chamber, fingerprints are detected at a faster rate, and with better clarity, by precisely controlling conditions of high temperature and high relative humidity. Typical operating conditions of the Forensics Source Caron Fingerprint Chamber are 100°C for DFO and 80°C/65% RH for Ninhydrin. The Forensics Source Caron Chamber for Fingerprint Processing features rapid condition recovery after the chamber door is opened and closed. The large viewing area offers easy observation of critical samples. The interior of the Forensics Source Caron Fingerprint Chamber is made of seam-welded aluminum coated with high quality, corrosion resistant epoxy paint.

Specifications for Forensics Source Caron DFO Ninhydrin Dev Chamber:

Features of Forensics Source Caron DFO Ninhydrin Dev Chamber:

• The wide temperature and humidity range allows fingerprints to be processed in just a matter of minutes — not days like some conventional methods.
• Microprocessor-based PID controllers maintain excellent stability and provide reliable and repeatable results.
• The gentle, forced, vertical airflow provides uniform environmental conditions, eliminates condensation, and keeps evidence moisture-free.
• A steam generator adds heat while humidifying, providing for quick ramp-up and rapid condition recovery after door openings.
• The digital temperature and humidity display provides clear and accurate settings.
• The icon-based control panel is easy to understand and requires minimal operating documentation.
• Dual display of temperature and humidity allows the user to visualize instantaneous setpoint and operating conditions.
• The vertical LED light strip in the door provides a large illumination area to watch fingerprints being developed.
• The triple pane, heated glass door minimizes condensation.
• A low water level warning light notifies the operator when to add water.
• Digital countdown timer displays time remaining in test procedure.
• Slide-out shelves allow for quick and easy loading and unloading of samples.
• The icon-based control panel is easy to understand and requires minimal operating documentation. Dual display of temperature and humidity allows the user to visualize instantaneous setpoint and operating conditions. The vertical LED light strip in the door provides a large illumination area to watch fingerprints being developed. The triple pane, heated glass door minimizes condensation. A low water level warning light notifies the operator when to add water. Digital countdown timer displays time remaining in test procedure. The CARON Chamber simply plugs into a 220v outlet and requires a water source to operate. Below are options that are available to set up the system.
• Installation, start-up training packages .
• Custom made chambers designed to user requirements.
• Carboy, water fill bottle with cap, 4 liters (1 gal.). Universal holder mounts on side or top of unit. Includes tubing and fittings.
• Perforated shelf–35.6cm x 54.6cm (14" x 21.5")—and shelf tracks.
• Universal Condensate Recirculating System for use where a floor drain or in-house supply of distilled water is not available

Package Contents:

• Forensics Source Caron DFO Ninhydrin Dev Chamber
