Product No Longer Available

Unfortunately Gardner Denver Welch Freeze Dryer Vacuum System 8917C-80 is not listed by LabPlanet.You can also explore other items in the Freeze dryers or lyopholizers yourself to try and find the perfect replacement for you!

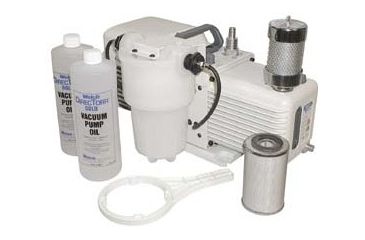

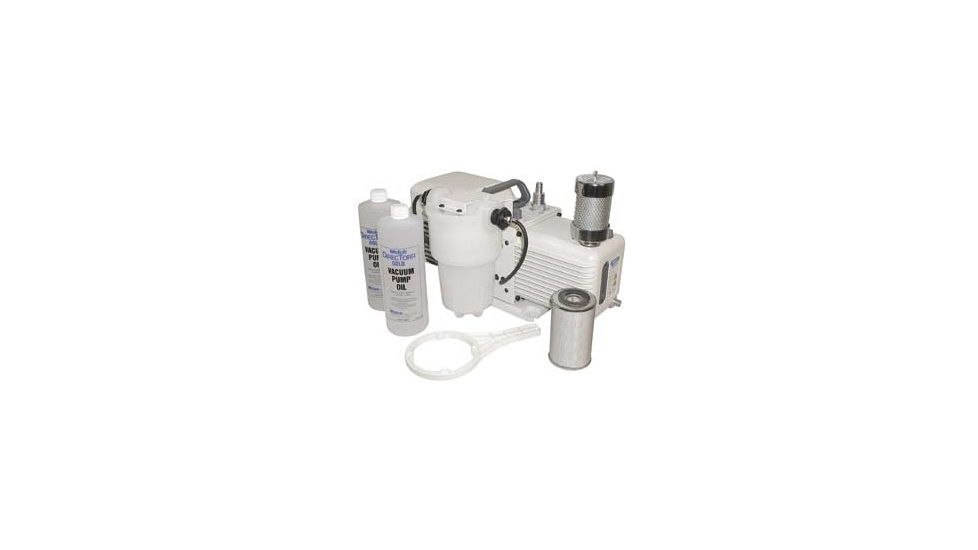

Product Info for Gardner Denver Welch Freeze Dryer Vacuum System 8917C-80

Gardner Denver Welch Freeze Dryer Vacuum System 8917C-80 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Gardner Denver Welch Freeze Dryer Vacuum System 8917C-80 / 14224-386 is part of a wide selection of Gardner Denver Welch Freeze dryers or lyopholizers. Combining excellent quality with an affordable price, the Gardner Denver Welch Freeze Dryer Vacuum System 8917C-80 / 14224-386 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Freeze dryers or lyopholizers please do not hesitate to contact our customer service for further guidance.image

These direct-driven freeze dryer pumps are designed for lyophilizing samples containing harsh chemicals including strong acids. Pumps handle mixtures containing TFA, TFA by-products, acetonitrile, HBr and HNO3. Pumps are ideal for use in the final drying step of preparing heat-sensitive protein and peptide samples that were isolated using HPLC or column LC. Pumps are recommended for 12L or smaller freeze dryers.

Features include integral oil filtration system for continuous neutralization of acids, and a large oil capacity of approximately 1.5L (1.6 qts.) to dilute organic vapors and protect the pump oil during freeze drying runs. The UNIBARB* intake connections accept 11.1mm (7/16") or 20.6mm (13/16") I.D. vacuum hose. Pumps come with the high-purity DIRECTORR* Gold pump oil, which has excellent resistance to chemical attacks.

The 115V model is CSA certified. The 230V model is CE marked.

Specifications for Gardner Denver Welch Freeze Dryer Vacuum System 8917C-80:

Free Air Displacement, L/min. (cfm):143 (5.1)
Electrical:230V, 50Hz, 1Ph
Welch No.:8917C-80
Unit:Each
Properties:
Ultimate Pressure:1 x 10-4 Torr
Tubing I.D. Needed:11.1 to 20.6 mm (7/16 to 13/16")
Dimensions:47.2L x 29.2W x 24.4H cm (1819/32 x 111/2 x 919/32")
Shipping Weight:34 kg (75 lbs.)
