Code: GW-9NG-1400B-80
MPN: 1400B-80

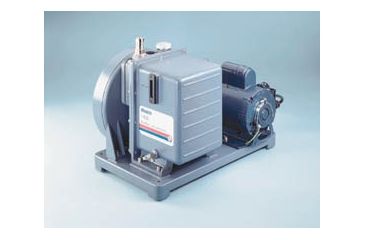

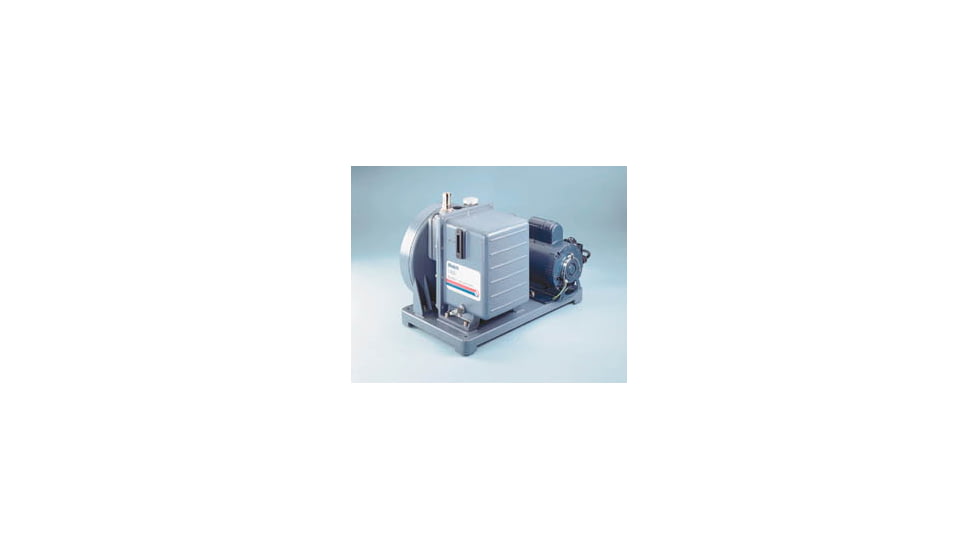

Gardner Denver Welch Pump 115/60 1PH Csa 1400B-80 1400B-80 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Gardner Denver Welch Pump 115/60 1PH Csa 1400B-80 1400B-80 / 54973-084 is part of a wide selection of Gardner Denver Welch Laboratory vacuum pumps. Combining excellent quality with an affordable price, the Gardner Denver Welch Pump 115/60 1PH Csa 1400B-80 1400B-80 / 54973-084 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Laboratory vacuum pumps please do not hesitate to contact our customer service for further guidance.![]()
These pumps operate at a low rpm which allows them to run cooler and reach a lower ultimate pressure (1 x 10-4 torr), with less backstreaming. Operating at low speed also reduces the rate of friction and wear on pump components, which ensures a longer service life. Pumps have a rugged design to facilitate tough applications. The contoured, molded belt-guard and base on Model 1402 and 1376 series pumps are designed for quieter operation and to eliminate visible oil weeping at seal.
The DUOSEAL series pumps provide a wide range of pumping speeds from 25 to 650 L/min. (0.9 to 23.3cfm). They incorporate a circular bore design which produces a high free air displacement with low rpm.
The unmounted pumps come without the motor, base, or belt guard. The pump with refrigerator service comes with two carrying handles and a 19mm (3/4") male inlet fitting. All pumps come with standard cord and plug, except for models with Schuko plug. The Model 1402 pumps 1374 series pumps 54993-505 and 54993-517 come with no line cord or plug.
| Â Â Description: | CSA Certified Pump |
| Â Â HP: | 1/3 |
| Â Â RPM: | 580 |
| TubingNeeded,I.D.: | 11.1 (7/16) |
| OilCapacity,L (qts.): | 0.59 (0.62) |
| Â Â Electrical: | 115V, 60Hz |
| Â Dimensions,L x W x H, cm (in.): | 45 x 23 x 32 (18 x 9 x 1219/32) |
| ShippingWeight,kg (lbs.): | 30.8 (68) |
| Â Â Welch No.: | 1400B-80 |
| Unit: | Each |
