Code: GW-9NG-202501
MPN: 202501

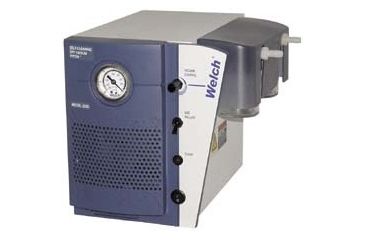

Gardner Denver Welch Vacuum Sys Dry 60HZ 1.2CFM 115 202501 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Gardner Denver Welch Vacuum Sys Dry 60HZ 1.2CFM 115 202501 / 54994-126 is part of a wide selection of Gardner Denver Welch Laboratory vacuum pumps. Combining excellent quality with an affordable price, the Gardner Denver Welch Vacuum Sys Dry 60HZ 1.2CFM 115 202501 / 54994-126 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Laboratory vacuum pumps please do not hesitate to contact our customer service for further guidance.
This oil-less, two-stage diaphragm pumping system is ideal as a companion for a rotary evaporator, concentrator, or distillation apparatus. It is resistant to chemical attack, even from the most aggressive vapors. Vacuum system contains fluorinated plastics on all wetted surfaces, including the diaphragm and valves.
Residue accumulation on the diaphragms and valves is reduced by a glass inlet separator that inhibits the ingesting of liquid and particulate contaminates which can impede performance. A gas ballast/vent switch acts to minimize vapor condensation inside the pump, and an automatic self-cleaning purge rids the pump of unwanted residue after every run.
CSA certified. (Welch 202501)
Description: | VACUUM SYS DRY 60HZ 1.2CFM 115 |
Unit: | Each |
Properties: | |
Free Air Displacement: | 34 L/min. (1.2 cfm) |
Ultimate Pressure: | 9 Torr (12 mbar) |
Maximum Vacuum: | 751.8 mm Hg (29.6 in. Hg) |
Dimensions: | 29.8L x 20.3W x 28.5H cm |
Weight: | 12.7 kg (28 lbs.) |
Tubing Needed: | 7 mm (1/4") |
Electrical: | 115V, 60Hz, 1Ph |
