Code: GW-9NG-202701
MPN: 202701

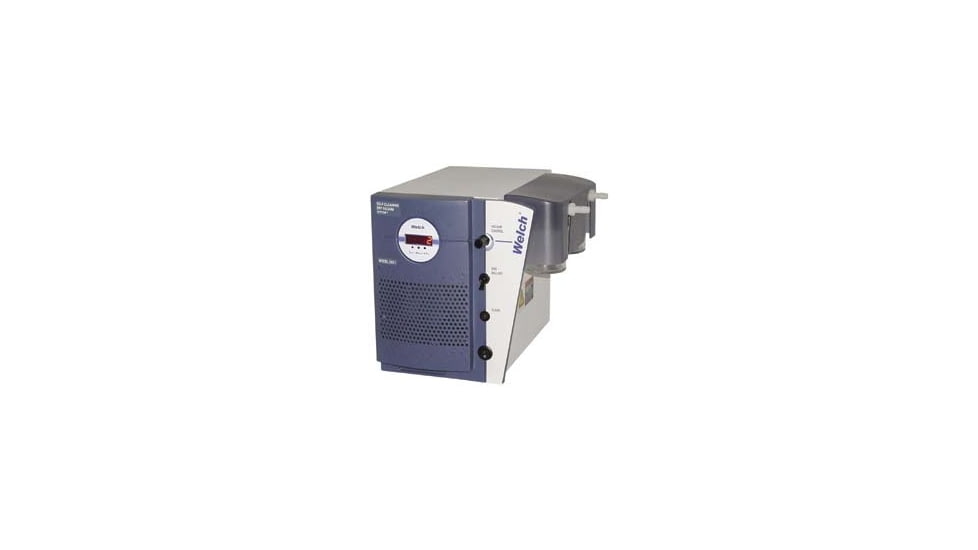

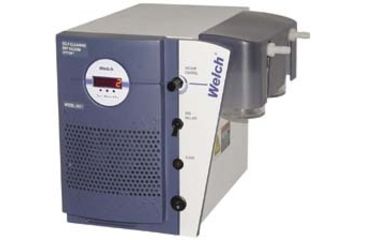

Gardner Denver Welch Vacuum System Welch 2027 202701 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Gardner Denver Welch Vacuum System Welch 2027 202701 / 12000-546 is part of a wide selection of Gardner Denver Welch Laboratory vacuum pumps. Combining excellent quality with an affordable price, the Gardner Denver Welch Vacuum System Welch 2027 202701 / 12000-546 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Laboratory vacuum pumps please do not hesitate to contact our customer service for further guidance.
These oil-free, two-stage diaphragm pumps are ideal to use with a rotary evaporator for stripping high boiling-point solvents such as DMF (boiling point should be <160°C) or low boiling-point solvents such as methylene chloride using the vacuum regulator. The automatic self-cleaning fresh-air purge rids the pump of unwanted residue after every run, prolonging the membrane life span.
Pumps are resistant to chemical attack, even from the most aggressive vapors, and contain fluorinated plastics on all wetted surfaces, including the diaphragm and valves. Pumps feature a glass inlet separator to prevent the ingesting of liquid and particulate contaminants, a gas ballast/vent switch to minimize vapor condensation when pumping heavy vapor loads, and an exhaust separator that collects any liquid droplets or particulates flushed from the pump during the purge cycle.
Each system also includes a vacuum regulator, easy-to-read gauge, and intake and exhaust capture jars. Pumps are CSA certified.
Description: | Vacuum System with Digital Gauge |
Welch No.: | 202701 |
Unit: | Each |
Properties: | |
Free Air Displacement: | 34 L/min. (1.2 cfm) |
Ultimate Pressure: | 2.7 mbar (2 Torr) |
Maximum Vacuum: | 758.2 mm Hg (29.9 in. Hg) |
Horsepower: | 1/5 |
Tubing Neded: | 7 mm I.D. (1/4") |
Dimensions: | 42.2L x 30.5W x 28.7H cm (1319/32 x 12 x 115/16") |
Electrical: | 115V, 60Hz |
Weight: | 13.6 kg (30 lbs.) |
