Code: GN-99I-609101
MPN: 609101
Greiner Bio-One Plate Protein Crystlliztn CS40 609101 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Greiner Bio-One Plate Protein Crystlliztn CS40 609101 / 82050-484 is part of a wide selection of Greiner Bio-One Multiwell plates. Combining excellent quality with an affordable price, the Greiner Bio-One Plate Protein Crystlliztn CS40 609101 / 82050-484 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Multiwell plates please do not hesitate to contact our customer service for further guidance.
Designed to facilitate high throughput protein crystallography in fully automated systems, these plates enable the investigation of optimal crystal growth conditions for subsequent X-ray diffraction analysis.

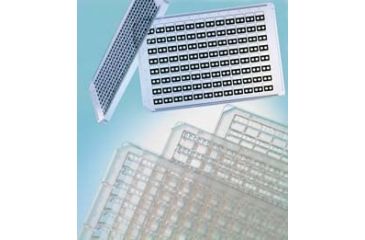

Plates feature optically clear sample wells and reservoirs with frosted bottoms. Standard plates offer three crystallization sample wells on an elevated platform adjacent to each of the 96 buffer wells, enabling high throughput screening with 288 crystallizations per plate. Low-profile plates offer one crystallization sample well per each of the 96 buffer wells, in a lower plate height for increased storage capacity. Plates are made of polystyrene (PS) for clarity or polyolefin for low birefringence (LBR). LBR plates are specially designed for use with polarized light. Plates with hydrophobic surfaces are suited for nanoliter crystallization of membrane proteins and allow tension of protein droplet to be adjusted. All plates have a footprint conforming to the ANSI/SBS 1-2004 Standard.
CrystalDrop microplate lids feature 192 predefined indentations that expand the application of CrystalQuick plates for additional hanging drop vapor diffusion. Lids enable simultaneous hanging and sitting drop vapor diffusion screens with up to three sitting drops and two hanging drops per reservoir. Printed, light-tight masks allow for improved detection of crystal growth, while grooves around each of the 96 locations facilitate individual air-tight sealing of each well with either silicone grease or any other adhesive. Lids are well suited for automated liquid delivery and liquid handling without drop movement or cross-contamination. Plates and lids must be purchased separately.
 Description: | PS, Standard |
Maximum WellVolume, µL: | 4.1 |
 Well Bottom Shape: | Flat |
 Well Top Shape: | Square |
 Greiner Bio-One No.: | 609101 |
Unit: | Case of 40 |
Properties: | |
Dimensions | |
Full-Height Plate: | 128L x 86W x 14.4H mm (5 x 33/8 x 5/8") |
Low-Profile Plate: | 128L x 86W x 8H mm (5 x 3 x 5/16") |
