Code: MA5-90D-45-0059

MPN: 45-0059

$11,299.00

Product Info for Harvard Apparatus VIP3000 Monitor Sys W/COM 45-0059

Harvard Apparatus VIP3000 Monitor Sys W/COM 45-0059 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Harvard Apparatus VIP3000 Monitor Sys W/COM 45-0059 / 82013-960 is part of a wide selection of Harvard Apparatus Electrophoresis system power supplies. Combining excellent quality with an affordable price, the Harvard Apparatus VIP3000 Monitor Sys W/COM 45-0059 / 82013-960 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Electrophoresis system power supplies please do not hesitate to contact our customer service for further guidance.image

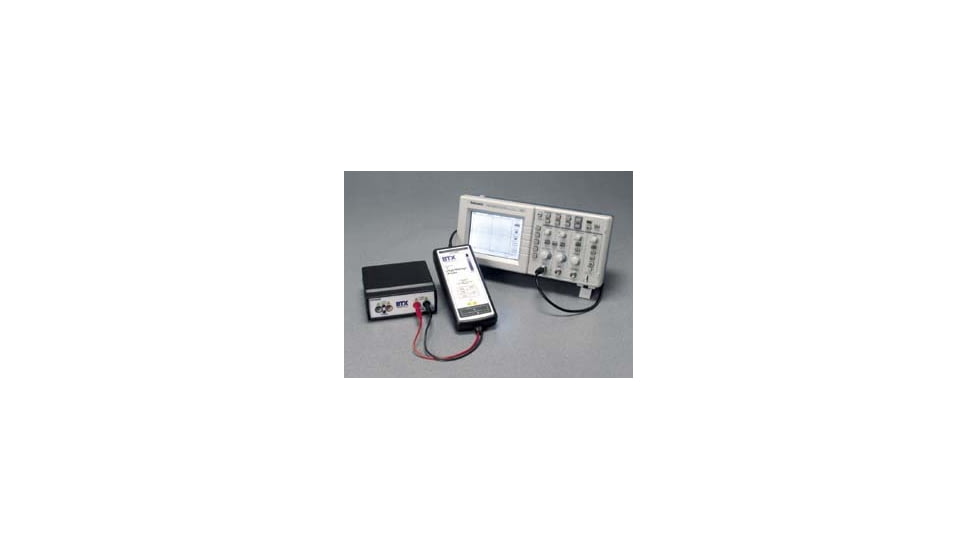

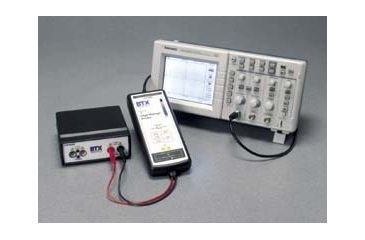

This system allows the researcher to confirm and track key electroporation parameters, including waveform, peak voltage, field strength, pulse length, pulse duration, and frequency in all electroporation generators with external pulse capabilities. These parameters are critical during optimization sample runs or troubleshooting. The system interfaces between the generator and the electroporation chamber, safety stand or plate handler. System consists of a high-voltage probe and a high-voltage interface box. The probe features an 88.9cm (35") long BNC cable and 30.5cm (12") input leads, and requires four AA cell batteries or connection to an AC adapter for power. The interface box features a 4mm (5/32") banana jack probe connection.

The optional communications module allows the user to send the waveform information directly to a printer or a computer. The optional digital storage oscilloscope is required to display waveforms.

Specifications for Harvard Apparatus VIP3000 Monitor Sys W/COM 45-0059:

Description:System with Oscilloscope, Communications Module, and Cables
BTX No.:45-0059
Unit:Each
Properties:
Probe Specifications
Attenuation:1:100/1:1000
Bandwidth:DC to 70MHz (-3dB)
Accuracy:±2%
Input Voltage
Differential Range:±700V (DC+Peak AC) or
Common Mode Range:±7000V (DC+Peak AC) or
Output Voltage
Max. Amplitude:±7V (into 50k ohm load)
Offset (typical):<±5mV
Ambient Operating Temperature:-10 to 40°C (14 to 104°)
Ambient Operating Humidity:25-85% RH
Weight:0.5 kg (1 lb.)
Dimensions:13.5L x 13.5W x 5.8H cm
Interface Box Specifications
Voltage:2500Vrms, 3500Vpk CAT II
Current (Max. Continuous):15A
Current (Peak):1000A for 100us
