Code: HC2-9PI-036150130
MPN: 36150130

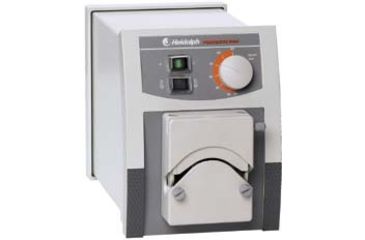

Heidolph Brinkmann Pump Peristaltc W/ADPTR PD5001 036150130 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Heidolph Brinkmann Pump Peristaltc W/ADPTR PD5001 036150130 / 82020-090 is part of a wide selection of Heidolph Brinkmann Peristaltic pumps. Combining excellent quality with an affordable price, the Heidolph Brinkmann Pump Peristaltc W/ADPTR PD5001 036150130 / 82020-090 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Peristaltic pumps please do not hesitate to contact our customer service for further guidance.![]()
Standard pump drives are ideal for use with applications involving corrosive solvents or sterilized media. Convenient large dials allow analog speed adjustment of condenser motor. Pump drives feature selectable rotation direction, overheat protection, and a housing that allows pump drives to be stacked up to three high. Electronic speed control is accurate to ±2%. Flow rates are accurate to ±5%.
All pump drives meet protection class IP 30 (DIN 40050) and are CE marked.
The SP pump heads allow fast and convenient tube changes and feature ball bearings and rollers for tubing with 1.6mm or 2.5mm wall thickness. The SP quick heads feature a stainless steel five-roller system to reduce pulsation. They can also be used with the SP quick d pump heads on the PD 5001 pump drive to attach two pump heads to one drive. The SP standard pump heads have stainless steel and polyamide rollers with a convex shape to protect organic cell cultures. The SP vario pump heads can be used in a clockwise direction of rotation only and feature stainless steel and aluminum rollers with a convex shape for organic cell cultures and a removable rotor for cleaning.
The PD 5001 pump drive with multi-channel adaptor may be used in combination with multi-channel pump heads and cassettes. Choose multi-channel pump heads that accept either four small cassettes, eight medium or four large cassettes, or 12 small cassettes.
| Â Description: | PD 5001 Pump Drive with Multi-Channel Adaptor |
| Â Speed Range, rpm: | 10-120 |
| Flow Rate,mL/min.: | 0.01-336 |
| Â Brinkmann No.: | 036150130 |
| Unit: | Each |
| Properties: | |
| Electrical: | 115V, 50/60Hz, 150W |
| Maximum Viscosity: | 10,000 cP |
| Permissible Ambient Temperature: | 0 to 40°C (32 to 104°F) |
| Dimensions: | 16.6W x 25.6D x 22.5H cm (69/16 x 10 x 87/8") |
