Product Discontinued by Manufacturer
Heidolph Brinkmann Synthesis 1 Multiple EVAP24 036190280 has been discontinued by Heidolph Brinkmann and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Vacuum or rotary evaporators yourself to try and find the perfect replacement for you!

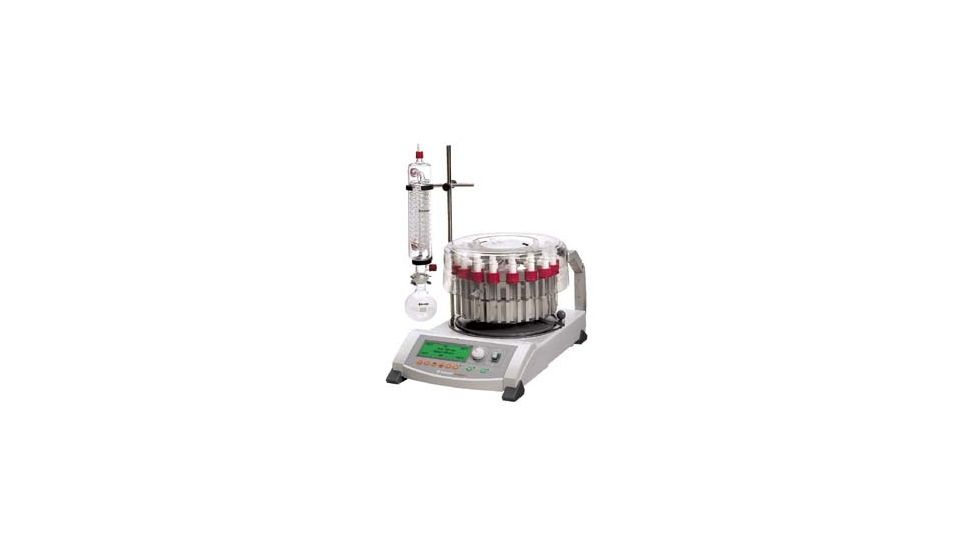

Product Info for Heidolph Brinkmann Synthesis 1 Multiple EVAP24 036190280
Heidolph Brinkmann Synthesis 1 Multiple EVAP24 036190280 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Heidolph Brinkmann Synthesis 1 Multiple EVAP24 036190280 / 83007-310 is part of a wide selection of Heidolph Brinkmann Vacuum or rotary evaporators. Combining excellent quality with an affordable price, the Heidolph Brinkmann Synthesis 1 Multiple EVAP24 036190280 / 83007-310 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Vacuum or rotary evaporators please do not hesitate to contact our customer service for further guidance.
Multiple evaporator systems are ideal for the simultaneous evaporation or concentration of up to twenty-four 10-50mL samples. The quick heat-up time ensures high distillation rates. A temperature sensor, positioned in the reaction vessel, provides precise temperature control and reproducible results.
Synthesis 1 base units provide exceptional visual control of the reaction and easy access to all samples due to the revolving, circular design of the reaction block. Units can be easily configured for many different applications. Solid construction ensures exceptional stability and smooth, constant shaking. Features include electronic speed control, an integrated collection tray for dripping condensate, and an RS-232 interface port.
Reaction blocks may be set to four different reaction temperatures in their four heating zones. Reaction blocks are supplied with reaction vessels and a vacuum distributor. The elastic reaction block elements ensure that the vessels will not rattle. Glass reaction vessels feature standard threads, a valve and connection for vacuum and inert atmosphere, and PTFE-coated septa. Sensor 89000-046 is for reaction blocks with 12 or 16 reaction vessels and is 170mm (611/16") long. Sensor 83007-312 is for reaction blocks with 24 reaction vessels and is 135mm (55/16") long. The hinged guard hood provides added safety and ensures constant sample temperature.
Ordering Information: The complete system includes a Synthesis 1 base unit, liquid reaction block and vessels, guard hood, four sensors for sample temperature measuring, a tube connection for vacuum and inert atmosphere, and a Synthesis 1 glassware set. Synthesis 1 base units include a reaction block and vessels. An additional condensation zone allows for the refluxing of solvents; optional chiller required. Contact your VWR representative for more information. VWR offers validation services including IQ, OQ, and PQ protocol development and execution (in US only); visit vwr.com or call 1-888-793-2300 for more details.
Specifications for Heidolph Brinkmann Synthesis 1 Multiple EVAP24 036190280:
| Description: | Holds Twenty-Four 10 mL Reaction Vessels |
| Brinkmann No.: | 036190280 |
| Unit: | Each |
| Properties: | |
| Speed Range: | 100-1000 rpm |
| Orbit Diameter: | 3 mm |
| Heating Power: | Approx. 1000W |
| Temperature Range: | Ambient to 160°C (320°F) |
| Control Accuracy: | ±1°C in aluminum block |
| Electrical: | 115V, 50/60Hz |
| Footprint Dimensions: | 31W x 50D cm (121/4 x 195/8") |
