Code: YK6-9NG-KDS210
MPN: KDS210

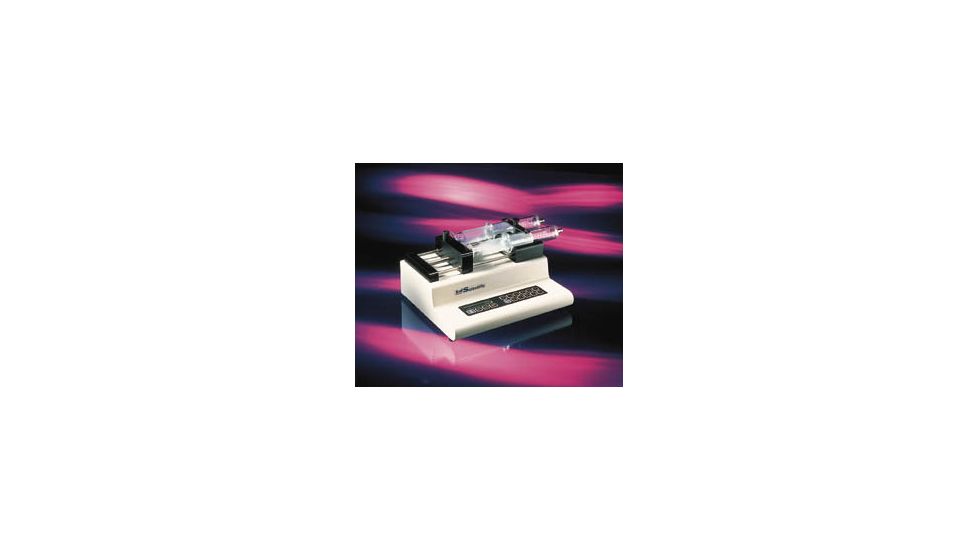

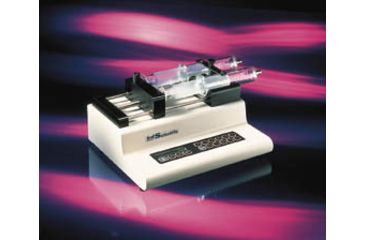

KD Scientific Pump Dual Syrng INFUS/WD 115V KDS210 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. KD Scientific Pump Dual Syrng INFUS/WD 115V KDS210 / 52459-008 is part of a wide selection of KD Scientific Laboratory vacuum pumps. Combining excellent quality with an affordable price, the KD Scientific Pump Dual Syrng INFUS/WD 115V KDS210 / 52459-008 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Laboratory vacuum pumps please do not hesitate to contact our customer service for further guidance.![]()
These microprocessor-controlled syringe pumps are designed for applications requiring low, pulse-free flow rates. The dispensed volume is continuously displayed and when the preset volume has been dispensed, the pump shuts off automatically.
Model 100 is an inexpensive single-syringe pump that combines precision and simplicity. It is easy to use and durable. This pump incorporates a simple menu-driven set-up, permanent memory of last settings, and continuous dispense volume display.
Model 200 is a dual-syringe pump that has a broad speed range and holds a wide range of syringe sizes. It combines all of the features of the single-syringe pump but includes an optical encoder stall detection; built-in RS-232C interface for connecting up to 100 units; TTL interface for foot switch, computer, outputs for run indicator and valve control; and the ability to review or change settings during operation.
Model 210 is another dual-syringe pump, combining all of the features of the Model 200 with five operation modes, and independent rate and volume settings for both infusion and withdrawal.
Model 220 and Model 230 are ideal for applications requiring multiple syringes. Model 220 is based on the 200, and Model 230 on the 210, but both have been modified to accept up to ten syringes.
Infusion/withdrawal pumps 210P and 230P include an added keypad programmable option.
| Model 100 | Models 200, 210, 220, and 230 | |
| Minimum Flow Rate, | ||
| With 10 µL Syringe: | 0.21 µL/hr. | 0.001 µL/hr. |
| Maximum Flow Rate, | ||
| With 10 mL Syringe: | 125 mL/hr. | 21 mL/hr. |
| With 60 mL Syringe: | 426 mL/hr. | 71 mL/min. |
| With 140 mL Syringe: | - | 147 mL/min. |
| Linear Force: | 9 kg (20 lbs.) | 18 kg (40 lbs.) |
| Advance Per Microstep: | 0.529 micron (1/2 step) | 0.165 micron (1/16 step) |
| Maximum Step Rate, | ||
| (1/2 Step): | 400 steps/sec. | 1600 steps/sec. |
| Minimum Step Rate: | 1 step/3 sec. | 1 step/30 sec. |
| Accuracy: | ±<1% | ±<1% |
| Reproducibility: | ±<0.1% | ±<0.1% |
Ordering Information: For an optional keypad programmable feature for Models 200 and 220, contact your VWR sales representative. Pumps with a multiple syringe capacity can hold four with volumes of 100-140mL, six with volumes of 20-60mL, and ten with volumes of 10µL-10mL.
| Â Description: | Model 210 |
|  Capacity: | Two 10µL-140mL Syringes |
| Dimensions,L x W x H, cm (in.): | 28 x 23 x 14 (11 x 9 x 51/2) |
| Weight,kg (lbs.): | 4 (9) |
| Â KD Scientific No.: | KDS210 |
| Unit: | Each |
