Code: I0-9SL-TZ3160
MPN: TZ3160
Laboratory Synergy Dosing Uint 50ML TZ3160 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Laboratory Synergy Dosing Uint 50ML TZ3160 / 13502-844 is part of a wide selection of Laboratory Synergy Titration equipment. Combining excellent quality with an affordable price, the Laboratory Synergy Dosing Uint 50ML TZ3160 / 13502-844 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Titration equipment please do not hesitate to contact our customer service for further guidance.![]()

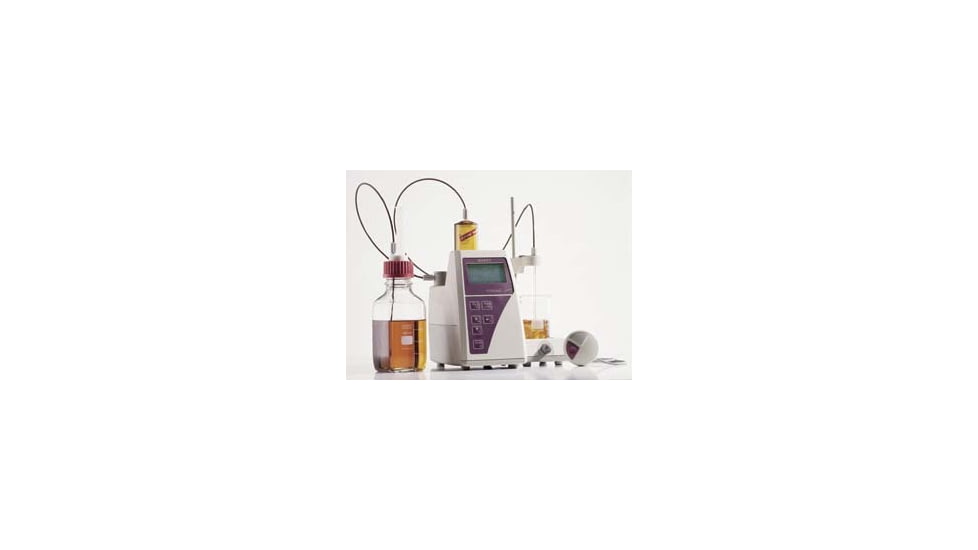

The TITRONIC universal titrator allows you to perform dosing operations as well as manual titrations. Dosing volume and speed are adjusted by the touch of a button. The integrated 20mL or 50mL dosing units with ultraviolet protection sleeve fill themselves automatically. Perform manual titrations using the hand control element, which provides 0.01 increments and several different titrating speeds. The high-precision cylinder made of DURAN* borosilicate glass and the motor-driven, chemically-resistant 3/2-port directional compressed-air valve guarantee accuracy. An LCD display with a large scale, background illumination, and contrast adjustment ensures that you can read the results.
The two RS-232C interfaces allow connection to a printer or PC. The interfaces allow the address setting to be made automatically or manually. For complex dosing and titration processes, the “daisy chain” option can be used to connect up to 16 burets in series; simply connect the units to one another via the additional RS-232C interface.
The titrator includes a keyboard with six keys on the unit to carry out dosing operations and adjust the pretitrating volume and other parameters. All parts that may come into contact with solvents are manufactured from chemically-resistant materials.
| Description: | Replacement Dosing Unit, 50 mL |
| Lab Synergy No.: | TZ3160 |
| Unit: | Each (50 ML) |
| Properties: | |
| Volume Display: | 00.00-999.9 mL |
| Resolution | |
| at Volumes <100 mL: | 0.01 mL |
| at Volumes 100-1000 mL: | 0.1 mL |
| at Volumes >1000 mL: | 1.0 mL |
| Dosing Speed | |
| with 20 mL Unit: | 0.1-40 mL/min. |
| with 50 mL Unit: | 0.1-100 mL/min. |
| Filling Time: | 30 to 999 seconds, adjustable |
| Pre-Titrating Volume: | 0.1-99.99 mL |
| Increment Volume: | 0.01-999.99 mL |
| Ambient Temperature: | 10 to 40°C (50 to 104°F) |
| Dimensions*: | 31H x 13.4W x 20.5D cm |
| Unit Weight: | 2.1 kg (4.6 lbs.) |
| Electrical: | 115V, 50/60Hz |
| *With dosing unit but without stirrer. | |
