Laboratory Synergy Electronic Condenser Peltronic 69 99 05

Laboratory Synergy Electronic Condenser Peltronic 69 99 05 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Laboratory Synergy Electronic Condenser Peltronic 69 99 05 / 89041-804 is part of a wide selection of Laboratory Synergy Laboratory adapters or connectors or fittings. Combining excellent quality with an affordable price, the Laboratory Synergy Electronic Condenser Peltronic 69 99 05 / 89041-804 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Laboratory adapters or connectors or fittings please do not hesitate to contact our customer service for further guidance.

The vacuum local area network accommodates the individual configuration of virtually all common vacuum applications and offers significant advantages over centralized systems. The network can supply a number of ports on a working bench, a row of fume hoods, or an entire laboratory through the use of a single vacuum pumping unit. VACUU-LAN is suitable for installation into new laboratories or for retrofitting into existing laboratories and workspaces. The VACUU-LAN system provides a reduction of uncontrolled emissions and minimizes the risk of forming hazardous mixtures. Pumping speed and ultimate vacuum can also be chosen according to actual demand, resulting in a precisely adapted supply. The system can be easily expanded, and all ports may be upgraded.

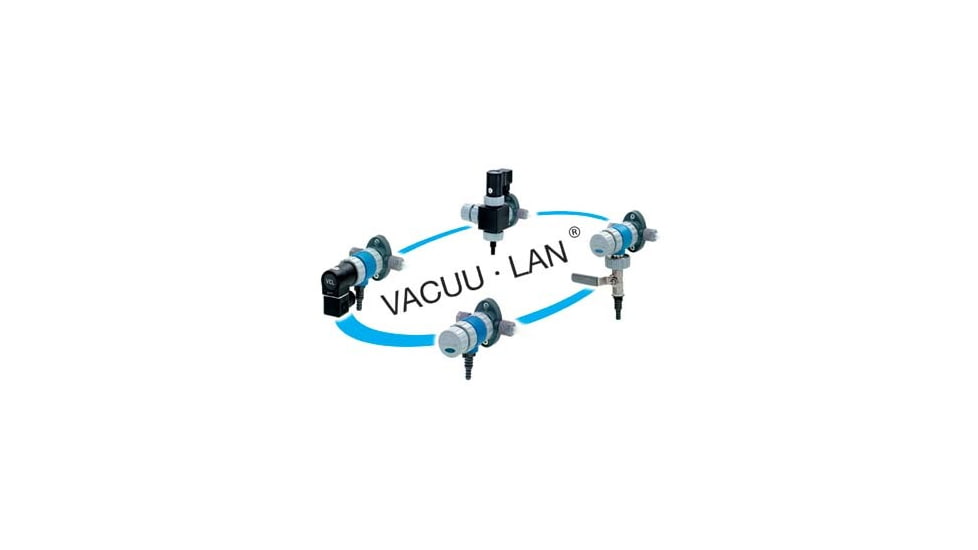

VACUU-LAN components distribute the vacuum generated by the pumping unit to the individual workplaces. Mounting types vary according to the specific workstation requirements. Port fittings are available for use as surface mounts, concealed mounts, or fume hood mounts. Components feature integrated non-return valves with high effectiveness against interference or cross contamination. Each vacuum port is controlled by an individual shut-off/flow control module. These modules are available with manual or automatic activation.

Chemistry pumping units act as the servers for the vacuum local area network. They consist of an oil-free diaphragm pump, optimized for mechanical ruggedness and chemical resistance, and fitted with an inlet catchpot (AK) and an exhaust waste vapor condenser (EK). Models PC 500 and PC 600 LAN feature a digital vacuum controller for extensive vacuum management features. The vacuum controller features a precise vacuum gauge, flexible parameter adjustment, easy menus, and interactive communication via RS-232 interface.

An electronic upgrade package is available for each individual vacuum port. This provides advanced vacuum control and allows the setting of customized vacuum levels. Benefits include improved process control and environmental protection through increased solvent recovery. Upgrade systems feature precise two-point vacuum control (mbar, Torr, or hPa), analog and digital pressure displays, manual/semi-automatic determination of vacuum setting, and automatic setting of pressure intervals with manual override options. This results in a reduction of foaming and boiling retardation due to fast valve response. Vacuum controller CVC 2^II must be used in connection with solenoid valve VCL C3.

The Peltronic electronic condenser collects exhaust vapor from the VACUUBRAND vacuum system with nearly 100% recovery, without the need for cold water or a drain. Solvent is collected in a 500mL coated borosilicate glass vessel. The condenser temperature is automatically controlled to a constant 10°C (50°F). Condenser mounts directly to the VACUU-LAN pump with no additional space required. Weight (without cable): 4.3kg (9.5lbs.). Dimensions: 17.5x17.9x39.2cm (6⁷/₈x7x15⁷/₁₆").

Specifications for Laboratory Synergy Electronic Condenser Peltronic 69 99 05:

(Please note that the description and stock photo may not correspond to the specific model listed above)
