Code: NF9-9JM-27889020
MPN: LCB 4725

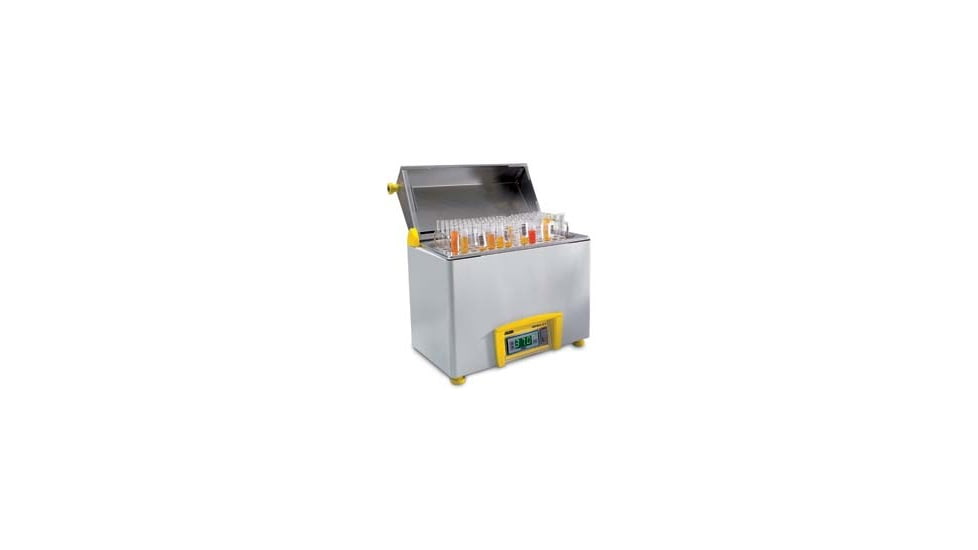

Lauda-Brinkmann Water Bath Aqualine Model AL12 27889020 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Lauda-Brinkmann Water Bath Aqualine Model AL12 27889020 / 98000-106 is part of a wide selection of Lauda-Brinkmann Water baths. Combining excellent quality with an affordable price, the Lauda-Brinkmann Water Bath Aqualine Model AL12 27889020 / 98000-106 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Water baths please do not hesitate to contact our customer service for further guidance.
Safe, durable water baths feature an integrated digital controller keypad with an LED that displays the temperature to 0.1°C. An embedded holder protects internal electronics, and a temperature cut-off function ensures samples will not be harmed if the temperature exceeds the desired point. The heating elements are restricted to the area below the bath vessel, ensuring homogenous temperature allocation and no exposed heating coils. The heating systems also make it possible to operate the bath down to a minimum water level of 20mm from the bottom of the tank, creating more space in the bath for large vessels.
The tank is stainless steel with no welded seams and an exterior housing that features an electrostatic powder-paint finish and inner drip plates to prevent condensation. The internal chamber's corners are rounded for easy cleaning. A stainless steel hinged gable cover can be fixed in open position or removed completely to optimize bench space. The maximum temperature indicated can be reached only with the cover in use. Stainless steel racks secure vessels within bath, and have polymer coated handles for safe contact.
Baths are CE marked.
 Model: | AL12 |
 Capacity: | 18.2 L |
Chamber Dim.,W x D x H, cm (in.): | 32.9 x 30 x 15Â (13 x 1113/16 x 529/32") |
Exterior Dim. w/Cover, W x D x H, cm (in.): | 37.2 x 33.5 x 32.6Â (1419/32" x 136/32 x 1213/16) |
Heater SurfaceLoad, W/cm2: | 2.2 |
Shipping Weight,kg (lbs.): | 8 (17.6) |
BrinkmannNo.: | 27889020 |
Unit: | Each |
Properties: | |
Working Temperature Range: | 5° above ambient to 95°C |
Ambient Temperature Range: | 5° to 40°C |
Temperature Stability: | ±2°C at 37°C |
Temperature Set Point Resolution: | 0.5°C |
Electrical | |
Bath: | 115V, 60Hz |
Model AL2: | 2.4 kW |
All Other Heaters: | 0.75 kW |
