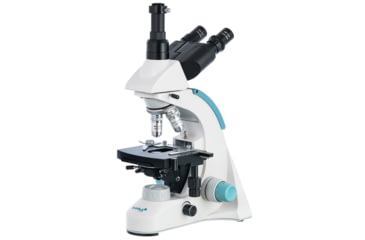

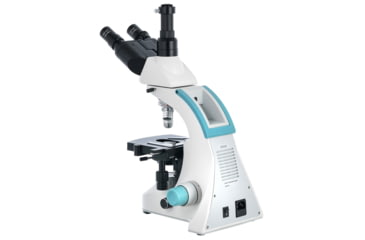

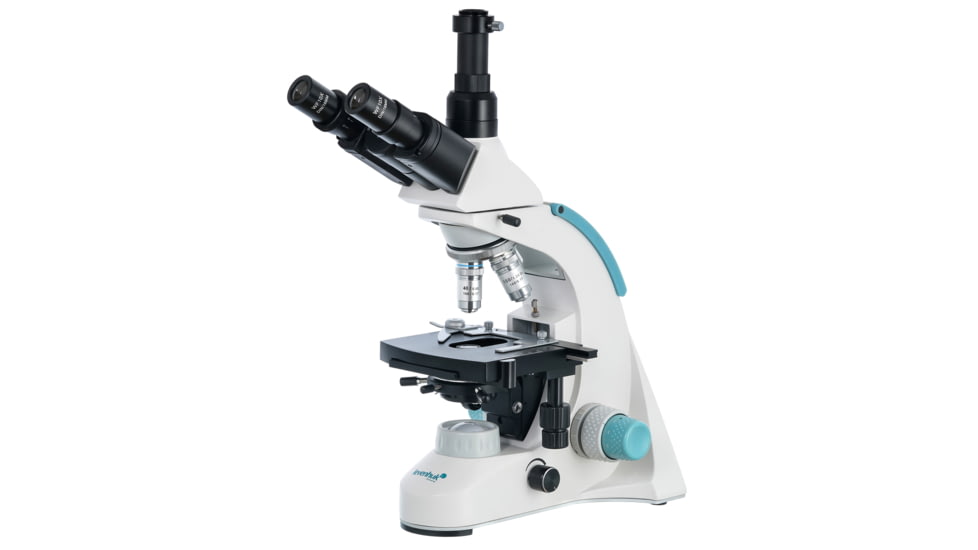

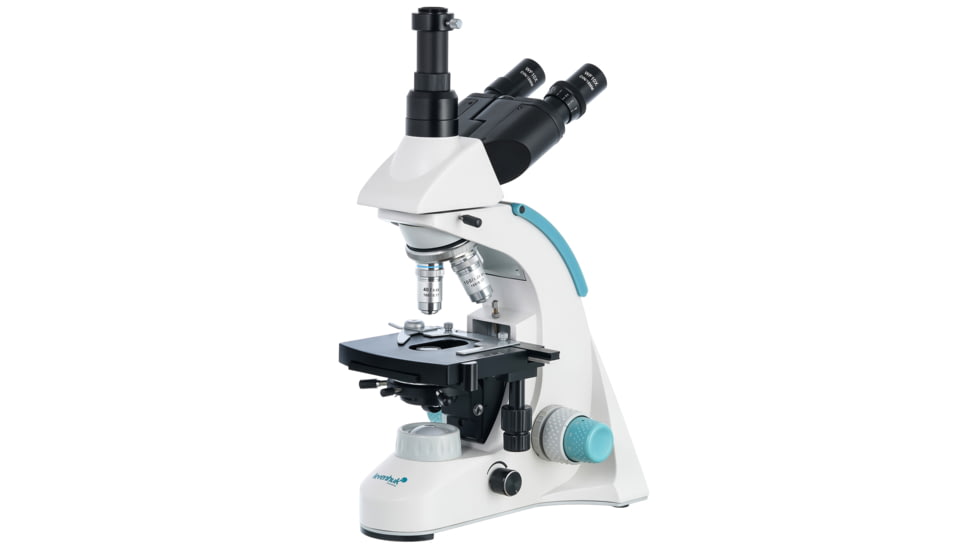

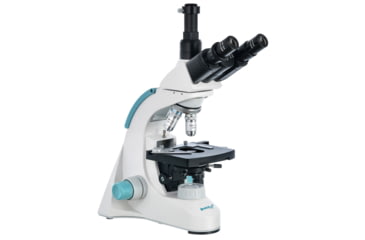

Levenhuk 40-1000x 900T Trinocular Microscope

Levenhuk 900T is a trinocular model, which allows for installing a digital camera. The microscope performs great in laboratory research and can be used for educational purposes. All observations are conducted in a bright field in incident light

oil immersion is available as well. The microscope can be used for general clinical, histological, cytological, bacteriological, and other microbiological research.

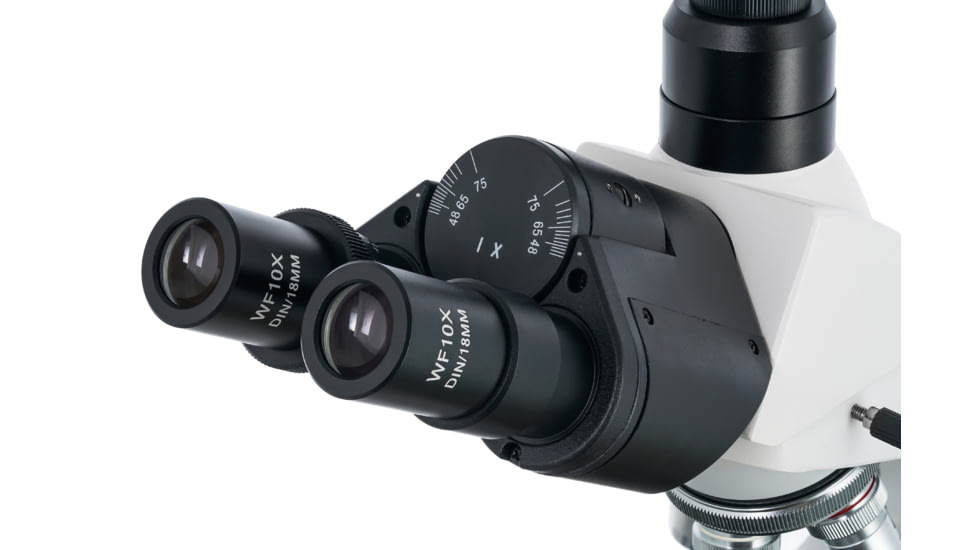

The microscope head consists of a binocular part for visual observations and a vertical tube for a video eyepiece. This allows you to simultaneously study the sample and record observations to the camera (the camera is purchased separately). The head can be rotated 360, which is convenient for group work. The wide-field achromatic optics provide magnification from 40x to 1000x. The kit includes 10x eyepieces and 4x, 10x, 40x, and 100x objectives. The 40x and 100x objectives are equipped with spring-loaded frames. There is fine and coarse focusing adjustment.

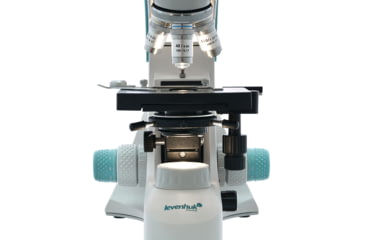

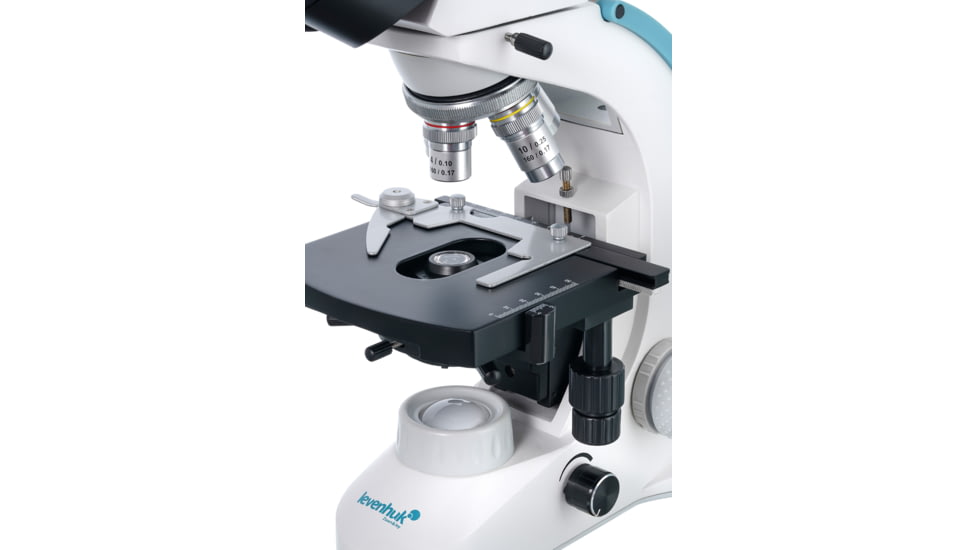

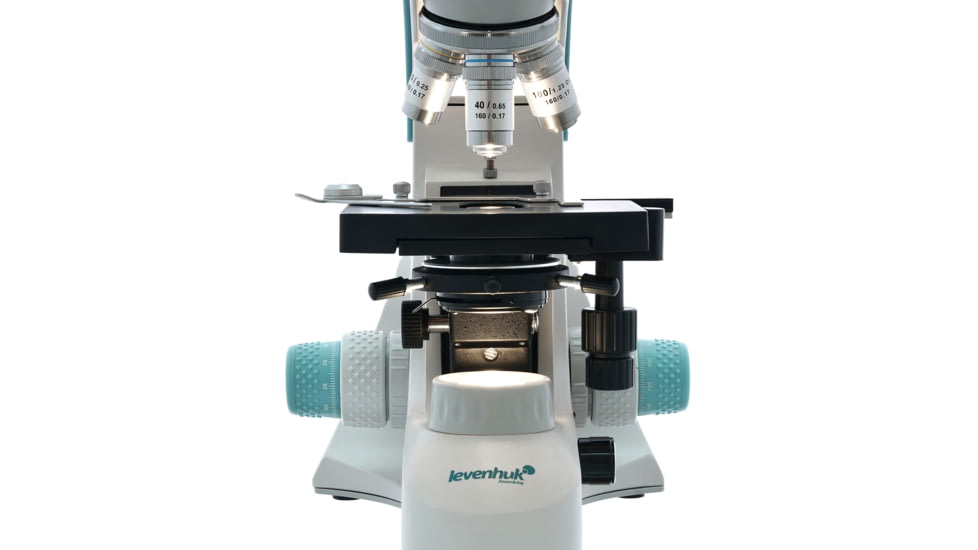

The microscope stage is equipped with a mechanical scale. Under the stage, there is an Abbe condenser with an iris diaphragm and a filter holder. Powerful LED lighting is supplemented by a collector, the brightness of the lighting is adjustable. AC power is used for the power supply.

Features of Levenhuk 40-1000x 900T Trinocular Microscope

• Eyepiece tube diameter, mm: 23.2
• Eyepieces: WF10x/18mm (2 pcs)
• Objectives: Achromatic 4x, 10x, 40xs, 100xs (oil)
• Revolving nosepiece: 4 objectives
• Interpupillary distance, mm: 48-75
• Stage, mm: Mechanical double-layer, 130x120mm, with a mechanical scale
• Stage moving range, using focusing mechanism, mm: 70/30
• Eyepiece diopter adjustment, diopters: ±5
• Condenser: Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
• Diaphragm: Iris
• Focus: Coaxial, coarse (25mm) and fine (0.002mm)
• Brightness adjustment: Yes
• Power source: 110-220V, via a network adapter
• Light source type: With a collector, 3W LED
• Filters: Blue, green, yellow
• General use product. May be used by kids over 3 years old

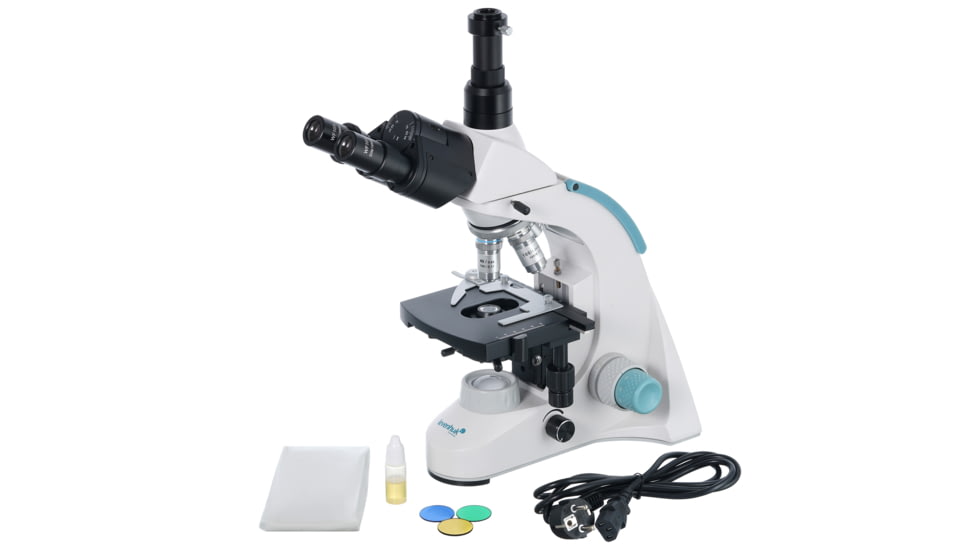

Package Contents:

• Levenhuk 40-1000x 900T Trinocular Microscope
• 4x 10x 40xs 100xs (oil) achromatic objectives
• WF10x/18mm eyepieces (2 pcs)
• Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
• Filters: Blue, green, yellow
• Fuse
• C-mount
• Vial of immersion oil
• Power cord
• Dust cover
• User manual and lifetime warranty
