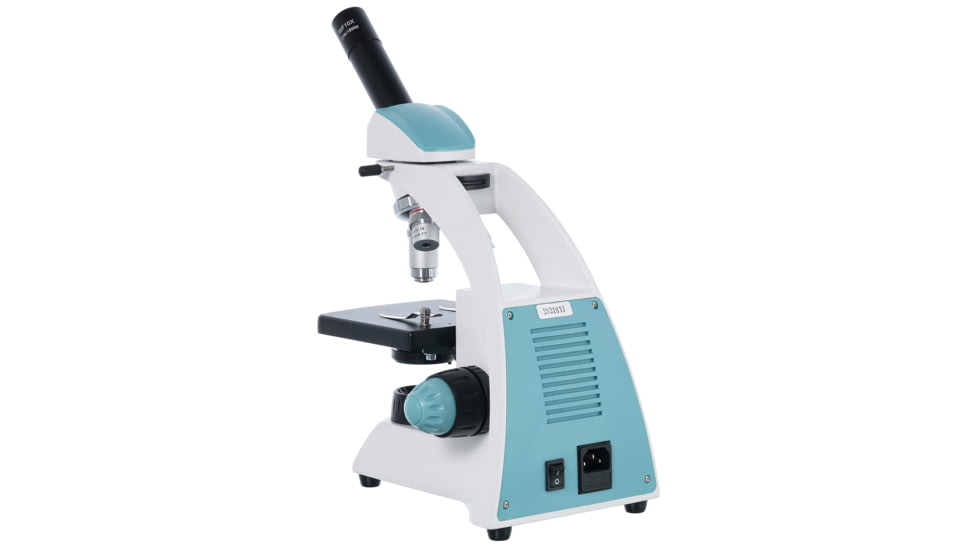

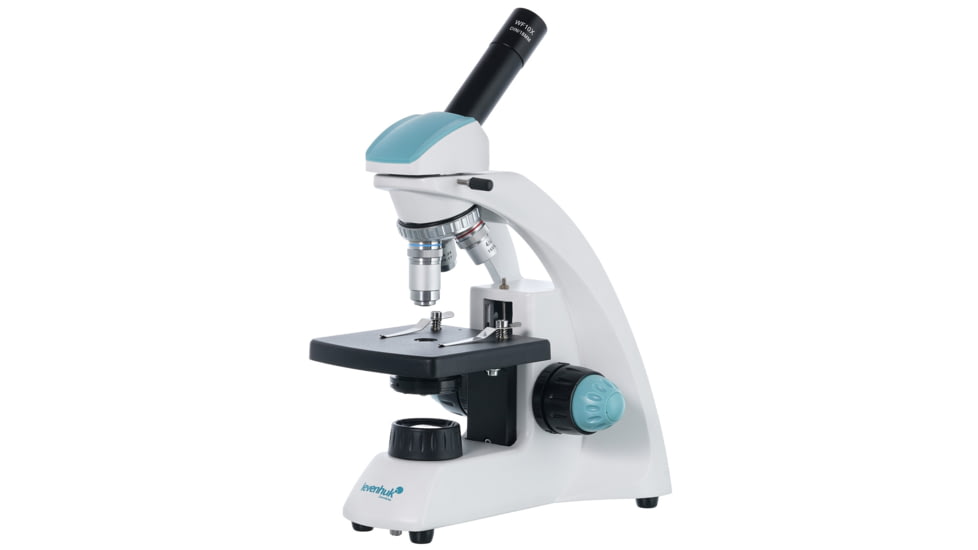

Levenhuk 40-400x 500M Monocular Microscope

The Levenhuk 500M laboratory microscope is a perfect choice for work in the field of histology or any other microscopy research that requires staining samples. Due to halogen lighting, the microscope delivers brighter colors and makes observed microscope slides more contrasted. This microscope is excellent for any bright field microbiological research in incident light.

A monocular head is conveniently inclined at 45 and is 360 rotatable. A wide-field eyepiece with 10x magnification provides a good view. The achromatic objectives magnify 4, 10, and 40 times. The 40x objective is also equipped with a protective spring-loaded front lens frame. The microscope magnification varies from 40 to 400 times, which is excellent for studying large and medium-sized structures.

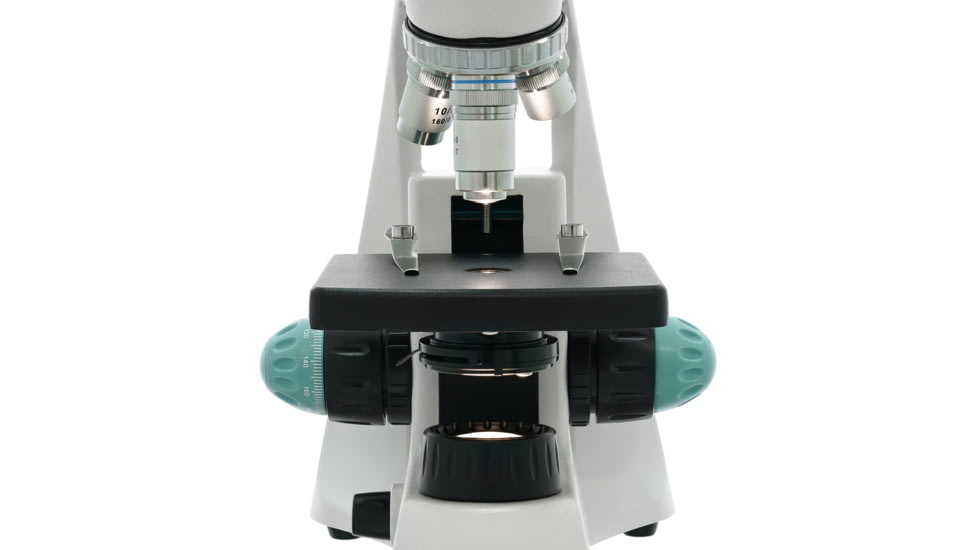

The microscope stage is equipped with standard clips. Next to the stage, there are coarse and fine focusing knobs. The lighting unit is located at the bottom, right under the bright field condenser with an iris diaphragm and a filter holder. The lighting consists of a halogen bulb with a collector the brightness is adjustable. The lighting is powered by an AC power supply.

Features of Levenhuk 40-400x 500M Monocular Microscope

• Eyepiece tube diameter, mm: 23.2
• Eyepieces: WF10x/18mm with a pointer
• Objectives: Achromatic 4x, 10x, 40xs
• Revolving nosepiece: 3 objectives
• Stage, mm: 110x110, with clips
• Condenser: N.A. 0.65 with an iris diaphragm and filter holder
• Diaphragm: Iris
• Focus: Coaxial, coarse (30mm) and fine (0.002mm)
• Brightness adjustment: Yes
• Light source type: With a collector, halogen 6V/20W
• Filters: Blue, green, yellow
• Slot for installing an analyzer (an analyzer is not included)
• General use product. May be used by kids over 3 years old

Package Contents:

• Levenhuk 40-400x 500M Monocular Microscope
• 4x 10x 40xs achromatic objectives
• WF10x/18mm eyepiece (1 pc.) with a pointer
• Condenser N.A. 0.65 with an iris diaphragm and a filter holder
• Filters: blue green yellow
• Fuse
• Power cord
• Dust cover
• User manual and lifetime warranty
