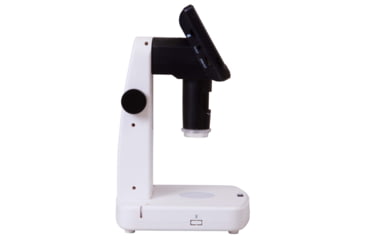

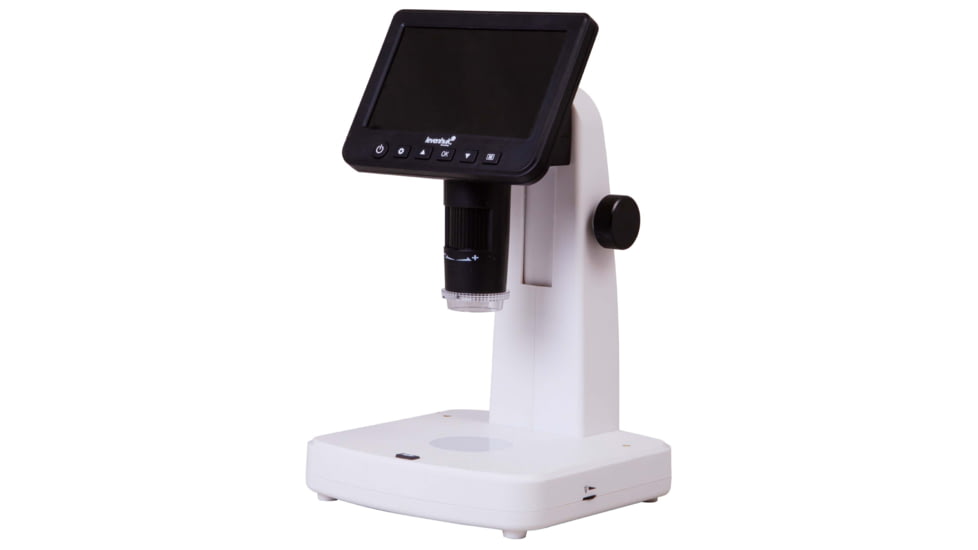

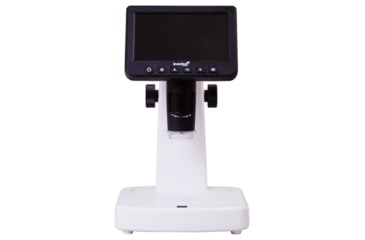

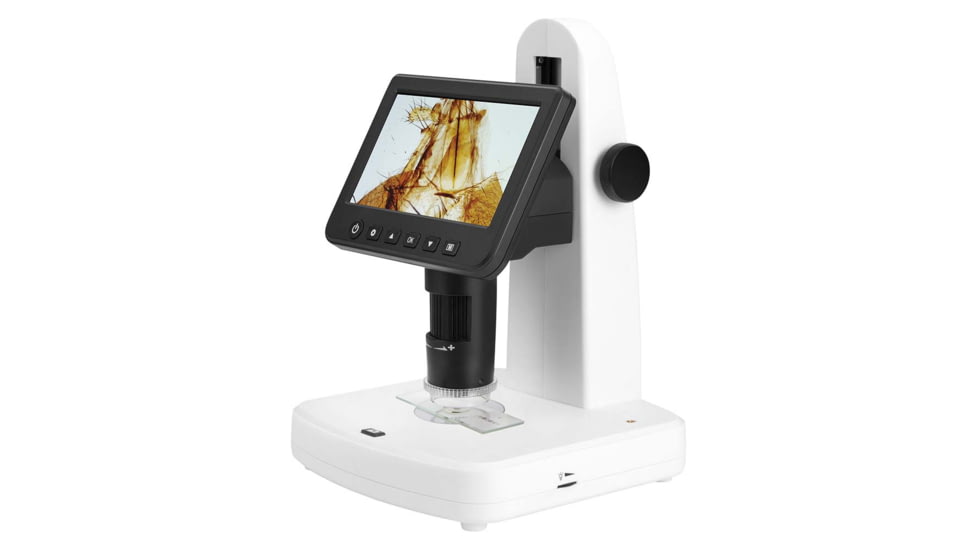

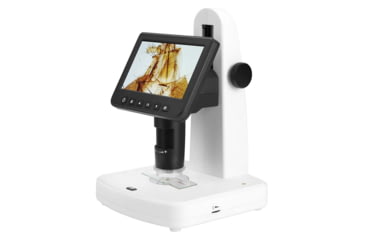

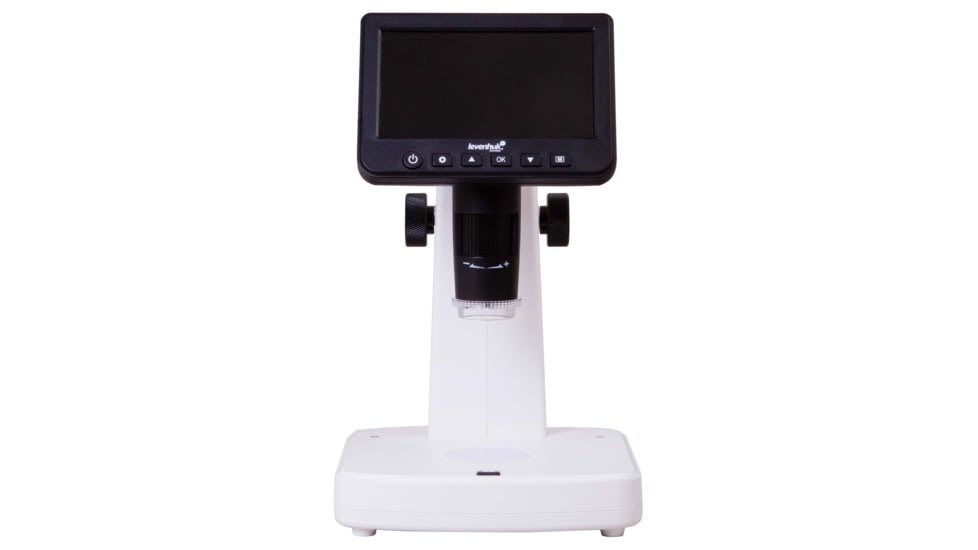

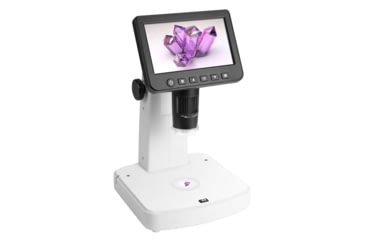

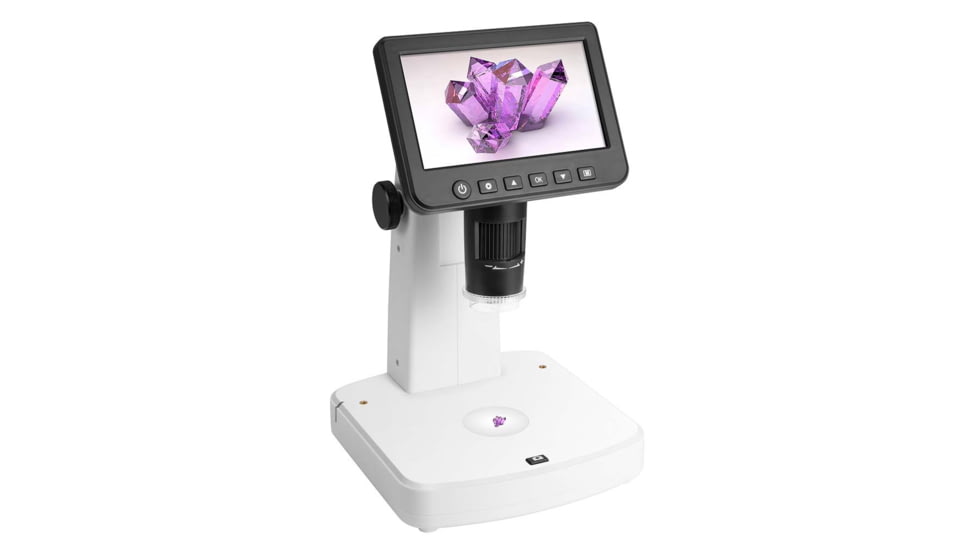

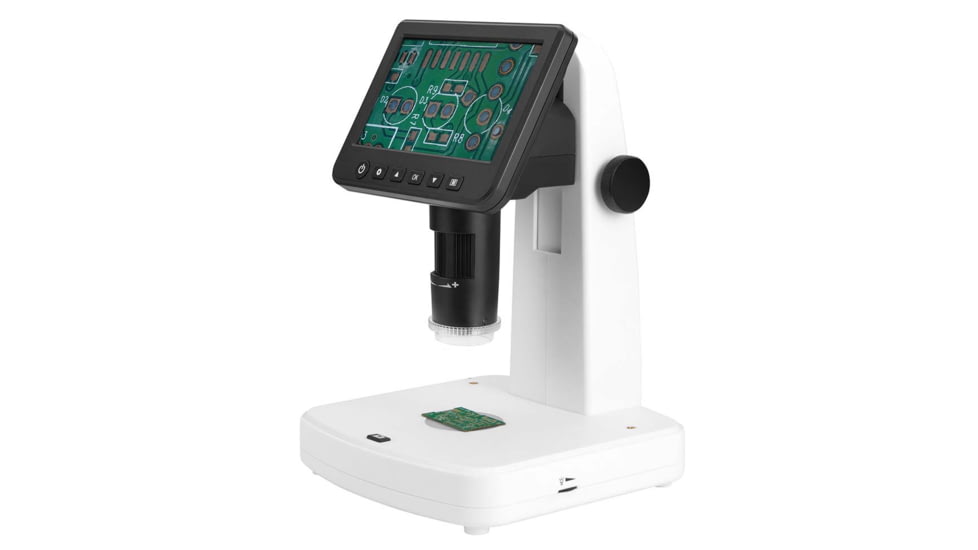

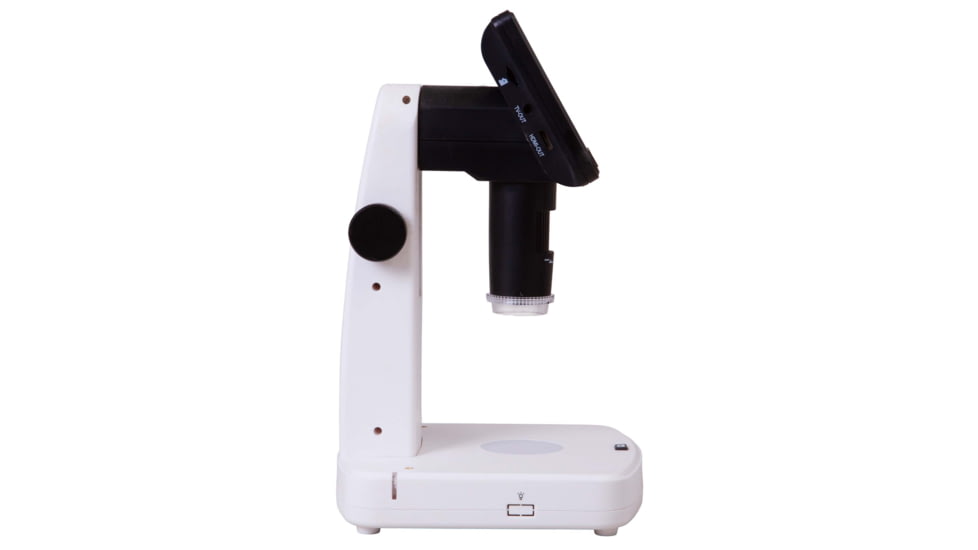

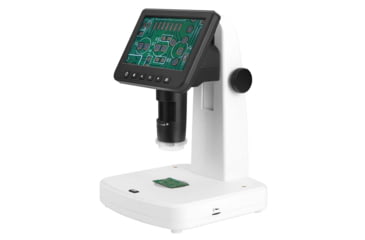

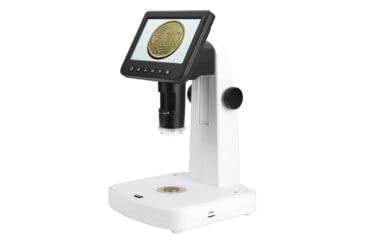

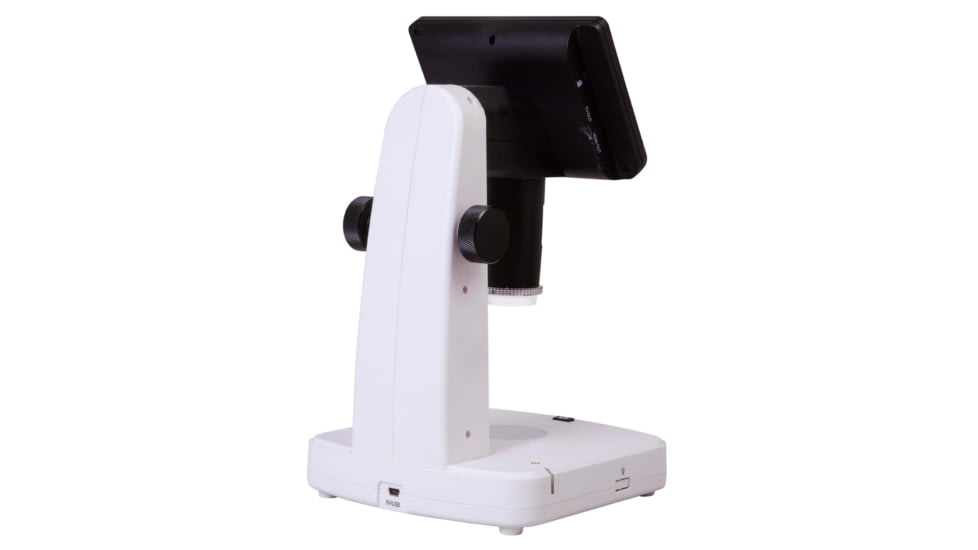

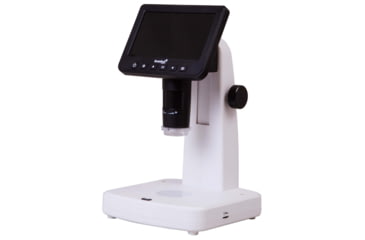

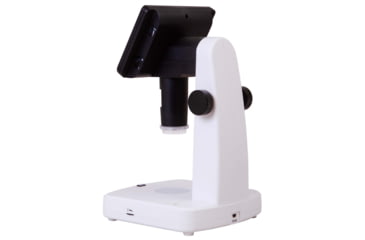

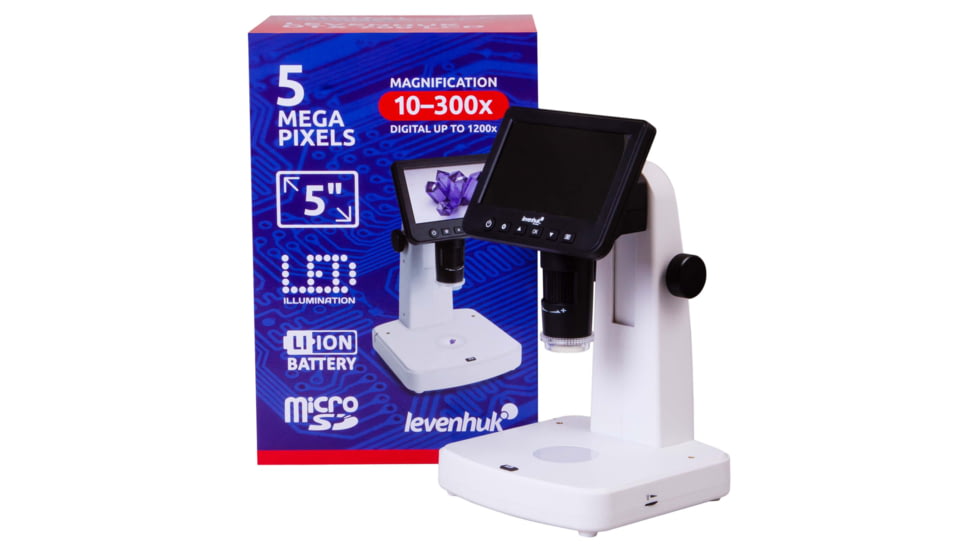

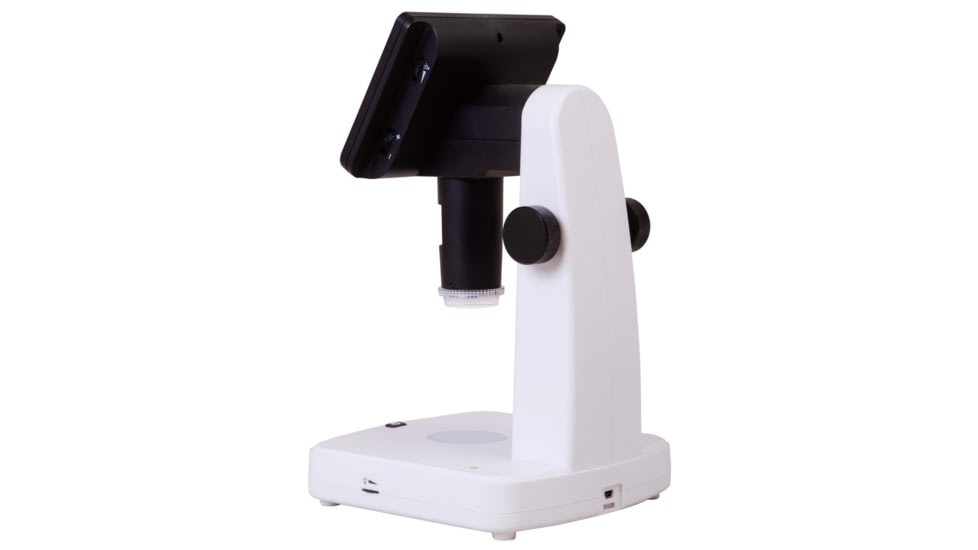

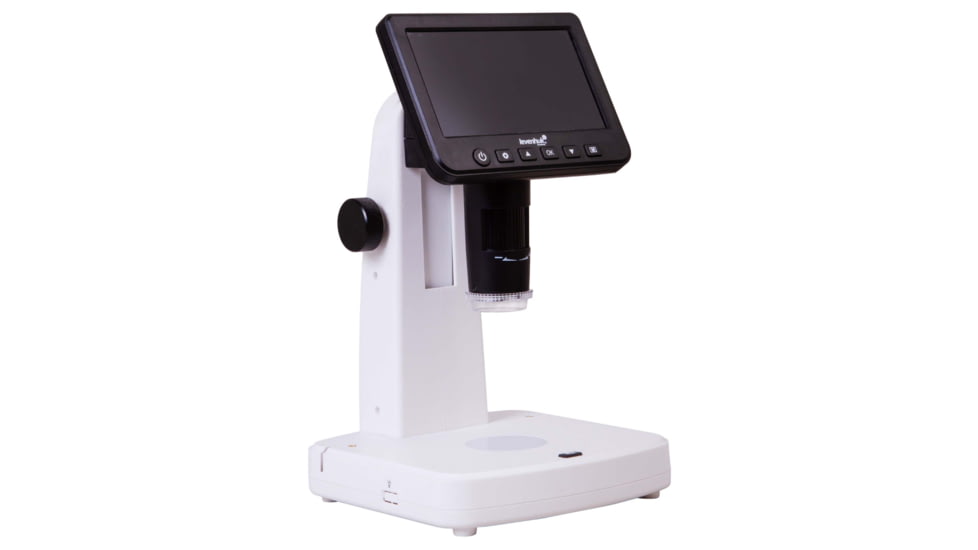

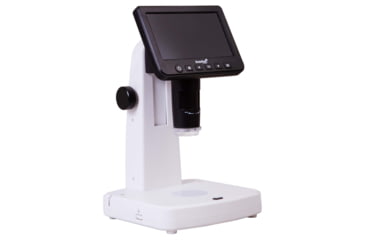

Levenhuk DTX 700 LCD Digital Microscope

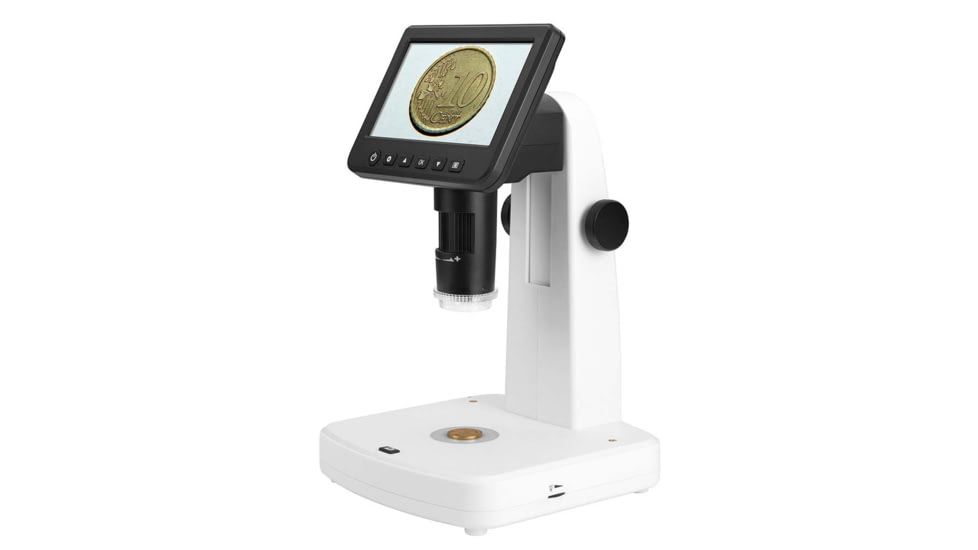

Levenhuk DTX 700 LCD Digital Microscope is designed for studying non-transparent objects. It is suitable for working with jewelry pieces, electronic plates, minerals, coins, and sections of metals. This microscope is also useful for home use, e.g. for studying insects and plants. Levenhuk DTX 700 LCD is equipped with an LCD screen, that reduces eyestrain during lengthy work, and it is more comfortable than looking through an eyepiece of a standard microscope.

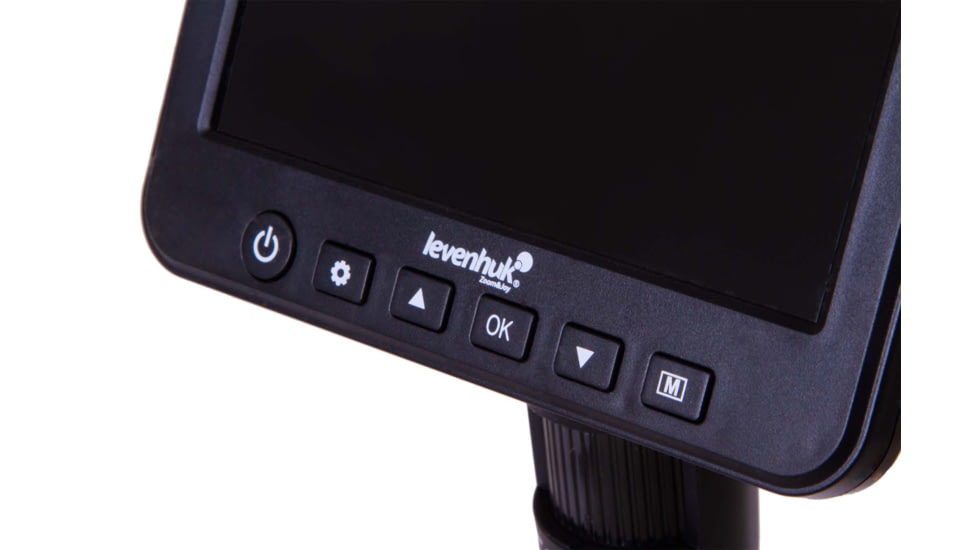

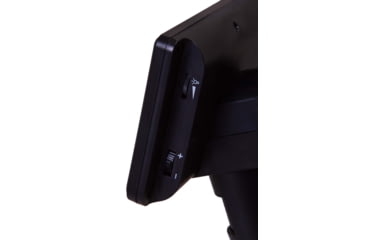

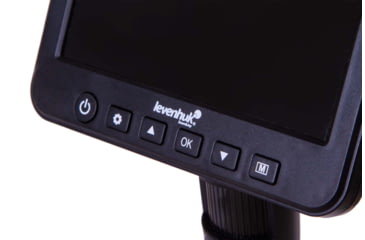

An image is formed by a 5M digital camera. The camera provides 10300x magnification, and an additional zoom allows for observing objects at up to 1200x magnification. A colorful and detailed image is transmitted to a built-in LCD screen. In addition, a built-in camera allows for capturing images and shooting videos. Control buttons are located right below the screen. They are used to set up photo and video quality, turn in and turn off time-lapse mode, choose circular video mode, and set the date and time.

This self-sufficient microscope does not require connecting to external devices. A memory card is required for saving photos and videos (purchased separately). The microscope can be connected to an external monitor, a TV, or a computer. The kit includes all the necessary cables and software. Note: the software that is installed in a computer allows for measuring objects (line, radius, diameter, three-point angle). This software also allows for adding extra images and texts on top of images captured by a microscope.

The illumination system of the microscope consists of 8 bright LED lights with adjustable brightness. There is a built-in polarizing filter, which reduces parasitic reflections when studying shiny metals.

The microscope is powered by an AC supply or a built-in battery, which provides up to three hours of continuous work.

Features of Levenhuk DTX 700 LCD Digital Microscope

• Head: color 12.7cm (5) LCD screen
• Optics material: optical glass
• Magnification, x: 10300, with a digital zoom 101200

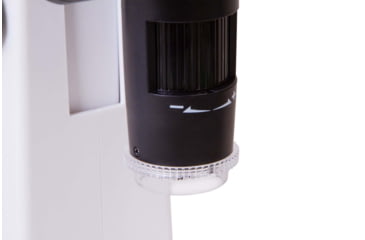

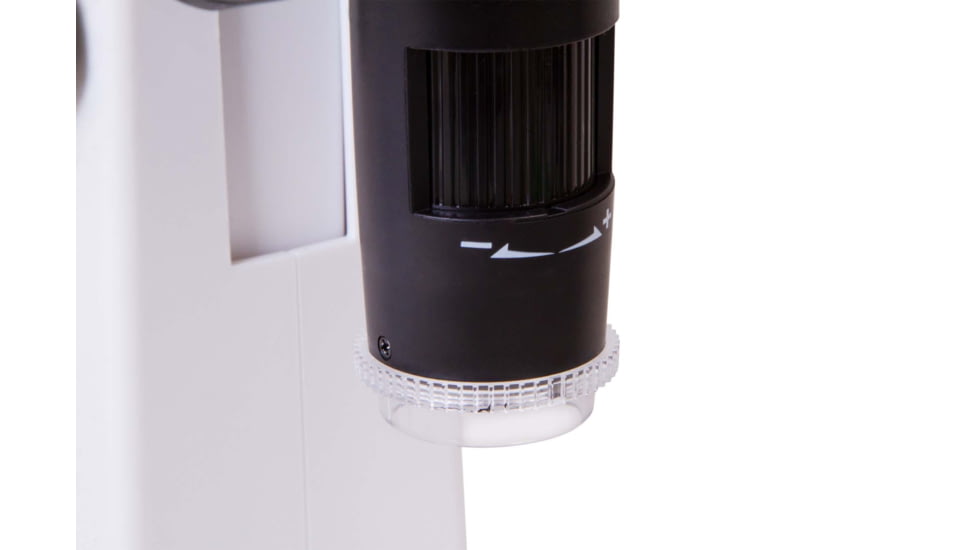

• Focus: manual, 570mm
• Body: plastic
• Backlight: LED

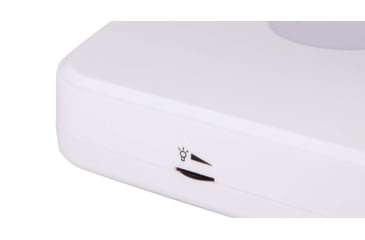

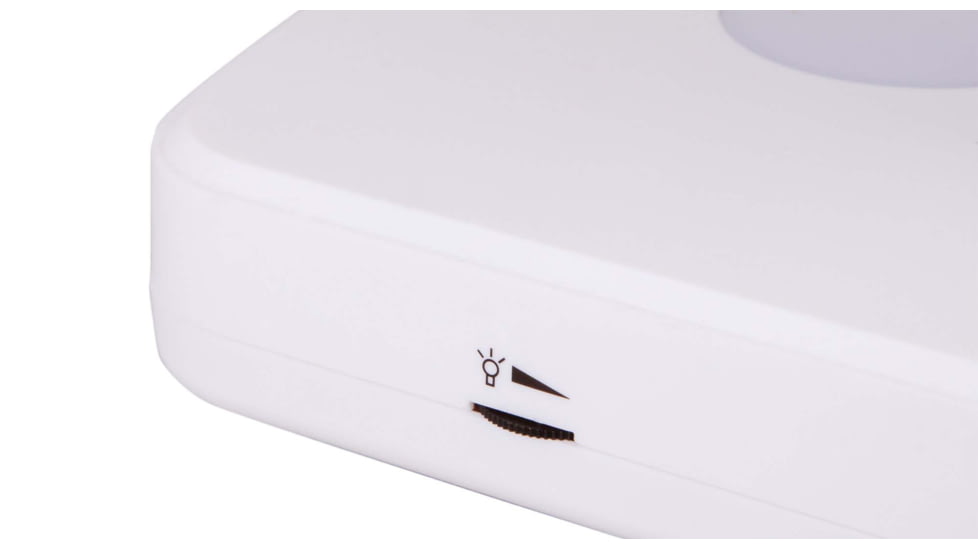

• Brightness adjustment: yes

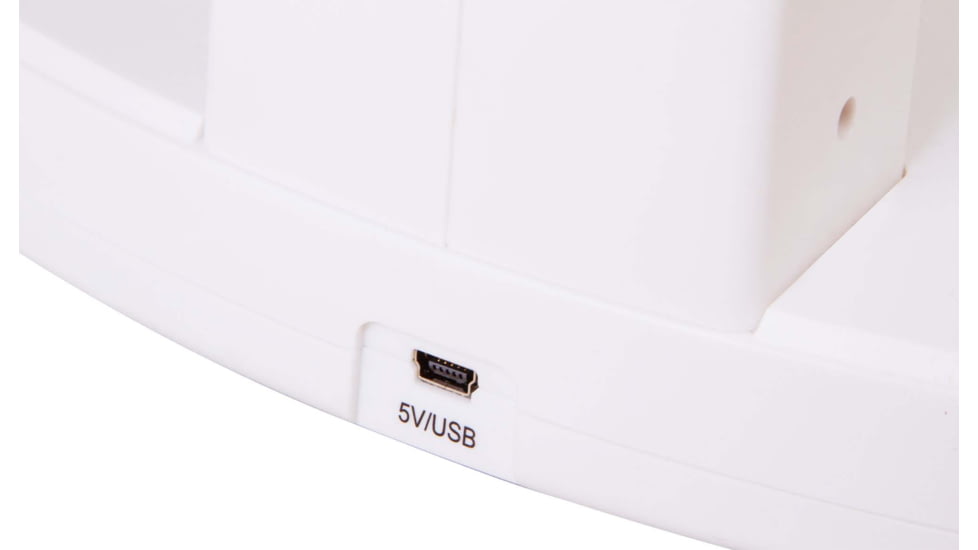

• Power source: 100240 V, 50/60 Hz; 5 V, 2 A output; built-in 3.7 V/2500 mAh Li-ion battery; work time: 3 hours, charging time: 7 hours
• Light source type: upper, 8 LEDs
• Filters: polarizing
• Operating temperature range, C/F: -10+65/14149
• Additionally: research method: bright field
• Megapixels: 5
• Video recording: yes
• Speed: 30fps
• Image format: . jpeg
• Software: photo and video capture and processing software with objects measurement feature

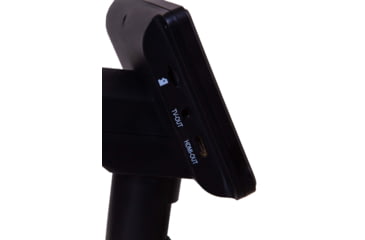

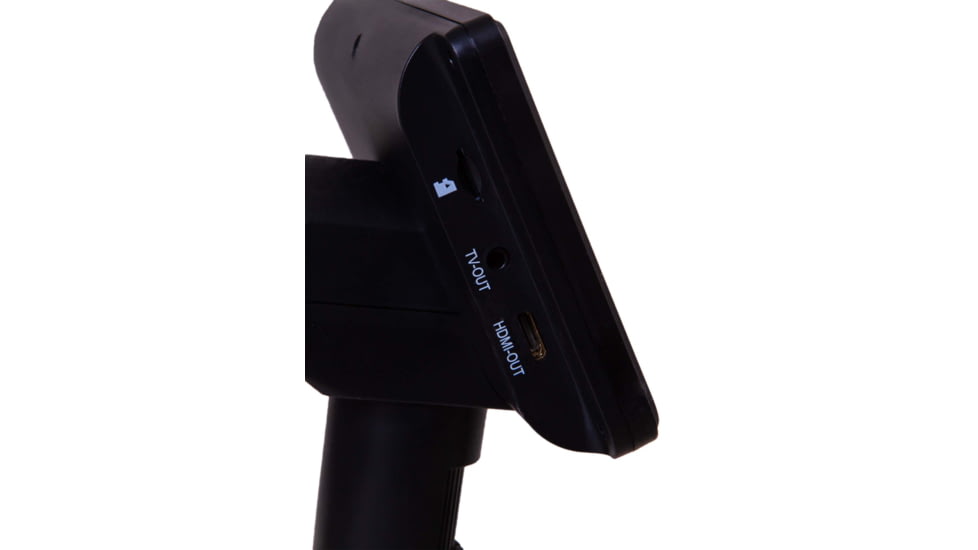

• Camera slot: USB 2.0, TV, HDMI
• System requirements: OS: Windows 7/8/10, Mac 10.14 and later; minimum P2 1GHz, 512MB RAM; 512MB video card USB 2.0 port, CD-ROM
• Usage: General use product. May be used by kids over 3 years old.

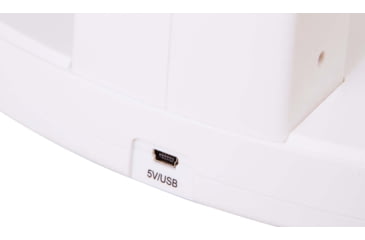

• Ability to connect additional equipment: microSD card up to 32 GB (not included); computer: via an USB cable (included); TV: via an AV cable (included)
• Software lanGauge: English, Russian, German, French, Spanish, Japanese, Chinese
• Video format: .avi
• Application: for applied research
• Maximum resolution: images: 12Mpx, 10Mpx, 8Mpx, 5Mpx, 3Mpx, 2Mpx; video: 1080p, 720p

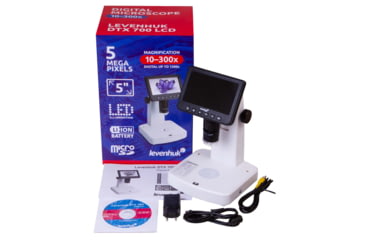

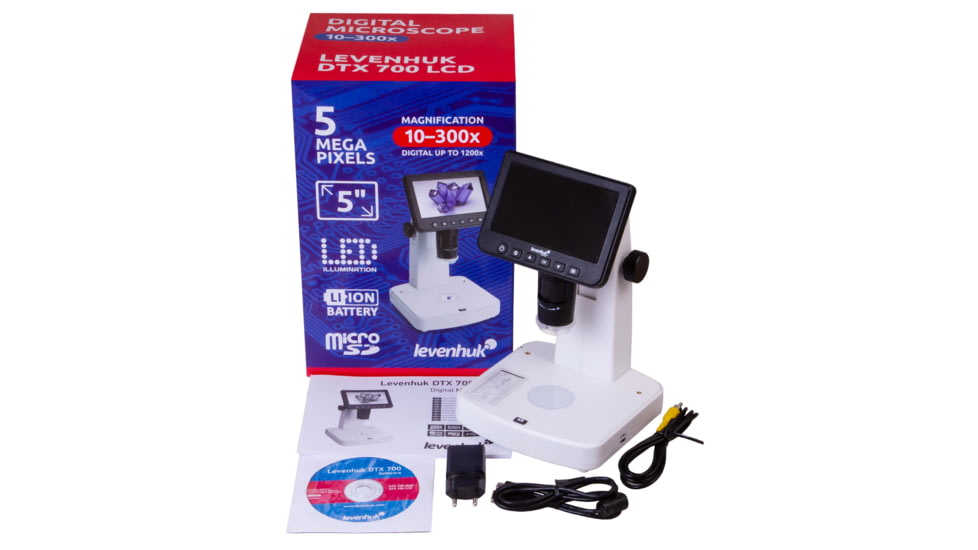

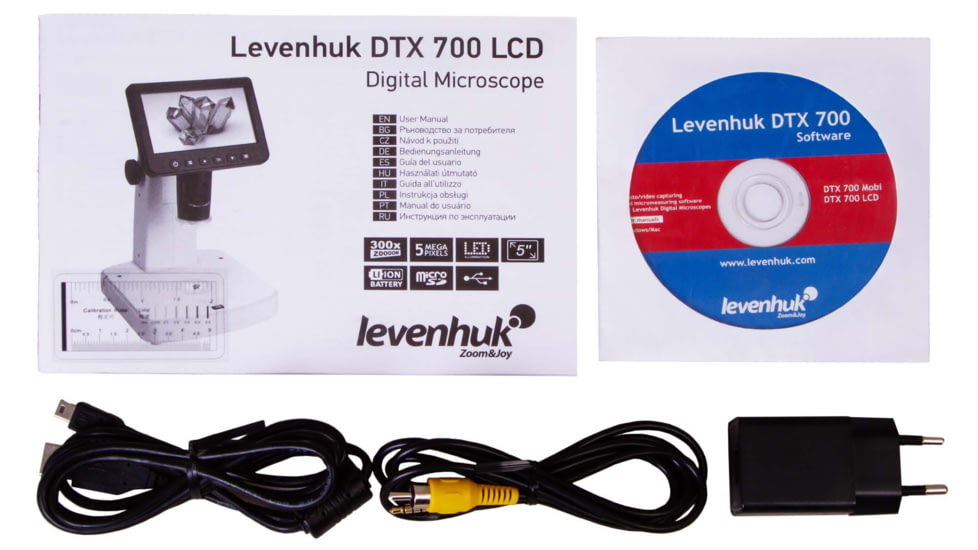

Package Contents:

• Levenhuk DTX 700 LCD Digital Microscope
• Adapter (100-240 V 50/60 Hz)
• USB cable
• AV cable
• Calibration scale
• Software CD
• User manual and lifetime warranty
