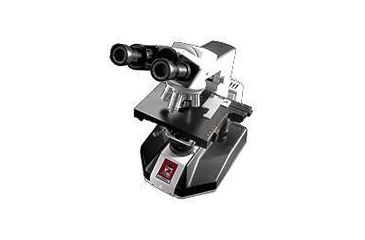

LOMO LABOROSCOPE™ AL-2000 Binocular Microscope, BF
Tap Tap to Zoom
Product No Longer Available
Unfortunately LOMO LABOROSCOPE™ AL-2000 Binocular Microscope, BF is not listed by LabPlanet.You can also explore other items in the Microscopes yourself to try and find the perfect replacement for you!
Product Info for LOMO LABOROSCOPE™ AL-2000 Binocular Microscope, BF
Settingthe New Performance Standard in Laboratory and Clinical Microscopy...
LOMO has designed the LABOROSCOPE™Series with advanced features to guarantee durability and enhance the ease andconvenience of operation that is so important for laboratory and clinical work.
The elegant andefficient LABOROSCOPE™ combines the highest optical performance withunsurpassed mechanical quality. And, all LABOROSCOPES are backed by LOMO'sunique LimitedLifetime Warranty, the most comprehensive in the industry.
Offeringthe advantages of all three major contrast techniques - Brightfield, PhaseContrast, and Darkfield - and perfectly suited for photomicrography, theLABOROSCOPE™ always delivers sharp, crisp images, setting the new performancestandard in laboratory and clinical microscopy. These upright laboratorymicroscopes feature an advanced ergonomic design, Koehler illumination, andQ-Plan Achromatic objectives for uncompromised image quality during allBrightfield, Darkfield, and Phase Contrast observations.
Applications:
- Medical / Veterinary School
- Clinical Applications
- Physician's Office
- Public Health
- Veterinary Medicine
- Biological Sciences
- Agriculture / Aquaculture
| OPTICAL SYSTEM: 160mm Mechanical Tube Length, 45mm Parfocal Distance, 17.5X-1500X Magnification for Observation | ||
| HEAD | Binocular | 45° inclined, 360° rotatable. Magnification factor: 1X. IPD adjustment range: 55mm-75mm. DA for the left eyepiece: ±5 dpt. |
| STAND | Head Mount | Accepts heads and photo-attachments. |
| Stage Mount | Allows quick stage reinstallation with either right- or left-hand controls. | |
| Condenser Mount | Centerable. Rack-and-pinion focusing with tension adjustment and a safety stop. Condenser vertical movement: 25mm. Built-in filter holder (Ø33mm). | |
| Base | Sturdy and stable with four rubber feet. Raised armrest. Built-in solid-state power supply. Dimensions: 200mm x 250mm. Chemical and scratch resistant. | |
| FOCUSING | Coarse | Two large knurled knobs. Built-in slip clutch mechanism. Travel range: 27mm with 6.5mm of stage's vertical travel per full knob revolution. |
| Fine | Two large knurled knobs. Focusable over the entire range of the coarse focus with 0.250mm of stage's vertical travel per full knob revolution. | |
| NOSEPIECE | Quadruple | Built-in precision click stops for parfocality and parcentricity of the objectives. Dustproof. Chrome plated. Wide knurled grip. |
| STAGE | Mechanical | High-precision mechanical stage. Low coaxial X/Y controls. Size: 160mm x 140mm. Specimen cross-travel: 76mm x 30mm. Scale graduation: 1mm. Vernier Accuracy: 0.1mm. |
| CONDENSER | Brightfield | N.A. 0.9. Aplanatic. Chromatically corrected. Built-in aperture diaphragm. |
| Phase Contrast/ Darkfield | N.A. 0.B. Chromatically corrected, with three annulus rings, and Brightfield and Darkfield positions. Centerable with two alignment knobs. Built-in aperture diaphragm. | |
| ILLUMINATION | Koehler Halogen | Built in, 6V/25W. Continuous intensity regulation with integral on-off switch. 110V/220V voltage selector. Detachable UL/CSA listed power cord. |
| FILTERS | Set of six | Ø33mm. |
| Miscellaneous | Instruction manual, dust cover, spare bulb, pinhole insert, immersion oil (Type A, 1/4 oz). | |
LOMO LABOROSCOPE™ Microscopes are available in manydifferent configurations. Please follow thislink to see LOMO LABOROSCOPE™ Microscopeconfiguration table. A number ofmicroscope accessories is also available for this microscope in our online store.
