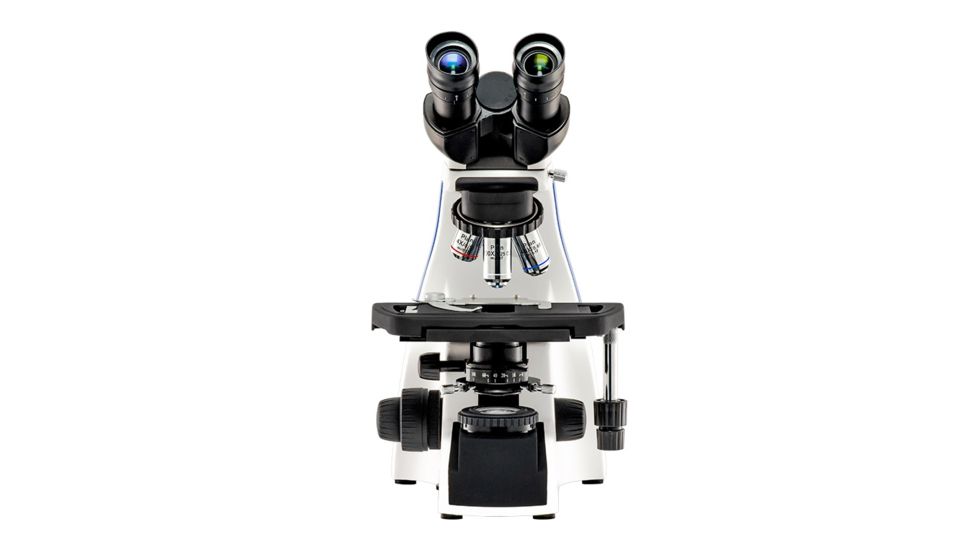

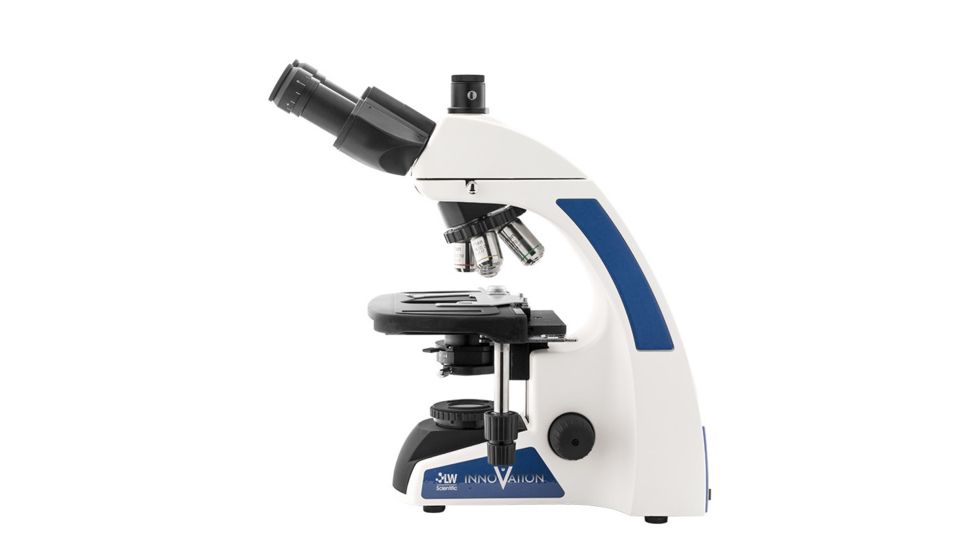

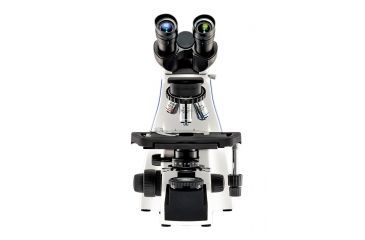

LW Scientific Innovation Biological Microscope w/ LED Illumination w/ Free Shipping and Handling — 4 models

The Innovation microscope is equipped to ease the burden on the busiest and most discriminating lab technicians and specialists. Powerful performance, crisp clarity, and rugged construction, backed by a lifetime warranty on optical and mechanical components, make the Innovation a valued addition to any laboratory.

Specifications for LW Scientific Innovation Biological Microscope w/ LED Illumination:

Features of LW Scientific Innovation Biological Infinity Microscope LED:

• HEAD

• Binocular or Trinocular (Seidentopf)
• Digital cameras available
• Diopter adjustment +/-5 (built into each eyepieces)
• Inclined 30°, rotates 360°
• 10X/22 Super Widefield High Eyepoint eyepieces
• (15X/16 eyepieces available)
• 30mm eyetube
• Interpupillary distance range 48-75mm

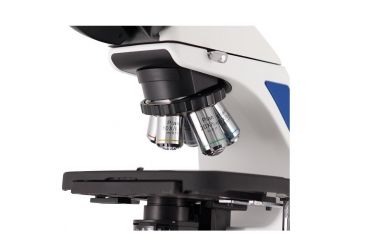

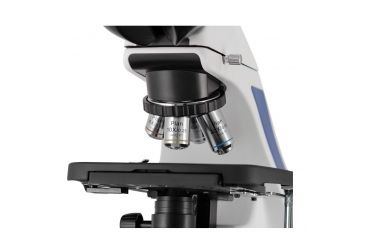

• NOSE PIECE

• Reverse quadruple or quintuple nosepiece
• Multiple ball bearing mounted

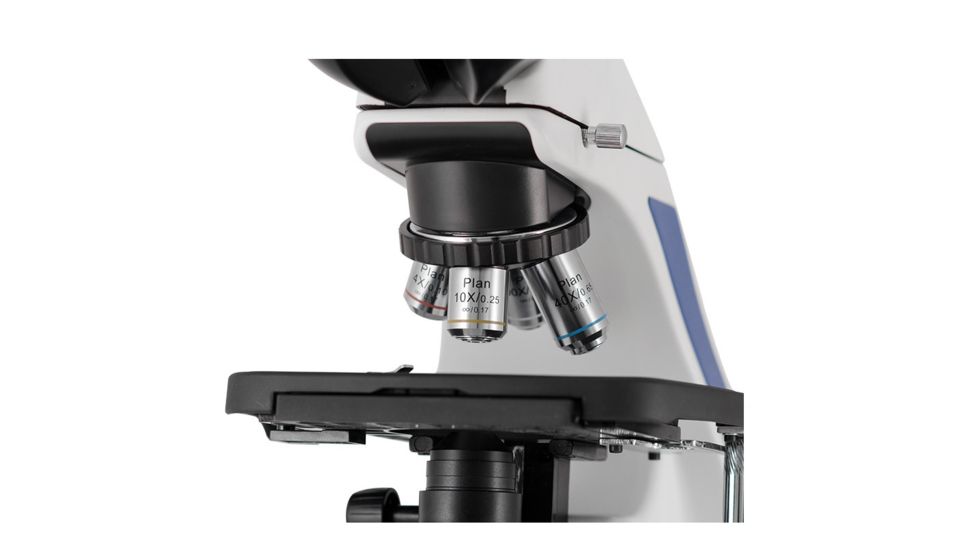

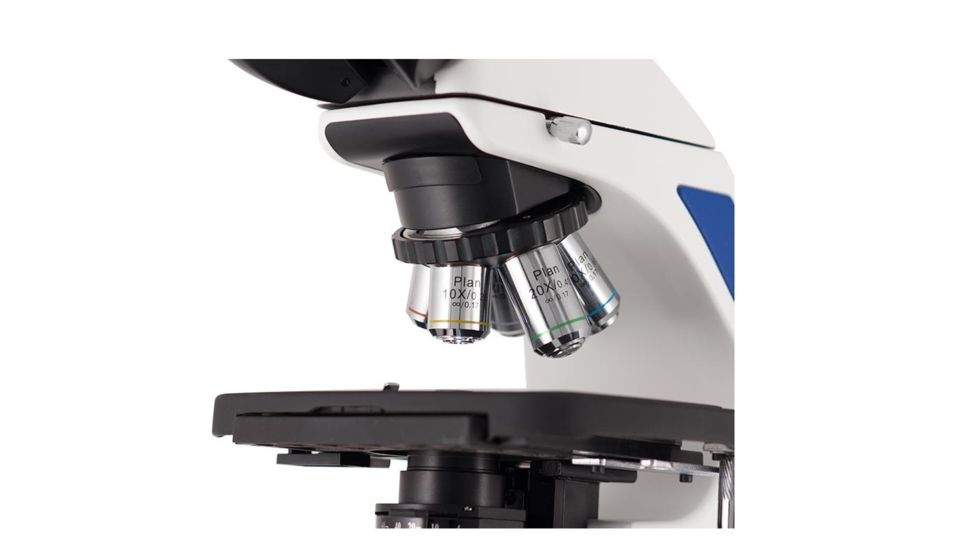

• OBJECTIVES

• Infinity High Contrast Plan objectives
• 4X, 10X, 40XR, 100XR (oil) with the quadruple nosepiece
• 4X, 10X, 20X, 40XR, 100XR (oil) with the quintuple nosepiece
• Anti-fungal, parfocal, parcentric, color-coded

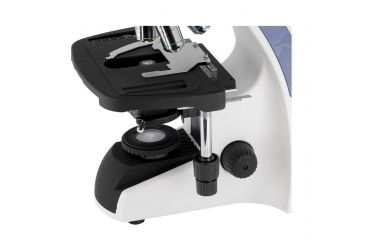

• STAGE

• Double Layer Mechanical Stage (216mm X 150mm)
• Graphite-Coated Surface
• Coaxial drive controls, rackless
• Range of traverse: 75mm x 55mm
• Slow-close hydraulic slide finger

• FOCUS

• Coarse adjustment: range of 18mm
• Fine adjustment: graduation of 0.001mm
• Tension control knob

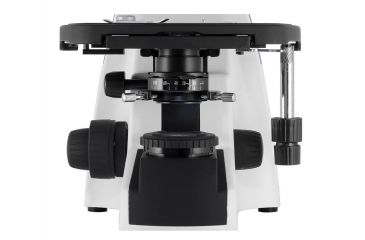

• ILLUMINATION

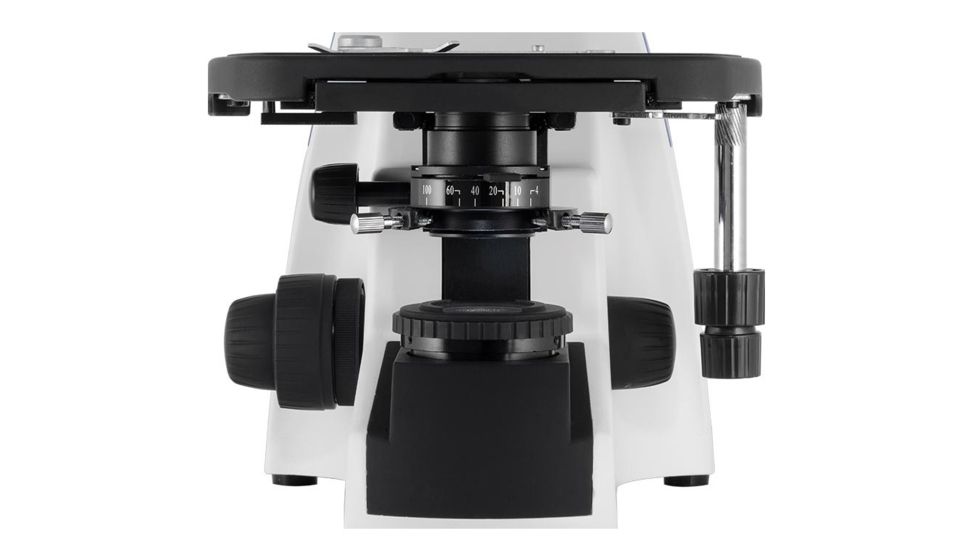

• Movable Abbe condenser, NA 1.25
• Iris Diaphragm
• LED provides 50,000 hours of light and consistent even brightness
• Variable light adjustment
• Simple Kohler illumination
• 90-240V / 50-60Hz automatic-switching power input

• OPTIONS

• 50x oil objective
• 60x dry objective
• Phase contrast
• Darkfield condenser (dry)
• Simple polarizer,
• WF 16X/15mm eyepieces

• WEIGHT AND DIMENSIONS

• Height: 16 in (406 mm)
• Length: 15 in (381 mm)
• Width: 8.5 in (216 mm)
• Weight: 14.2 lbs (6.4 kg)

• PACKAGE DIMENSIONS

• 21 lbs (9.5 kg)
• 21 in x 16 in 13 in (533 mm x 406 mm x 330mm)

• OPTIONAL HARD CARRY CASE

• 15 lbs (6.8 kg)
• 22 in x 18 in 12 in (559 mm x 457 mm x 305mm)

Package Contents:

• LW Scientific Innovation Biological Microscope With LED Illumination
• Pair of Low Profile Eyeguard
• Pair of High Profile Eyeguards
• Dust Cover
• Manual
