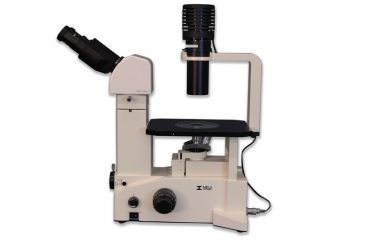

Meiji Techno Inverted Brightfield Biological Microscope w/ Free Shipping and Handling — 3 models

Meiji Techno's latest inverted microscope line is the cost-effective TC-5000 Series Inverted Biological Microscopes. The TC-5100 & TC-5200 Series brightfield microscopes have been designed to be a versatile, modular, ergonomic, system ideal for use in research, educational and clinic applications. The TC-5100 & TC-5200 Series are well suited for wide variety of routine examination of tissue culture, precipitates and high resolution video microscopy. The TC-5100 & TC-5200 Series microscopes deliver crisp, distortion-free, high resolution images in multiple modes of operation. A wide range of components, objectives and contrasting methods are available to suit your specific application.

Specifications for Meiji Techno Inverted Brightfield Biological Microscope:

Features of Meiji Techno Inverted Brightfield Biological Microscope:

• Seidentopf type binocular head inclined at 30° or trinocular at 45°
• Equipped with 6V, 30W Halogen lamp illuminator
• N.A. 0.30 condenser
• 180mm(X) X 245mm(Y) stage with replaceable glass insert with 45mm opening
• Exchangeable observation tubes
• Integrated Automatic Voltage Sensing Power Supply with localized power cord
• Compact wedge shaped cast aluminum alloy frame for exceptional stability and a small footprint
• Chemical resistant baked enamel finish
• Flexible and modular design for system expansion
• Transparent stage plate for easy objective identification
• Low profile coaxial and fine focus controls with tension adjustment
• Precentered 30W Halogen bulb
• Integrated Automatic Voltage Sensing Power Supply with localized power cord
• Optional mechanical stage with specimen holders

Package Contents:

• Inverted Biological Brightfield Compound microscope:
• Infinity Corrected Optical System: F-200MM with 6V 30W Halogen Koehler illumination with quintuple nosepiece and auto voltage sensing power supply.
• Head: Inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes).
• MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm.
• MA821: TC Long Working Distance Objective WD 17.3mm, NA 0.25, Planachromat 10X, Infinity F=200mm ∞/1.0.
• MA822: TC Long Working Distance Objective WD 7.0mm, NA 0.40, Planachromat 20X, Infinity F=200mm, ∞/1.0,
• MA853: TC Condenser, N.A. 0.30, W.D. 73.mm.
• STAGE: Plain stage with 180mm(X) x 245mm(Y) plain stage with replaceable glass insert with 45mm opening.
• MA878: Glass Stage plate insert for plain stage (Round-109mm diameter, 1.5mm thick with 44.3mm central opening).
• MA863: Cobalt clear filter in mount in 51mm mount.
• MA809/10: Removable AC Electric cord with plug for 115V models.
• MA326: Bulb 6V 30W Halogen (Factory Installed).
• MA327: Fuse 3 Amp (Factory Installed).
• Manual: TC-5000 Meiji Techno Instruction Manual.
• Warranty: Limited Lifetime Warranty Card.
