Meiji Techno Stereo Microscope Fixed 1X Objective
Tap Tap to Zoom
Product Discontinued by Manufacturer
Meiji Techno Stereo Microscope Fixed 1X Objective has been discontinued by Meiji Techno and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Microscopes yourself to try and find the perfect replacement for you!
Product Info for Meiji Techno Stereo Microscope Fixed 1X Objective

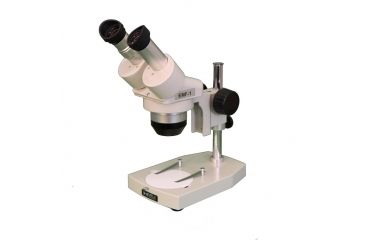

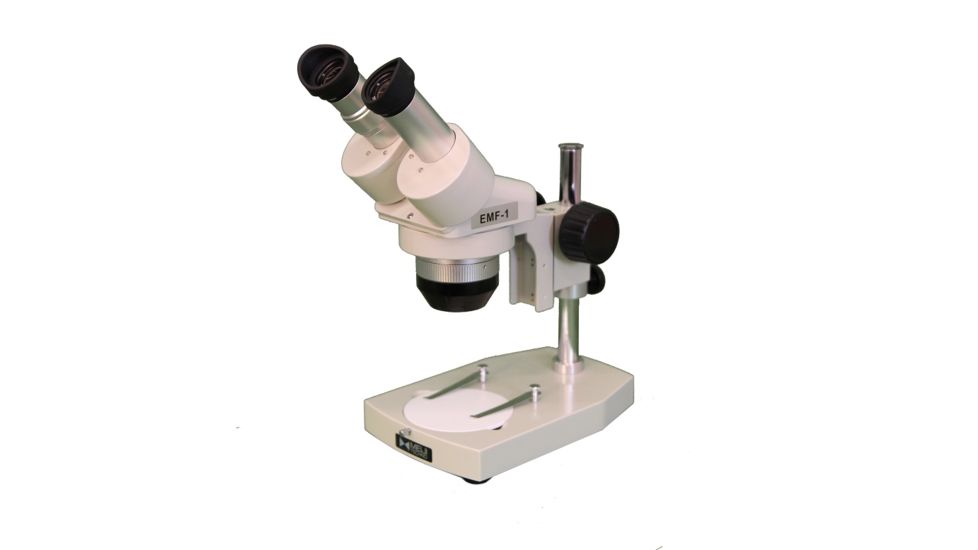

The Meiji Techno EMF-1 Stereo Microscope is a fixed body 10x stereo microscope. Greenough optics offer clear crisp images all thoughout the field of view. The single magnification is perfect for dissection, sorting field samples, watch making and repair, manufacturing inspection, and numerous other applications where clear distinctive images are a must. Basic components for this configuration include the P stand - the basic pole stand with the Meiji Techno F focusing holder. The MA502 eyepieces included in the basic combination are 10x, F.N. 23, Eye Relief 16.0, F.L. 25.0. This combination boasts a 108mm working distance.
If you require a lighted stand, a larger base with an articulated arm, or if you wish to change magnification with other power eyepieces please click on the green Customize button above for many stand, eyepiece, and lighting options
Specifications for Meiji Techno Stereo Microscope Fixed 1X Objective:
| Body: | Binocular, Rotatable 360°, Cast Aluminum Alloy Construction |
| Magnification: | 10x (10x eyepieces) |
| Objective Lens: | Brass Construction |
| Paired Objectives: | 1x |
| Field of View: | 23mm |
| Working distance: | 108mm |
| Eyetube Inclination: | 45° |
| Eyepieces: | 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional) |
| Interpupillary Distance: | 54mm - 75mm |
| Dioptric Adjustment: | Left Eyetube |
| Extended Mag Range: | 5x - 30x (with optional eyepieces) |
| Mounting: | Fits 84.5mm Diameter Focus Holders |
| Manufacturer: | MADE IN JAPAN |
| Warranty: | LIMITED LIFETIME WARRANTY |
Package Contents:
- EMF-1 Sereo Microscope Head
- P Pole Stand with F focusing Holder and Reversible Black/White Stage Plate
- 2 MA502 Super Widefield Eyepieces 10x F.N. 23.0 with 25mm Reticle Mount
- Meiji Techno Dust Cover (MA703)
- Rubber Eyeguards/Eyeshields (Paired) (MA600)
- EMT, EMF, EMX Meiji Techno Instruction Manual
- Limited Lifetime Warranty Card
