Tap Tap to Zoom
Code: NL-90D-P82
MPN: P82

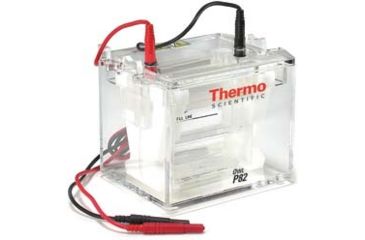

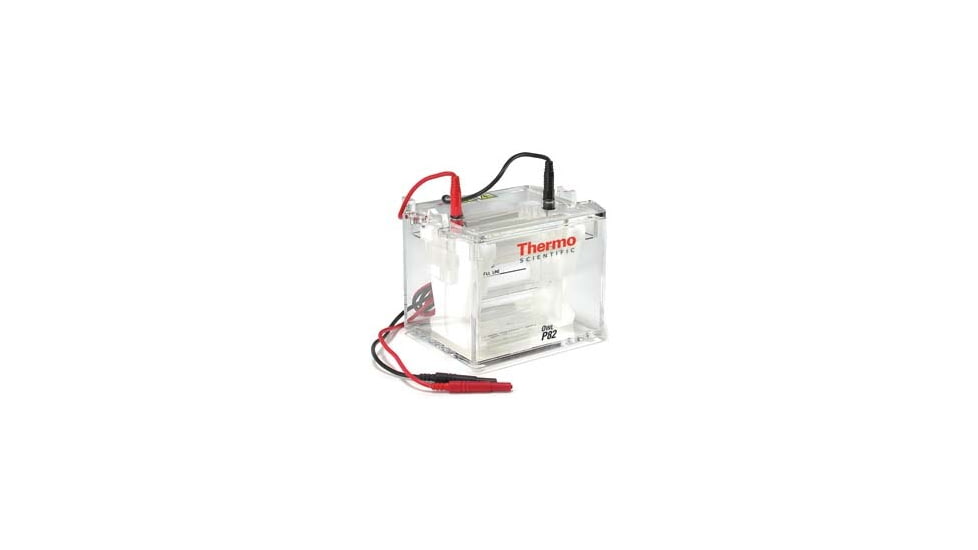

Nalge Nunc Vertical Electrophoresis Systm P82 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Nalge Nunc Vertical Electrophoresis Systm P82 / 27373-566 is part of a wide selection of Nalge Nunc Electrophoresis system power supplies. Combining excellent quality with an affordable price, the Nalge Nunc Vertical Electrophoresis Systm P82 / 27373-566 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Electrophoresis system power supplies please do not hesitate to contact our customer service for further guidance.![]()
For flat, even banding and crisp resolution. The system can run two 10Wx10Lcm gels, or a single gel using the blocking plate. The system can accommodate 10Wx8Lcm (4x31/8") gels utilizing the provided adapter. Gels can be poured or precast. The system is designed to allow gels to be easily placed into the chamber. A wedge is placed in front of the cassette to provide even pressure against the leakproof gasket and ensure that the cassette is held in the proper running position. A molded gasket provides a leak-resistant seal. The lid closes in one orientation only, ensuring that the positive and negative electrodes are not reversed. No cooling is required.
System includes an upper buffer chamber, lower buffer chamber, SuperSafe* lid with attached power supply leads, two 1.3cm (1/2") thick wedges, and two 1.6cm (5/8") thick wedges. The two sizes of wedges are provided to accommodate varying thickness of precast gels.
The Joey* gel casting system encases the gel sandwich and acrylamide in a research-quality plastic pouch to eliminate the need for bottom spacers, tape, grease, or agarose seals. For 10Wx10Lcm (4x4") or 10Wx8Lcm (4x31/8") gels. Built-in, three-point bubble leveling system ensures uniform gel fronts. The optional Rabbit* gradient caster is used for casting gradient or single percentage gels. For 10Wx10Lcm (4x4") or 10Wx8Lcm (4x31/8") gels. Units allow the pumping of acrylamide through a port on the base of the caster. The port can be closed to pour gels from the top.
Ordering Information: The Joey caster and Rabbit caster can accommodate 10Wx8Lcm (4x31/8") gels through the use of an adapter, which can be provided at no cost. Contact your VWR representative when ordering for more information.
| Â Description: | Wolverine System |
| Thermo Scientific No.Cat. No.: | P82 |
| Unit: | Each |
| Properties: | |
| Maximum Chamber Capacity | |
| Upper Buffer: | 140 mL |
| Lower Buffer: | 850 mL |
| Minimum Lower Buffer Chamber Capacity | |
| 8L cm Gel: | 300 mL |
| 10L cm Gel: | 100 mL |
| Dimensions | |
| Wolverine System: | 17.5W x 12.5D x 18H cm |
| Joey Caster: | 13W x 13D x 11H cm |
| Rabbit Caster: | 15W x 13D x 13H cm |
