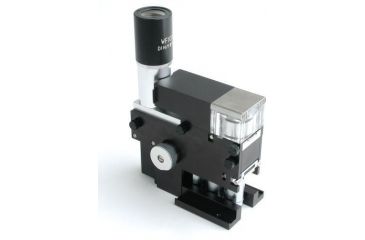

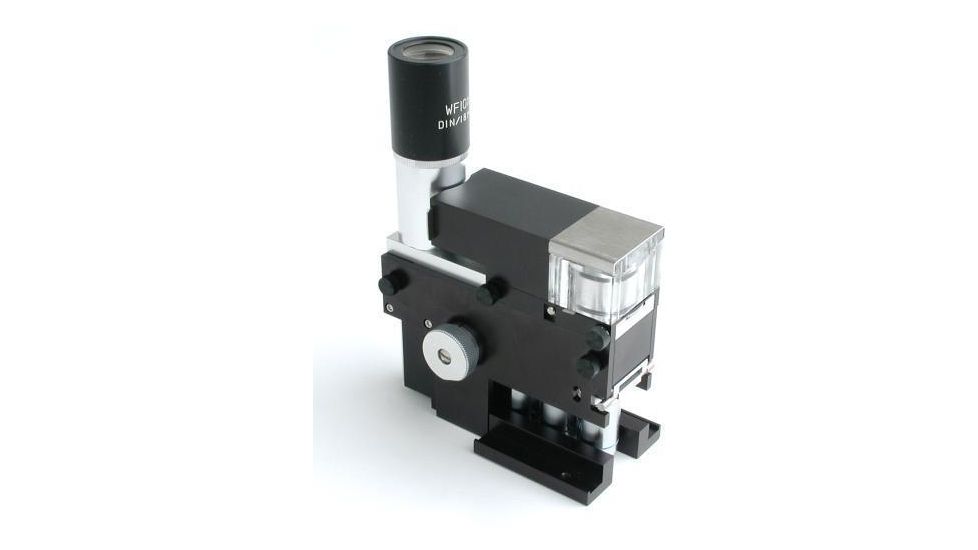

Omex MicroMet Microscope 216A5000

Omex Technologies offers all the features of a full-size laboratory microscope in a compact and light weight package. Omex Micro Met Microscopes are ideal for various testing, inspection and studying activities within the factory, laboratory, school and in the field. The MicroMet Microscope by Omex Technologies is truly portable, it incorporates a self-contained bright field illuminator powered by the battery.

A unique feature which sets MICRO Met apart from the other similar microscopes in the field is that it can be easily set up in any position on a cylinder using its magnetic stand. The stand has an ON-OFF switch that assures a secure positioning on the roll. The MicroMet by Omex Technologies features a 160 mm tube length and brightfield long working distance objectives assure high image quality.

All Omex Micro-Met Microscopes can be easily set up as an upright or inverted for utmost comfort. This Microscope by Omex Technologies features 160 mm tube length and brightfield long working distance objectives assure high image quality in either configuration. Designed to withstand the rigors of any environment, each Omex Micro-Met Microscope incorporates the in-line objective dovetail slide for change of magnification. The wide field eyepiece has a mounting provision for a measuring scale. The illuminator is powered by two ?AA? size batteries, has the sliding ground glass, on-off switch.

Please click here to see an online version of MicroMet Portable Microscopemanual.

Specifications for Omex Technologies MicroMet Portable Microscope:

Magnification:		100x, 200x, 400x
Eyepiece:		10x Wide Field
Objectives:		10x, 20x, 40x ACHROMATS
Working Distance (mm):		8.2, 3.0, 2.0
Numerical Aperture:		0.25, 0.40, 0.65
F.O.V. (mm):		1.80, 0.90, 0.45
Illumination:		High Intensity, Iris DIAPH 0.65 NA, Blue Filter
Focusing:		Helical, Fine Focus
Dimensions (mm):		100 (L) x 100 (H) x 31 (W)
Weight (lb):		2
Warranty:		3 years by Omex Technologies, Inc

Features of Omex MicroMet Microscope :

• Can be easily set up in any position on a cylinder using its magnetic stand
• Compact and lightweight scope
• Self-Contained Battery Operated Illuminator
• Can be set by operator as Upright or Inverted
• 10x and 20x Magnification Objectives
• Helical Focusing
• 10x Wide Field Eyepiece

Package Contents:

• Omex Technologies MicroMet Portable Microscope
