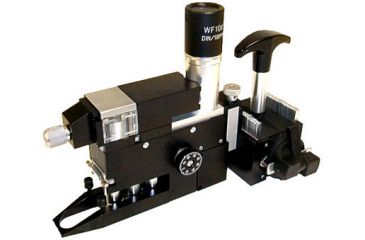

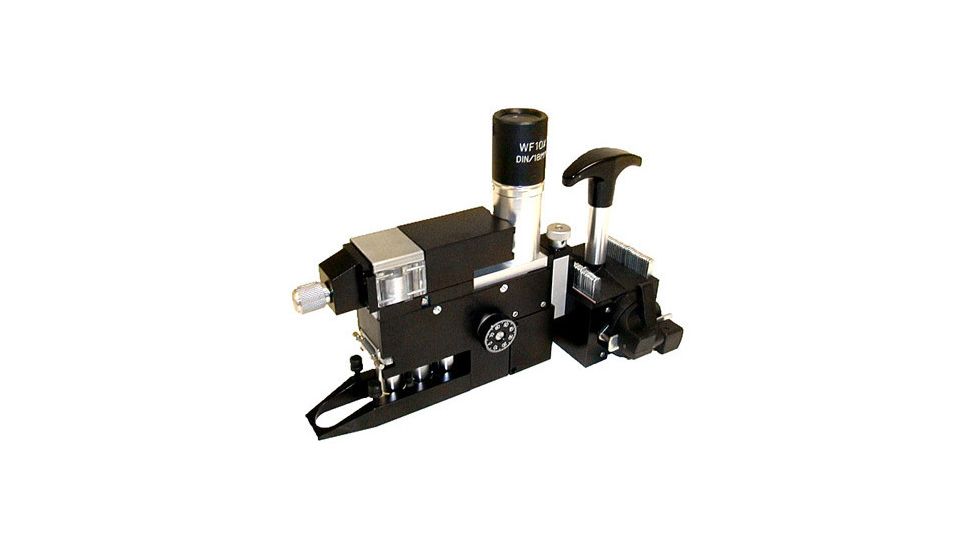

Omex ROLLScope Microscope
Tap Tap to Zoom
Product Discontinued by Manufacturer
Omex ROLLScope Microscope has been discontinued by Omex Technologies and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Microscopes yourself to try and find the perfect replacement for you!
Product Info for Omex ROLLScope Microscope
Omex Technologies offers all the features of a full-size laboratory microscope in a compact and light weight package in the ROLLScope Portable Microscope 216A5200. Omex Micro Met Microscopes are for measurement of industrials rolls in paper mills, anilox and gravure print rollers, or large objects of irregular shape.. The ROLLScope Microscope by Omex Technologies is truly portable, it incorporates a self-contained bright field illuminator powered by the battery.
A unique feature which sets MICRO ROLLScope apart from the other similar microscopes in the field is magnetic stand. It adapts to a wide range of roll diameters and can be easily set up in any position on a cylinder surface. The stand has an ON-OFF switch that assures a secure positioning on the roll. The miniture verticle translation stage provides the microscope coarse focusing. The Roll Scope by Omex Technologies features a fine focus mechanism with graduated handling allowing depth measurement.
This Microscope by Omex Technologies features 160 mm tube length and brightfield long working distance objectives assure high image quality. Designed to withstand the rigors of any environment, each Omex ROLLScope Microscope incorporates the in-line objective dovetail slide for change of magnification. The wide field eyepiece has a mounting provision for a measuring scale. The illuminator is powered by two ?AA? size batteries, has the sliding ground glass, on-off switch.
Specifications for Omex Technologies ROLLScope Portable Microscope 216A5200:
| Magnification:Â | Â 100x, 200x, 400x | |
| Eyepiece:Â | Â 10x Wide Field | |
| Objectives:Â | Â 10x, 20x, 40x ACHROMATS | |
| Working Distance (mm):Â | Â 8.2, 3.0, 2.0 | |
| Numerical Aperture:Â | Â 0.25, 0.40, 0.65 | |
| F.O.V. (mm):Â | Â 1.80, 0.90, 0.45 | |
| Illumination:Â | Â High Intensity, Iris DIAPH 0.65 NA, Blue Filter | |
| Focusing:Â | Â Helical, Fine Focus | |
| Dimensions (mm):Â | Â 100 (L) x 100 (H) x 31 (W) | |
| Weight (lb):Â | Â 2 | |
| Warranty:Â | Â 3 years by Omex Technologies | |
Features of Omex ROLLScope Microscope 216A5200:
- Can be easily set up in any position on a cylinder using its magnetic stand
- Compact and lightweight scope
- Self-Contained Battery Operated Illuminator
- 10x and 20x Magnification Objectives
- Helical focusing with depth measurement graduation
- 10x Wide Field Eyepiece
- Anyshape Magnetic Stand with ON-OFF switch
Package Contents:
- Omex ROLLScope Microscope 216A5200
Package Contents:
- Omex Technologies ROLLScope Portable Microscope 216A5200
