Mitutoyo America Idc Indicator .0005 In/0.01mm 504-543-402B w/ Free S&H
1 of 1 images

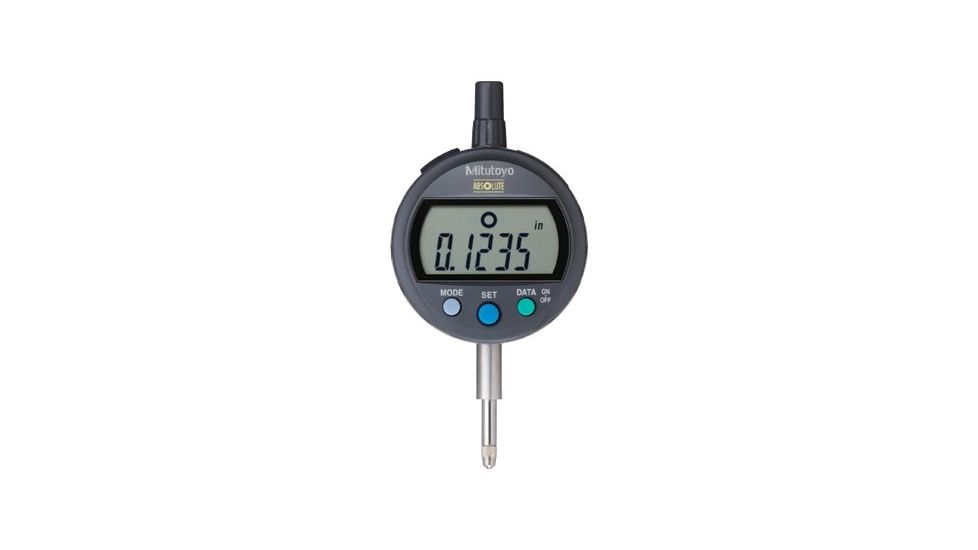

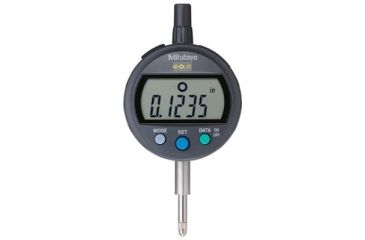

Mitutoyo America Idc Indicator .0005 In/0.01mm 504-543-402B, Unit EA
Tap Tap to Zoom
Code: HG6-9RB-504-543-402B-EA
MPN: 504-543-402B
List:$639.99Save 13%
$559.99
Product Info for Mitutoyo America Idc Indicator .0005 In/0.01mm 504-543-402B
Specifications for Mitutoyo America Idc Indicator .0005 In/0.01mm 504-543-402B:
| Catalog number: | Â 300082-214 |
| Type: | Â |
| Accuracy: | Â 0.00012 in; 0.0008 in |
| Description: | Â 300082-216; 300082-214 |
| Display Type: | Â Digital LCD, SPC Output |
| Measuring System: | Â Inch/Metric |
| Resolution (Length): | Â 0.000050 in, 0.000100 in, 0.000500 in, 0.001000 mm, 0.010000 mm; 0.000500 in, 0.010000 mm |
| Thread Point @ TPI or Pitch: | Â 0.112 in #4 @ 48.000 UNF |
| Tip Material: | Â Stainless Steel |
| Stem Diameter: | Â 3/8 in |
| Range: | Â 0 in Min, 0 mm Min, 1/2 in Max, 12.700 mm Max |
| Weight: | Â 0.60 lb |
| Mounting: | Â Stem |
| Battery Life: | Â Average 5,000 Hours |
| Display Diameter: | Â 60.5 mm |
| Measuring Force: | Â 0.900 N Max |
| Supplier No.: | Â 504-543-402B |
Package Contents:
- Mitutoyo America Idc Indicator .0005 In/0.01mm 504-543-402B / 300082-214
