Code: PI-90G-12070
MPN: 12070

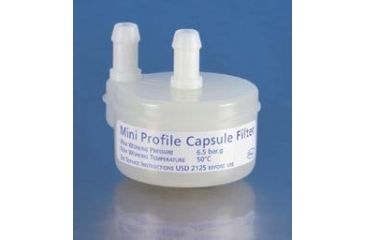

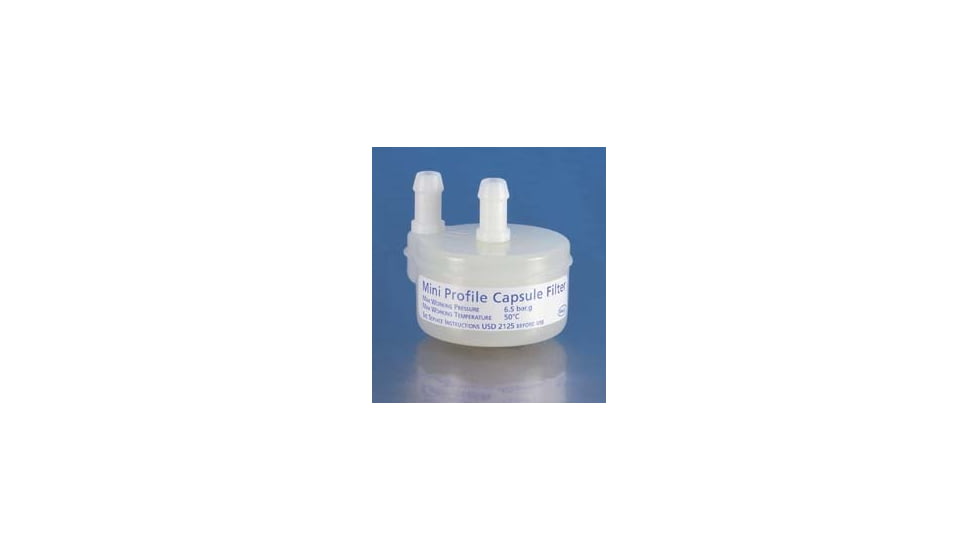

Pall Capsule Filter Pp 1.5UM PK3 12070 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Pall Capsule Filter Pp 1.5UM PK3 12070 / 28146-160 is part of a wide selection of Pall Laboratory filtration hardware or accessories. Combining excellent quality with an affordable price, the Pall Capsule Filter Pp 1.5UM PK3 12070 / 28146-160 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Laboratory filtration hardware or accessories please do not hesitate to contact our customer service for further guidance.
Designed for small volume production, scale-up evaluation, clarification of biological products, and gel removal. Capsules are optimized for viscous fluids. They feature a self-venting format, low hold-up volumes, low extractables, low protein binding, high flow rates and throughputs, and broad chemical compatibility. Housing and core/end caps are polypropylene with 13mm (1/2"), acetal hose barb inlet/outlet connection.
Capsules are available with two polypropylene depth media types. Profile Star filters feature high area star-shaped polypropylene pleat construction. Profile II filters are polypropylene depth filter elements with tapered pores that narrow to an inner (downstream) absolute rated section. These filters provide high capacity for larger solids and gels as well as for fine particles.
Pore Size, µm: | 1.5 |
Pall No.: | 12070 |
Unit: | Pack of 3 |
Properties: | |
Effective Filtration Area | |
Profile Star: | 5.0 bar (75 psi) |
Profile II: | 3.4-4.1 bar (50-60 psi) |
Maximum Operating Temperature | |
Maximum Operating Pressure | |
Dimensions | |
Housing Length: | 7.7 cm (31/32") |
Housing Diameter: | 8.5 cm (311/32") |
