Code: PI-9MK-OA030C12
MPN: OA030C12

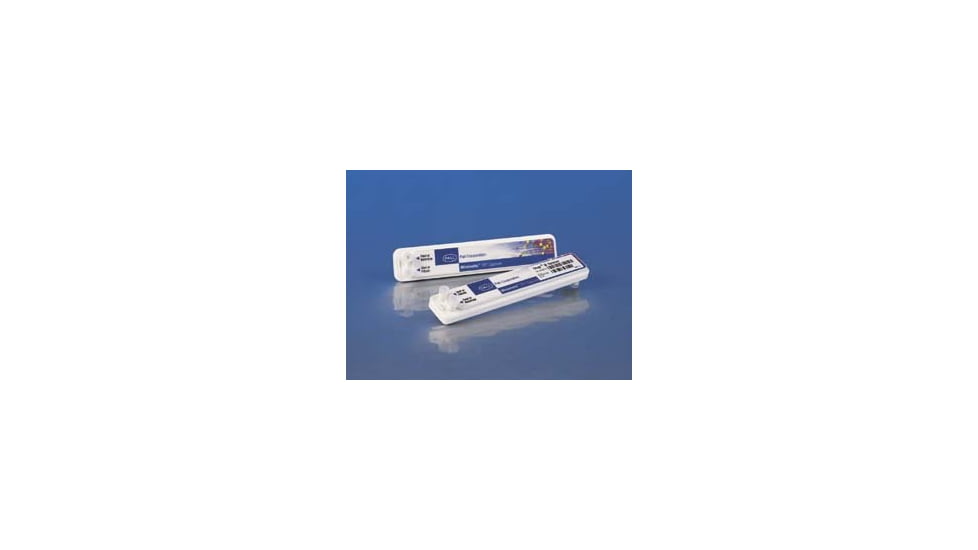

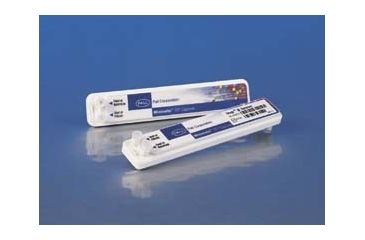

Pall Capsule Minimate Tff 30K PK1 OA030C12 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Pall Capsule Minimate Tff 30K PK1 OA030C12 / 29301-910 is part of a wide selection of Pall Slow continuous ultrafiltration SCUF units or related products. Combining excellent quality with an affordable price, the Pall Capsule Minimate Tff 30K PK1 OA030C12 / 29301-910 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Slow continuous ultrafiltration SCUF units or related products please do not hesitate to contact our customer service for further guidance.
These disposable tangential flow filtration devices accelerate and simplify scale-up bioprocessing applications. Versatile, self-contained capsules include all fittings and tubing to simplify installation into filtration setups and will work with any laboratory pump. The optimized flow path design of the capsules coupled with low protein binding Omega* (modified polyethersulfone) ultrafiltration membrane minimize non-specific binding. Capsules allow concentration and desalting processes to be performed on the same system with minimal user intervention. Several Minimate TFF capsules may be connected in parallel for increased membrane area.
Capsules feature glass-reinforced polypropylene housing, polypropylene screens, housing sealing with fittings, polyethylene membrane plate/filtrate channels, and an internal gasket made of ethylene propylene elastomer. Each capsule is 100% integrity-tested during manufacture to ensure reliable performance.
The Minimate TFF system, designed to work with the Minimate TFF capsule, is ideal for a variety of tangential flow filtration applications in biotechnology, molecular biology, protein chemistry, microbiology, and immunology. This ready-to-use system can concentrate and desalt proteins, peptides or nucleic acid sample volumes of up to 1L or more and efficiently concentrate samples to as little as 5mL. System also features gentle and efficient processing, easy cleaning and maintenance, compact design, and high concentration factors.
MWCO: | 30K |
Pall No.: | OA030C12 |
Unit: | Pack |
Properties: | |
Effective Filtration Area: | 50 cm2 |
Recommended Crossflow: | 30 to 80 mL/min. |
Operating Temperature Range: | 5 to 50°C (41 to 122°F) |
Maximum Operating Pressure: | 4 bar (60 psi) |
Dimensions: | 20L x 3.8W x 1.8H cm |
