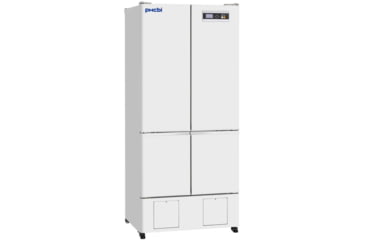

PHCbi MPR Series Pharmceutical Refrigeator/Freezer w/ Solid Doors

The PHCbi brand Pharmaceutical Refrigerator with Freezer offers a complete storage solution in one cabinet. This multipurpose cabinet is designed for safe, reliable storage of vaccines and biological materials. Refrigerated and frozen products can be maintained within a single footprint Optimum temperature uniformity under full load conditions Independent refrigeration systems The microprocessor controller and softkey interface are door mounted at eye level Adjustable audible and visual alarms Slim Profile Cabinet Design Data transfer is through a USB port Hydrocarbon refrigerants help achieve facility sustainability objectives by minimizing any environmental impact without compromising cooling performance, ambient tolerance and recovery speeds following door openings. The refrigerator includes three adjustable, tempered glass shelves. The solid shelf construction eliminates tipping of bottles and vials. A rear wall LED light is included for product viewing. Both models include manual defrost for the freezer compartment. The refrigerator compartment includes an automatic defrost, which activates electronically when needed. The refrigerator evaporator operates above freezing at all times. This prevents vaccines and lab supplies from freezing.

• External Dimensions (W x D x H): 800 x 640 x 1810 mm
• Internal Dimensions (W x D x H): 720 x 516 x 913 mm (Ref) / 680 x 470 x 415 mm (Frz)
• Volume: 326 / 136 litres (Ref / Frz)
• Net Weight: 129 kg
• Temperature Setting Range: +2 to +14 C (Ref) / -20 to -30 C (Frz)
• Temperature Control Range: +2 to +14 C (Ref) / -20 to -30 C (Frz)
• Controller: Microprocessor
• Display: White graphic OLED
• Temperature Sensor: Thermistor
• Cooling Method: Fan forced air circulation (Refrigerator) / Direct cooling (Freezer)
• Defrost Method: Cyclical defrost (Refrigerator) / Manual (Freezer)
• Refrigerant: HC refrigerant (Refrigerator / Freezer)
• Insulation Material: PUF
• Exterior Material: Painted steel
• Interior Material: ABS resin (Refrigerator) / Painted steel (Freezer)
• Outer Doors: 4, glass window (2)
• Outer Door Lock: Y (Refrigerator / Freezer)
• Shelves: Tempered glass (3) / Coated steel wires (2) (Refrigerator / Freezer)
• Drawers:
• Max. Load - Per Shelf/Drawer: 25 kg (Refrigerator) /15 kg (Freezer)
• Max. Load - Total:
• Access Port: 2 (1 for Refrigerator, 1 for Freezer)
• Access Port Position: Back
• Access Port Diameter: 30 mm
• Casters: 4
• Interior Light: LED
• Power Failure: R (Remote alarm comes with optional power failure alarm MPR-48B2-PW)
• High Temperature: V-B-M-R (V= Visual Alarm, B = Buzzer Alarm, R = Remote Alarm, M = Message)
• Low Temperature: V-B-M-R
• Door Open: V-B-M
• Power Supply: Local
• Noise Level: 41 dB A

Package Contents:

• PHCbi MPR Series Pharmaceutical Refrigerator/Freezer w/ Solid Doors
