Code: F6-9SF-014620136
MPN: 14620136
Retsch Grind Jars Comfort AGTE125ML 014620136 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Retsch Grind Jars Comfort AGTE125ML 014620136 / 16003-592 is part of a wide selection of Retsch Laboratory crushers or pulverizers. Combining excellent quality with an affordable price, the Retsch Grind Jars Comfort AGTE125ML 014620136 / 16003-592 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Laboratory crushers or pulverizers please do not hesitate to contact our customer service for further guidance.

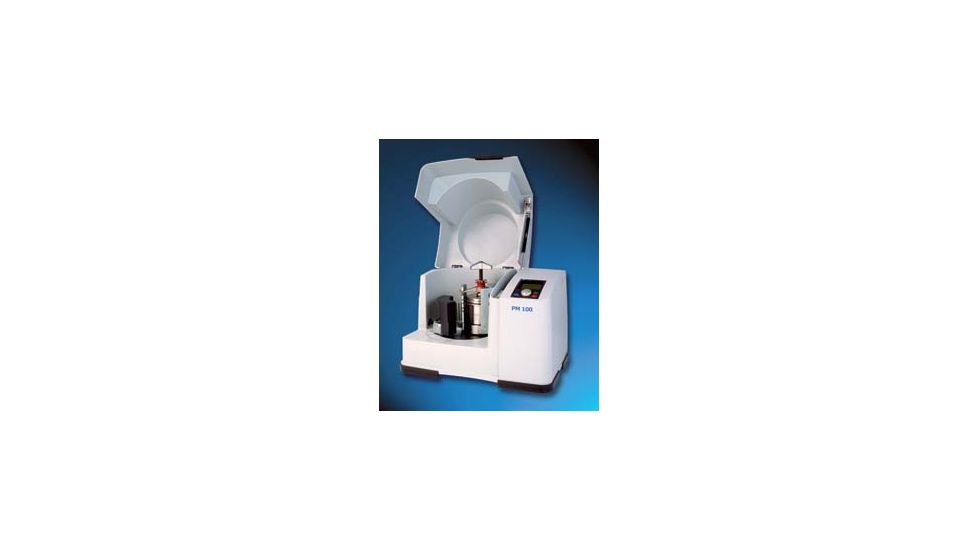

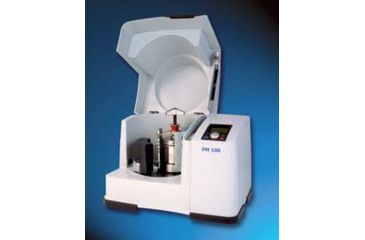

These ball mills pulverize and mix soft, medium-hard, and extremely hard as well as brittle and fibrous materials. Both wet and dry grinding is possible. Mills are ideal for size reduction, mixing, homogenizing, colloidal milling, and mechanical alloying. The PM 100 is a single-station unit suitable for jars from 50 to 500mL. The PM 200 is a dual-station unit suitable for jars from 50 to 125mL.
Mills produce extremely high centrifugal forces with very high pulverization energies, which results in short grinding times. The powerful and maintenance-free mill drive guarantees a constant controlled speed even during continuous operation in long-term trials at maximum loads. The graphics display allows 10 combinations of speed, grinding time, and interval settings to be stored for continually repeated grinding processes. Mills feature safety plastic housing with automatic cover closure and forced ventilation of chamber for applications requiring solvents.
The “comfort” grinding jars feature safe, nonslip seating with built-in anti-rotation device and conical base centering; an O-ring for gasproof and dustproof seal; gripping flanges on beaker and lid; an identification tag with serial number, material, and volume; and a labeling field for sample identification.
PM 100 | PM 200 | |
Feed Size: | <10 mm | <4 mm |
Grind Size*: | <1 µm | <1 µm |
Colloidal Grind Size*: | <0.1 µm | <0.1 µm |
Set Speed Ratio: | 1 : -2 | 1 : -2 |
Maximum Volume, | ||
Sample and Balls: | 1 x 300 mL | 2 x 80 mL |
With Stacked Grinding Jars: | 2 x 30 mL | - |
Sound Emission Level: | Up to 85 dB (A) | Up to 80 dB (A) |
Dimensions: | 63W x 46.8D x 41.5H cm | 63W x 46.8D x 41.5H cm |
(2413/16 x 187/16 x 165/16") | (2413/16 x 187/16 x 165/16") | |
Weight: | 80 kg (176 lbs.) | 72 kg (159 lbs.) |
*Depending on sample. |
Description: | Agate, 125 mL |
Retsch No.: | 014620136 |
Unit: | Each (125 ML) |
