Code: IS1-9SI-013605MD
MPN: 013605MD
Thermo Orion Probe Orion 4-CELL Conductivi 013605MD is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Thermo Orion Probe Orion 4-CELL Conductivi 013605MD / 14004-274 is part of a wide selection of Thermo Orion pH electrodes. Combining excellent quality with an affordable price, the Thermo Orion Probe Orion 4-CELL Conductivi 013605MD / 14004-274 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our pH electrodes please do not hesitate to contact our customer service for further guidance.

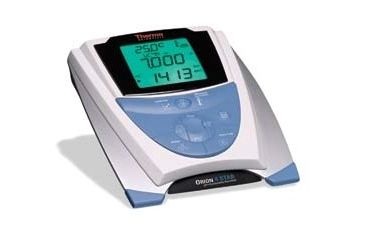

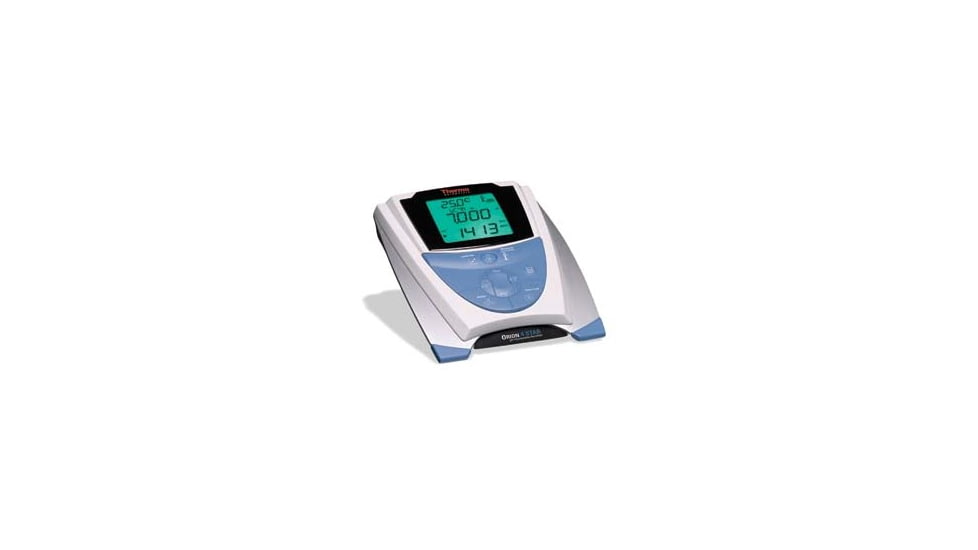

These dual channel meters are ideally suited for soil testing and water/wastewater analysis in regulated environments. Optional 1- to 5-point calibration for pH and conductivity ensures accuracy even at extremes of concentration. Meters also display conductivity, resistivity, salinity, TDS, and temperature and accept both four-electrode and two-electrode cells. Icon prompts, a simple set-up menu with easy, three-button function, and SMART STABILITY* and SMART AVERAGING* functions simplify the measurement process for non-technical users. Up to 10 setup parameters and calibrations may be stored and password-protected individually, enabling multiple users to share one unit. Additional methods, as well as software updates, may be downloaded via the Web. These rugged meters also meet all U.S. Pharmacopeia (USP) requirements when used with the Star Navigator 21* software.
Meters feature automatic or manual pH calibration; automatic buffer recognition of NIST, US, and DIN buffers; automatic or manual temperature compensation; calibration for temperature sensor, advanced self-tests on meter operation with self-diagnostics; optional GLP IQ/OQ documentation; and 750-point data logging. Data can be downloaded to printer or computer via the RS-232 connection. Data can include the average slope, slope of segment, and information on the last 10 calibrations.
Benchtop meters meet IP54 specifications for protection from water and feature BNC pH electrode connectors and mini-DIN locking conductivity probe connectors. Benchtop meters also feature the ability to operate an autosampler. The waterproof handheld meters meet IP67 specifications. Handheld meters also feature waterproof BNC pH electrode connectors, waterproof mini-DIN locking conductivity probe connectors, and an extended-life battery for up to 2000 hours of uninterrupted operation.
The optional Star Navigator 21 software ensures regulatory compliance and includes system validation, security and audit trails with time and date stamps, archiving, and record retention and recovery.
All meters are CE marked, CSA and TÜV certified, and UL listed.
Description: | ORION 4-Cell Conductivity Probe |
Thermo Scientific No.: | 013605MD |
Unit: | Each |
Properties: | |
pH Mode, | |
Range:: | -5 to 105°C (23 to 221°F) |
Resolution:: | 0.1 up to 99.9°C, 1.0 above 99.9°C |
Relative Accuracy:: | ±0.1°C |
mV Mode, | |
Temperature, | |
Conductivity Mode, | |
Conductivity Range*:: | 0 to 3000 µS |
Conductivity Resolution*:: | 1/0.1/0.01/0.001 |
Conductivity Accuracy:: | ±0.5% ±1 digit or 0.01 µS/cm, whichever is greater |
Resistivity Range:: | 0.0001 to 100 megohms |
Resistivity Resolution:: | Automatic |
ResistivityAccuracy:: | ±0.5% ±1 digit |
Salinity Range:: | 0.1 to 80.0 ppt NaCl |
Salinity Resolution:: | 0.01 |
Salinity Accuracy:: | ±0.1 ±1 digit |
TDS Range:: | 0 to 19999 |
TDS Resolution:: | 1 |
TDS Relative Accuracy:: | ±0.5 ±1 digit |
Reference Temperature:: | 5°, 10°, 15°, 20°, 25°C (Default) |
Cell Constant:: | 0.001 to 199.9 |
*Values are cell constant dependent. |
