Code: UV-9VG-95-0031-02
MPN: 95-0031-02

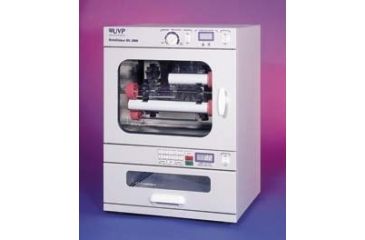

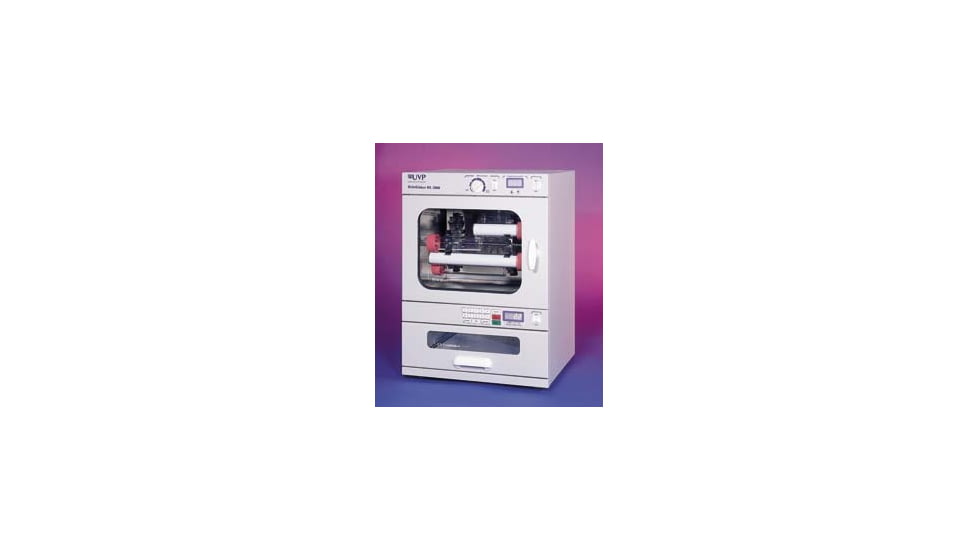

UVP HL-2000 Hybrilinker 230V 1EA 95-0031-02 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. UVP HL-2000 Hybrilinker 230V 1EA 95-0031-02 / 21475-496 is part of a wide selection of UVP Life science equipment. Combining excellent quality with an affordable price, the UVP HL-2000 Hybrilinker 230V 1EA 95-0031-02 / 21475-496 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Life science equipment please do not hesitate to contact our customer service for further guidance.
Self-contained unit provides the unique combination of a hybridization oven and a 254nm ultraviolet crosslinker. The hybridizing oven portion is ideal for Southern, Northern, and Western blots; in situ hybridization; and binding nucleic acids to nitrocellulose or nylon-reinforced transfer membranes or other media. The unit features precise microprocessor rotation speed and temperature control. An internal circulating fan maintains temperature uniformity, and a large LED display shows the current chamber temperature. Internal stainless steel construction enables the environment to be kept clean.
The oven accommodates multiple bottle sizes, arrangements, and offset positions to meet a variety of mixing requirements. The rotary wheel holds twenty 35x150mm bottles, ten 35x300mm bottles, or a combination of both sizes. To accommodate larger samples, an optional carousel kit allows up to four 70x300mm bottles to be saturated simultaneously. The bottles are borosilicate glass and come with a polypropylene cap with a PTFE seal. The rotary wheel can be removed and replaced with a rocker tray or rocker plate to create a rocking motion and to accomodate various types of flasks. The removable protective trays allow for easy cleanup of spilled media.
The ultraviolet crosslinker portion of the HybriLinker provides uniform shortwave (254nm) ultraviolet radiation exposure maintained by five 254nm UV tubes. UV output is measured by an internal sensor and is controlled by an on-board microprocessor. The crosslinker features an internal interlocking system for added safety. The hybridization oven and crosslinker components have separate power supplies and may operate independently.
ETL and ETL-C safety certified. The 230V model is CE certified.
Electrical: | 230V, 50Hz |
UVP No.: | 95-0031-02 |
Unit: | Each |
Properties: | |
Rotation Speed: | 10-15 rpm |
Temperature Range: | 10 to 99.9°C |
Dimensions | |
Exterior: | 38.1D x 61H x 44.5W cm (15 x 24 x 171/2") |
Oven Interior: | 27.3D x 27.3H x 35.6W cm |
Crosslinker Interior: | 27.3D x 15.9H x 32.4W cm |
Crosslinker Max. UV Setting: | 999,900 µJ/cm2 |
Net Weight: | 27.2 kg (60 lbs.) |
Electrical, Heating Element: | 1250W |
