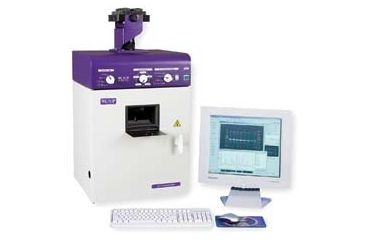

UVP Imaging Sys EC3 410, LM-26 97-0278-01

UVP Imaging Sys EC3 410, LM-26 97-0278-01 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. UVP Imaging Sys EC3 410, LM-26 97-0278-01 / 95037-732 is part of a wide selection of UVP Life science equipment. Combining excellent quality with an affordable price, the UVP Imaging Sys EC3 410, LM-26 97-0278-01 / 95037-732 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Life science equipment please do not hesitate to contact our customer service for further guidance.

The EC3 systems are designed for chemiluminscence, fluorescence, and colorimetric imaging. Systems can be used with fluorescent and colorimetric gels; colony plaques; microtiter plates; autoradiograph film; Northern, Southern, Western, and dot blots; 1D analysis; colony counting; densitometry; membrane arrays; and live plant studies.

Three types of 115V, 8W single intensity UV transilluminators are available, each with a built-in ethidium bromide emission filter. The FirstLight* FI-26X model offers a 302nm wavelength and a 25x26cm (9⁷/₈x10¹/₄") filter. The LM-26 model offers 302 and 365nm wavelengths, and a 21x26cm (8¹/₄x10¹/₄") filter. The LMS-26 model offers 254, 302, and 365 wavelengths, and a 21x26cm (8¹/₄x10¹/₄") filter.

Five scientific-grade, high resolution cameras are available with the EC3 systems. The Gel camera is noncooled and has 1.4 megapixels, 16 bit depth, 1360x1024 resolution, and 43% peak quantum efficiency. The Chemi camera is cooled to -28°C (-18.4°F) and has 2.0 megapixels, 16 bit depth, 1600x1200 resolution, and 56% peak quantum efficiency. The BioChemi camera is cooled to -28°C (-18.4°F) and has 4.2 megapixels, 14 bit depth, 2048x2048 resolution, and 5% peak quantum efficiency. The OptiChemi camera is cooled to -60°C (-76°F) and has 3.2 megapixels, 16 bit depth, 2184x1472 resolution, and 90% peak quantum efficiency. All cameras can be used in fluorescence, colorimetric, and chemiluminescent applications, except for the gel camera, which should not be used in chemiluminescent applications. The cameras fit securely into the topside chamber of the darkroom.

The light-tight darkroom enclosure features manual exterior controls, an overhead white LED light with high/low settings, a UV safety switch and timer, a full access door with a UV-blocking window, power indication lights on the top exterior, and an adjustable tray for chemi blots. The transilluminator is accessed via a sliding tray at the darkroom base.

The VisionWorks* LS image acquisition and analysis software is configured with the system and controls the motorized zoom lens, emission filter selection, light sources, and system power. It also provides tools for image capture, colony counting, and analysis of gels, plates, blots, and membranes. Specific capabilities include image enhancement, one-touch automated macros, extensive report generation, data export, advanced 1D lane analysis, and support for 21 CFR Part 11 compliance.

The optional BioLite Multispectral Source is a 150W quartz halogen visible light source designed for use with fiber optic bundles. It supplies a directed source for the illumination of samples and features a six-position mechanical dimmer permitting variable intensity. The closed optical path tightly controls the output spectrum, allowing for consistent, repeatable measurements with superior signal to noise. Each kit includes excitation and emission filters, a sample tray, and a visible light source via fiber optic bundles.

Specifications for UVP Imaging Sys EC3 410, LM-26 97-0278-01:

(Please note that the description and stock photo may not correspond to the specific model listed above)
