Code: VW-99M-230402V
MPN: 230402V

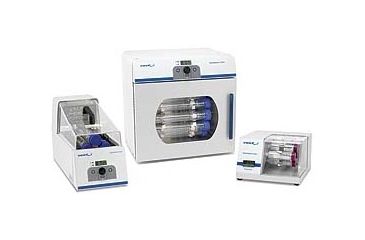

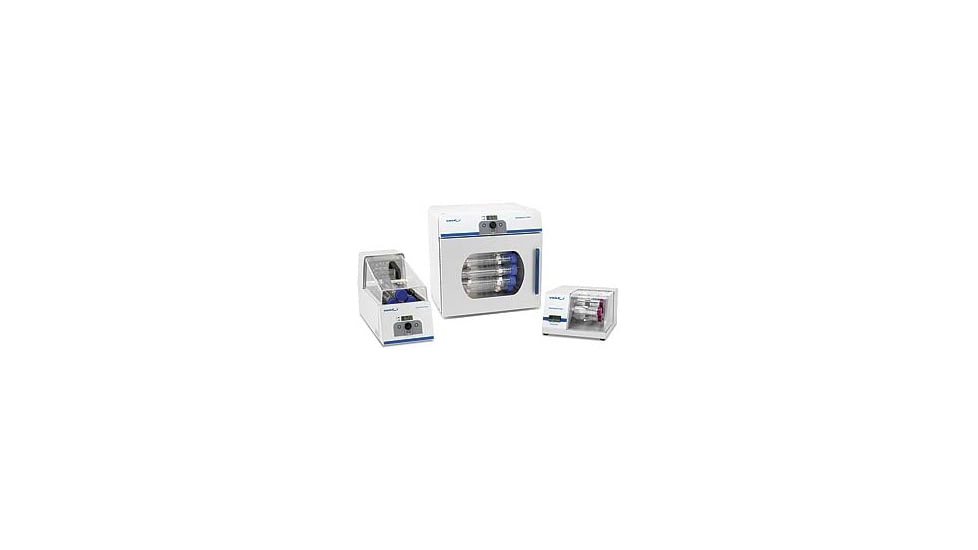

Vwr Oven Hybridization 115V 230402V is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Vwr Oven Hybridization 115V 230402V / 97005-252 is part of a wide selection of VWR Vacuum ovens. Combining excellent quality with an affordable price, the Vwr Oven Hybridization 115V 230402V / 97005-252 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Vacuum ovens please do not hesitate to contact our customer service for further guidance.![]()
Designed to provide rapid heat-up, excellent temperature stability, and efficient mixing for all types of hybridization and incubation applications.
Model 5430, a space-saving mini unit, holds up to four 50mL conical tubes. Optional multi-tube carousel (47746-116) includes clips to hold twelve 1.5mL or 2.0mL conical tubes, six 15mL conical tubes, or four 50mL conical tubes. Unit heats from ambient to 70°C in 25 minutes.
Models 230502V and 230502V-2 are medium-capacity units, holding up to four 35x300mm, or four 35x225mm, or eight 35x150mm, or eight 35x100mm bottles. Unit heats from ambient to 65°C in 20 minutes.
Optional multi-tube carousel (47746-114) holds forty 1.5mL or 2.0mL conical tubes, twelve 15mL conical tubes, or ten 50mL conical tubes.
Model 5420 and 5420-2 are high-capacity units, holding up to ten 35x300mm bottles or twenty 35x150mm bottles. Optional large bottle carousel (47746-110) holds four 70x220mm (750mL) bottles or four 55x180mm (400mL) bottles. Optional multi-tube carousel (47746-112) holds one hundred 1.5mL or 2.0mL conical tubes, thirty-five 15mL conical tubes, or thirty 50mL conical tubes. Optional microplate carousel (47746-118) holds 10 sealed standard microplates or deep well plates. Unit heats from ambient to 65°C in 30 minutes.
Model 5420 oven is UL and C-UL listed. Model 230502 oven is certified to UL 61010A-1 and CSA C22.2 No. 1010. Model 230502V-2 and 5420-2 ovens are CE marked.
Note: Model 5430 oven is not recommended for use with polystyrene tubes. Plates must be sealed before use in microplate carousels.
| Model 5430 | Model 230502V | Model 5420 | |
| and 230502V-2 | and 5420-2 | ||
| Temperature, | |||
| Maximum: | 80°C | 75°C | 100°C |
| Stability: | ±0.1°C | ±0.5°C | ±0.5°C |
| Accuracy: | ±0.5°C | ±0.5°C | ±0.5°C |
| Dimensions, | |||
| Outer: | 25.4W x 26.7L x 16.2H cm | 22.9W x 59.1L x 33H cm | 47.6W x 35.9L x 47.9H cm |
| (10 x 101/2 x 61/2") | (9 x 231/4 x 13") | (183/4 x 141/8 x 187/8") | |
| Chamber: | 15W x 15L x 14H cm | 17.1W x 32.4L x 22.2H cm | 33.7W x 24.8L x 24.1H cm |
| (6 x 6 x 51/2") | (63/4 x 123/4 x 83/4") | (131/4 x 93/4 x 91/2") |
| Â Description: | Model 5420 |
| RotationSpeed, rpm: | 5-60 |
| Â Electrical: | 115V, 60Hz, 320W |
| ShippingWeight, kg (lbs.): | 24.5 (54) |
| Unit: | Each |
