Tap Tap to Zoom
Code: WE-9OM-348969
MPN: 348969
Wheaton 5-POSITION Deck 348969 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Wheaton 5-POSITION Deck 348969 / 14231-476 is part of a wide selection of Wheaton Weight measuring instrument accessories. Combining excellent quality with an affordable price, the Wheaton 5-POSITION Deck 348969 / 14231-476 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Weight measuring instrument accessories please do not hesitate to contact our customer service for further guidance.![]()

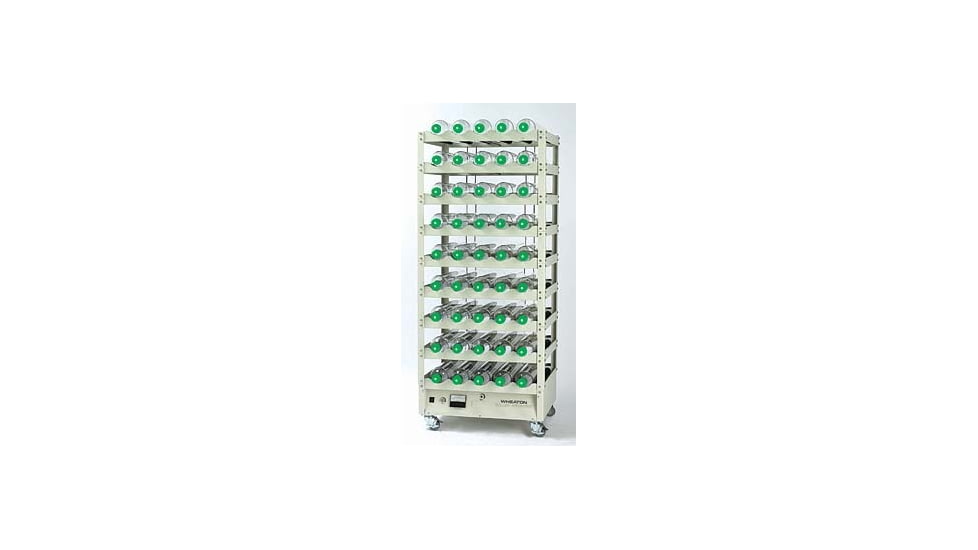

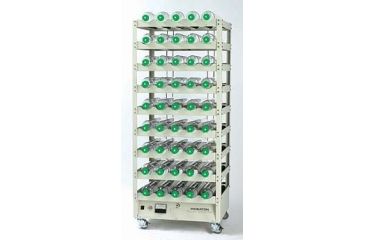

These modular cell-production apparatus provide a flexible system for monolayer cell cultures in standard roller bottles. Units accept bottles from 108 to 121mm in diameter and up to 550mm in length. Apparatus consists of a drive unit and a 5-position roller deck. The apparatus can be ordered with up to nine decks or additional decks can be added to expand an existing system to a maximum of nine decks. Each deck holds five bottles. All-position drive models have a position traction drive system in which each roller is individually driven. All-position drive can be field-retrofitted to standard-drive models using the all-position drive conversion kit (14231-478).
The apparatus provide up to 75,000cm2 total surface area for cell growth. A locking speed-control knob prevents accidental change in rotation rates. A powerful DC motor with soft-start speed control drives bottles through a series of durable nonslip belts; greaseless bearings prevent leaching and eliminate bearing seizures.
UL listed. CSA certified. CE marked.
| Description: | Additional Roller Deck, Factory Installed |
| Wheaton No.: | 348969 |
| Unit: | Each |
| Properties: | |
| Bottle Speed: | 0.25 to 5.3 rpm |
| Maximum Operating Temperature: | 40°C (104°F) |
| Electrical: | 120V, 50/60Hz, 35W |
| Dimensions, | |
| Unit with One Deck: | 31.8 kg (70 lbs.) |
| Additional Deck: | 9.5 kg (21 lbs.) |
| Weight | |
