Product Discontinued by Manufacturer
Wheaton Rotary Culture Apparatus Deck 348949 has been discontinued by Wheaton and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the PCR enclosures yourself to try and find the perfect replacement for you!
Product Info for Wheaton Rotary Culture Apparatus Deck 348949
Wheaton Rotary Culture Apparatus Deck 348949 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Wheaton Rotary Culture Apparatus Deck 348949 / 62404-304 is part of a wide selection of Wheaton PCR enclosures. Combining excellent quality with an affordable price, the Wheaton Rotary Culture Apparatus Deck 348949 / 62404-304 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our PCR enclosures please do not hesitate to contact our customer service for further guidance.![]()

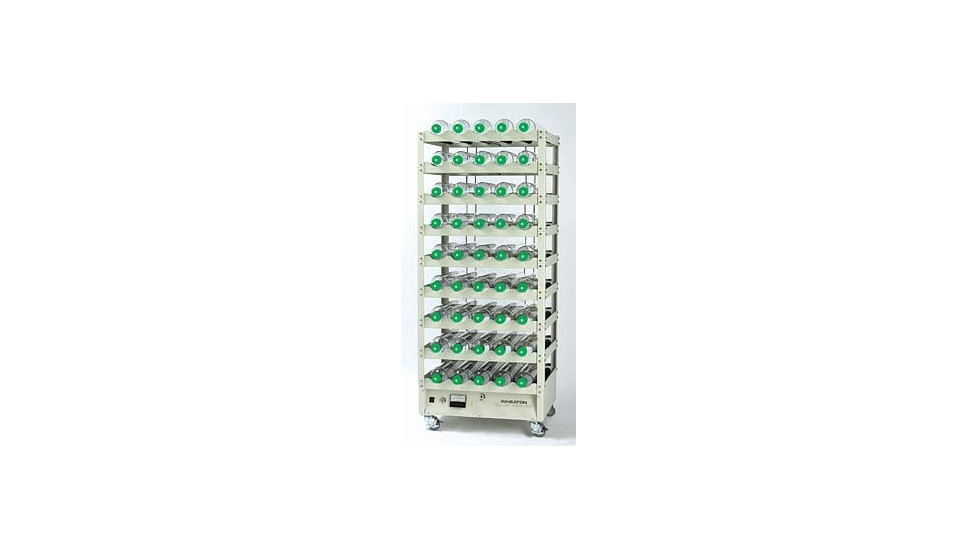

These modular cell-production apparatus provide a flexible system for monolayer cell cultures in standard roller bottles. Units accept bottles from 108 to 121mm in diameter and up to 550mm in length. Apparatus consists of a drive unit and a 5-position roller deck. The apparatus can be ordered with up to nine decks or additional decks can be added to expand an existing system to a maximum of nine decks. Each deck holds five bottles. All-position drive models have a position traction drive system in which each roller is individually driven. All-position drive can be field-retrofitted to standard-drive models using the all-position drive conversion kit (14231-478).
The apparatus provide up to 75,000cm2 total surface area for cell growth. A locking speed-control knob prevents accidental change in rotation rates. A powerful DC motor with soft-start speed control drives bottles through a series of durable nonslip belts; greaseless bearings prevent leaching and eliminate bearing seizures.
UL listed. CSA certified. CE marked.
Specifications for Wheaton Rotary Culture Apparatus Deck 348949:
| Description: | Additional Roller Deck, Field Retrofitted |
| Wheaton No.: | 348949 |
| Unit: | Each |
| Properties: | |
| Bottle Speed: | 0.25 to 5.3 rpm |
| Maximum Operating Temperature: | 40°C (104°F) |
| Electrical: | 120V, 50/60Hz, 35W |
| Dimensions, | |
| Unit with One Deck: | 31.8 kg (70 lbs.) |
| Additional Deck: | 9.5 kg (21 lbs.) |
| Weight | |
