Product Discontinued by Manufacturer
Fluid Metering Pumps Metering Valveless QSY1CSC-R479 has been discontinued by Fluid Metering and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Laboratory vacuum pumps yourself to try and find the perfect replacement for you!

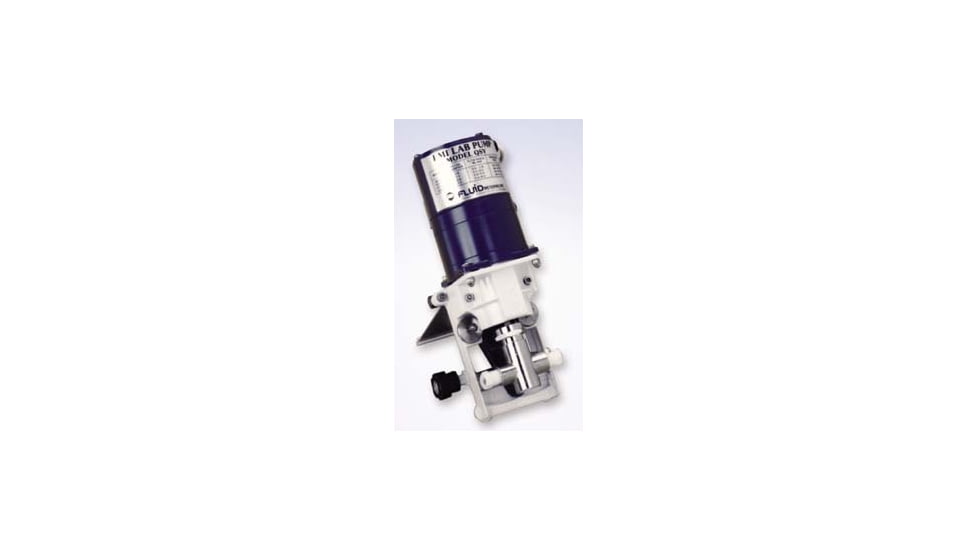

Product Info for Fluid Metering Pumps Metering Valveless QSY1CSC-R479
Fluid Metering Pumps Metering Valveless QSY1CSC-R479 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Fluid Metering Pumps Metering Valveless QSY1CSC-R479 / 82020-592 is part of a wide selection of Fluid Metering Laboratory vacuum pumps. Combining excellent quality with an affordable price, the Fluid Metering Pumps Metering Valveless QSY1CSC-R479 / 82020-592 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Laboratory vacuum pumps please do not hesitate to contact our customer service for further guidance.![]()
Metering pumps provide exceptional stroke-rate accuracy: better than ±1%, independent of load variations or fluctuations in line voltage. Synchronous drive motor operates at a consistent 72 strokes/min.
Units include a fluoropolymer resin adapter for use in low flow (<50mL/min.) applications for which minimum system dead volume and maximum chemical inertness are required. For use in preparative liquid chromatography applications, accessory kit 82020-604 includes low flow fittings, tubing, pulse dampener, and a dial indicator.
Pumps have a stainless steel cylinder case. Units with ceramic pistons have ceramic cylinder liners; stainless steel pistons have a carbon cylinder liner.
UL listed. CE marked.
Specifications for Fluid Metering Pumps Metering Valveless QSY1CSC-R479:
| Maximum Flow Rate,mL/min. (gal./hr.): | 23 (0.4) |
| FMI No.: | QSY1CSC-R479 |
| Unit: | Each |
| Properties: | |
| Maximum Pressure: | 6.9 bar (100 psig) |
| Electrical: | 115V, 60Hz |
| Dimensions: | 26.7H x 13.7W x 12.1D cm |
| Shipping Weight: | 4.1 kg (9 lbs.) |
