Unfortunately Gardner Denver Welch Gelmaster Gel Dryer Vac System 142601 is not listed by LabPlanet.You can also explore other items in the Laboratory vacuum pumps yourself to try and find the perfect replacement for you!
Gardner Denver Welch Gelmaster Gel Dryer Vac System 142601 is one of the many quality laboratory and scientific products we have to offer at very competitive pricing. Gardner Denver Welch Gelmaster Gel Dryer Vac System 142601 / 54994-060 is part of a wide selection of Gardner Denver Welch Laboratory vacuum pumps. Combining excellent quality with an affordable price, the Gardner Denver Welch Gelmaster Gel Dryer Vac System 142601 / 54994-060 can meet your scientific research needs while still offering a good value for a budget conscious end user. If you have any questions about any of our Laboratory vacuum pumps please do not hesitate to contact our customer service for further guidance.![]()

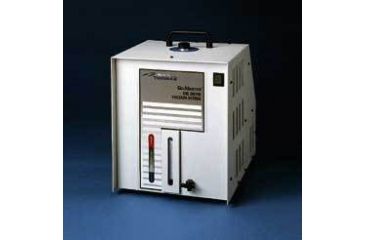

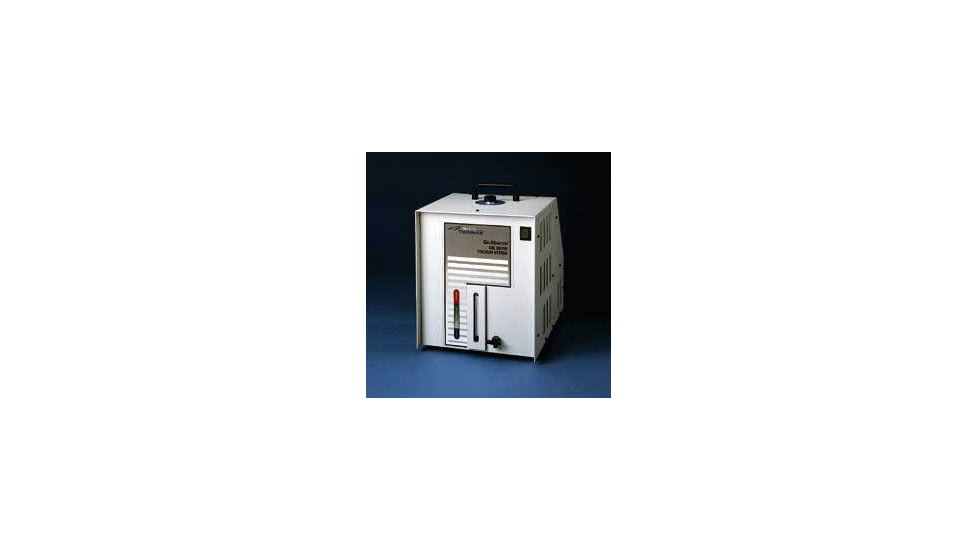

The GELMASTER gel dryer contains two pumps in one system: a room-temperature vapor pump/trap that condenses hot vapors, and a diaphragm pump that delivers a consistent vacuum for fast, smooth drying. The dual pumping feature makes this instrument as fast as a two-stage vacuum pump, yet faster than a conventional stand-alone diaphragm pump. The 1.5L capacity vapor pump/trap allows 10 to 15 gel drying runs before emptying via the drain valve.
Vapors are contained in the trapping medium rather than being pumped into the air of the laboratory. The medium is reusable, since it does not mix with the condensate, which helps to eliminate waste.
The 115V vacuum system is CSA certified. The 220V vacuum system is CE certified.
| Electrical: | 115V, 60Hz |
| Welch No.: | 142601 |
| Unit: | Each |
| Properties: | |
| Condensed Vapor Capacity: | 1.5 L |
| Inlet Port: | Accepts 9.5mm (3/8") I.D. vacuum hose |
| Dimensions: | 28.6W x 39.4D x 35.6H cm (111/4 x 151/2 x 14") |
| Weight: | 15.2 kg (33.5 lbs.) |
